Upon successfully scanning and identifying a supported device, the detected
information shown in Figure 6 will display showing the product type and the port
it is connected to. The ViewLink CATx is ready to flash with the new firmware.

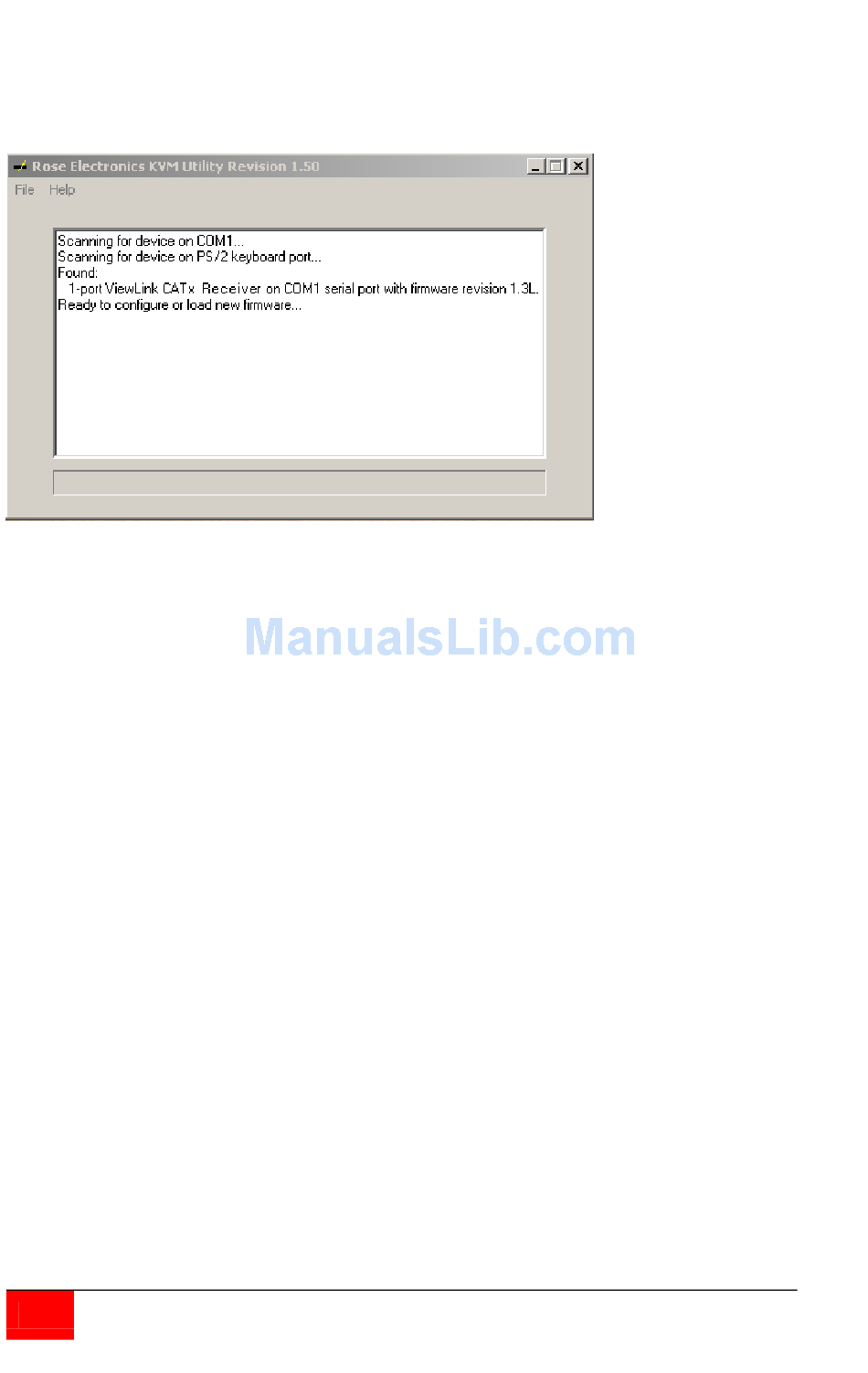

Figure 6. Flash scan
To load the updated firmware to the ViewLink CATx, click on "File", then "Load
New Firmware". Select the downloaded firmware update file to load. This will
be a file with .hex file extension. Figure 6 show the flash update screen which
shows the progress and, when finished, the status of the flash process. When
the message "New firmware successfully loaded on device" displays, the
ViewLink CATx product is updated and ready to use with the updated firmware.
10
VIEWLINK CATX INSTALLATION AND OPERATIONS MANUAL
