Rose electronics ViewLink CATx Features And Benefits

ViewLink CATx

Features and Benefits

Cable length compensation adjustments are automatically
performed
Video equalization and gain can be fine tuned with simple
keyboard commands
Automatic skew adjustments product a crystal clear
display no matter what cable type is used
Supports:
SVGA, VGA, XGA, RGB
PS/2 or USB keyboards and mice
Automatic Skew Adjustment (optional)
Extend a KVM station up to 1,000 feet away from a CPU
using CATx cable (CAT5, 5e, 6, or 7)
Video resolution up to 1920 x 1440 @ 60Hz
Compatible with Rose Electronics KVM switches
Operating system independent
Supports 35 different country specific operating systems
and keyboards
Uses a microprocessor to emulate the keyboard and
mouse. The keyboard and mouse on the remote unit do
not have to be connected for the PC to boot; only the local
unit must be connected to the PC
Made in USA
video modes
Connect the transmitter directly to a PCs
Video, keyboard, and mouse ports
MICRO-MINI KVM EXTENDER
ADVANCED KVM EXTENDER
Extend keyboard, video, and mouse up to
1,000' over CATx
Advanced automatic compensation and
equalization
Automated video skew adjustments (Option)
Models available for PS/2, USB, or both
Up to 1920 x 1440 video resolution
The ViewLink™ Advantage . . .

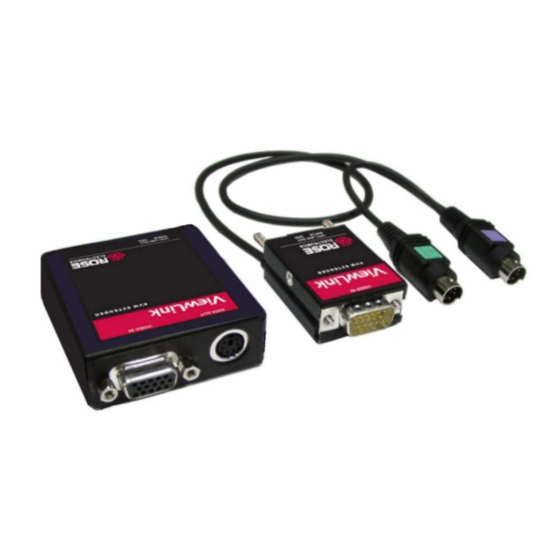

The ViewLink Micro-Mini CATx KVM extender is the
extender of choice for businesses big and small that
must control a computer from an extended distance.
The ViewLink Micro-Mini CATx allows you to position
a computer up to 1,000 feet away from the KVM
station using common twisted pair CATx cable. Use
any length of data cable up to 1,000 feet, ViewLink
Micro-Mini CATx KVM extender
calculate the cable length, set the gain and
equalization, and adjust the video skew (option) to
provide a crystal clear image. No jumpers to set or
knobs to adjust.
Remote access to your computers is made
convenient in a variety of situations. You can locate
users away from hazardous industrial environments;
locate computers away from areas vulnerable to theft
of hardware and data, reduce noise and heat, and
increase desk and floor space.
The ViewLink Micro-Mini CATx extender is available in
the following models:
PS/2 single access
USB single access
PS/2 and USB to PS/2 single access
PS/2 and USB to USB single access
Video only
Options:
Automatic video skew adjustments
W W W . R O S E . C O M
will automatically
