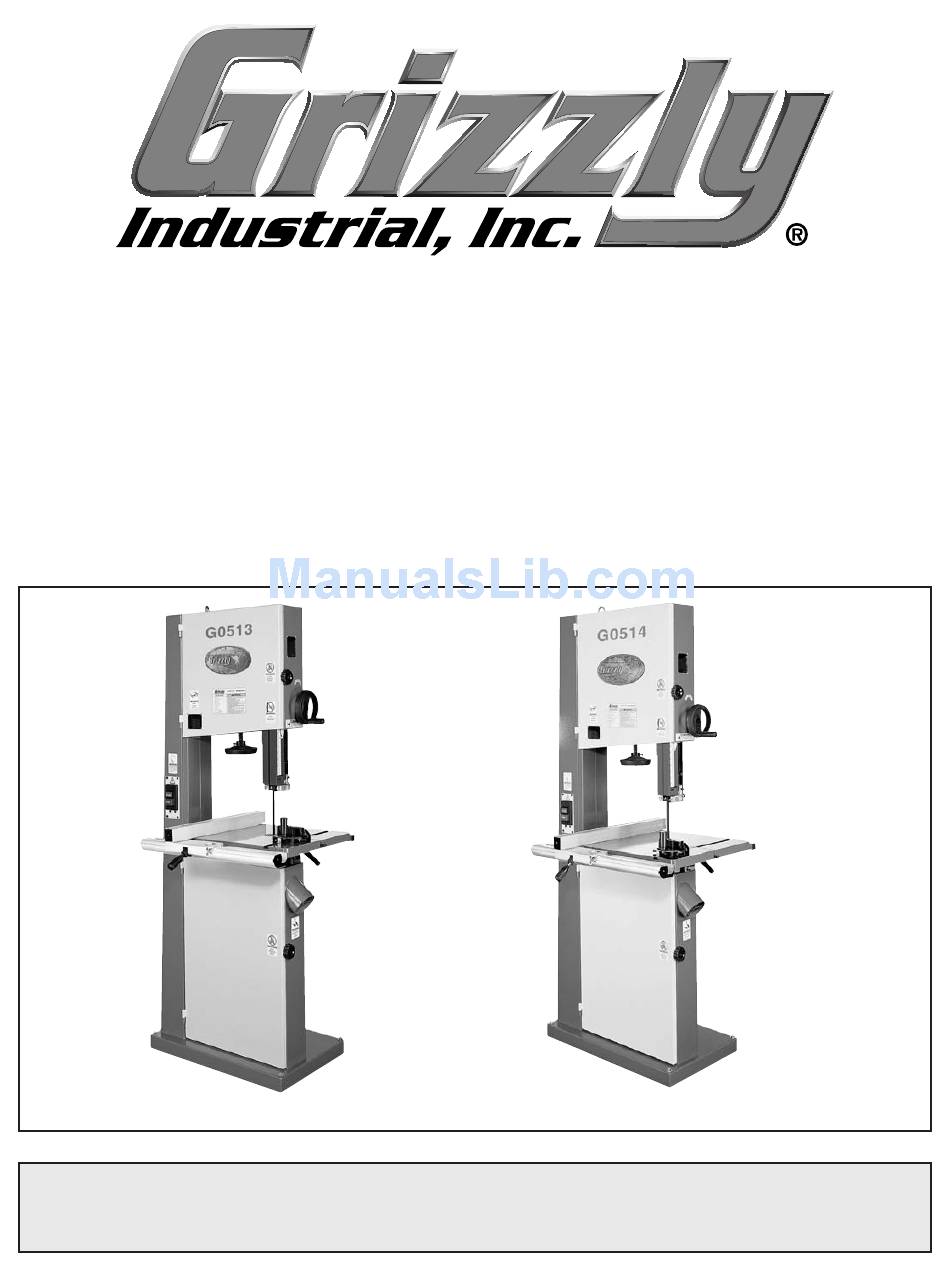

MODEL G0513/G0514
17" & 19" HEAVY DUTY
BANDSAWS
OWNER'S MANUAL
G0513
G0514
Copyright © august, 2002 By grizzly industrial, inC. revised noveMBer, 2010 (Bl)
WARNiNG: NO pORTiON Of THiS MANUAL MAY BE REpRODUcED iN ANY SHApE
OR fORM WiTHOUT THE WRiTTEN AppROVAL Of GRizzLY iNDUSTRiAL, iNc.
(For Models ManuFaCtured sinCe 8/02) #ds4607 printed in taiWan
