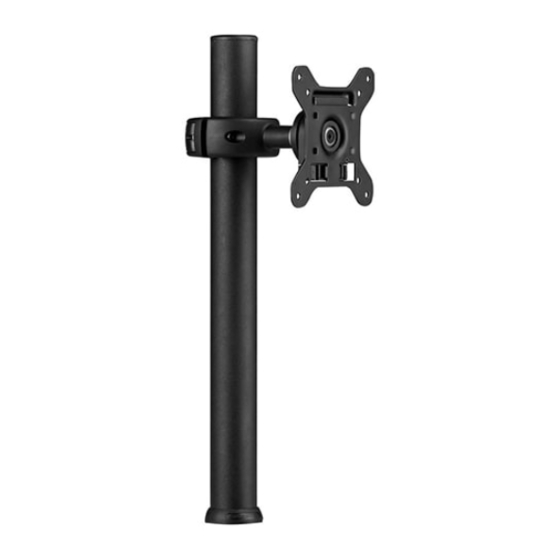

Atdec spacedec SD-DP-420 Installation Instructions

SD-DP-420
SD-DP-750
SD-DP-1150
Component Checklist
Quickshift Donut (x1)
VESA Plate (x1)
Donut Pole (x1)
The Donut Pole comes in three lengths
SD-DP-420 is 420mm (16.5")
SD-DP-750 is 750mm (29.5")
SD-DP-1150 is 1150mm (45.25")
IMPORTANT INFORMATION:
! IMPORTANT - Install Spacedec Donut Pole as per Installation Instructions.
! Each Quickshift Donut supports a maximum weight of 12kg (26.5lbs)
Donut Pole 420mm supports a total of 12kg (26.5lbs).
Donut Pole 750mm supports a total of 24kg (53lbs).
Donut Pole 1150mm supports a total of 36kg (79.5lbs).
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the component checklist and Hardware above.
Step 2. Mounting Options
Option A. Bolt Through
Drill a 10mm (0.38") hole
in the work surface at the
desired position and
assemble as shown.
Note: It is recommended
t h a t th e p o l e a s s e m b l y b e
m o u n t e d t o w a r d s th e r e a r
e d g e o f th e w o r k s u r fa c e .
Option B. De s k C l a m p (Suits desktop thicknesses of 12mm - 38mm [0.5" - 1.5"])
A t ta c h th e D e s k C l am p
B r a c k e t t o th e b o t t o m o f
th e P o l e A s s e m b l y u s i n g
th e M 8 x 3 0 m m S c r e w .
Tighte n Firm l y usi n g
th e 5 m m A l l e n K e y .
E n s u r e th e S p a c e d e c
L o g o o n th e B a s e
C a s t i n g i s fa ci n g th e
f r o n t a s s h o w n .
Desk Clamp
Pressure Plate (x1)
Desk Clamp
Bracket (x1)
TOOLS REQUIRED:
Power Drill
10mm (0.38") Drill Bit
Phillips-head Screwdriver
(Suits desktop thicknesses of 12mm - 40mm [0.5" - 1.5"])
E n s u r e c a b l e s l o t i s
fa ci n g th e b a ck
B a s e
Ca s t i n g
W o r k s u r fa c e
5 m m A l le n
Ke y
D e s k C l amp
B r a c k e t
M 8 x 3 0 m m
S c r e w
B a s e C a s t i n g
Ensure cable slot
is facing back

Installation Instructions

Donut Pole l 420mm / 750mm / 1150mm
Hardware
Bolt Through
M8 Desk Clamp
Washer (x1)
Screw (x1)
(Optional) Security Screw (x1)
5mm Allen Key (x1)
Cable Ball
NOTE: Quantity for:
P o l e A s s e m b l y
10mm (0.38")
h o l e
5 m m A l l e n K e y
Tighte n Firm l y
A t ta c h th e D o n u t P o l e
A s s e m b l y u s i n g th e
D e s k C l am p a s sh o w n .
N ot e: D e s k C l amp
suits 12mm (0.5")
- 38mm (1.5") thick
w o r k su r fa c e s .
A d j u s t th e h ei g h t o f
th e P r e s s u r e P l a t e
t o s u i t y o u r w o r k
su r f ac e .
M8x30mm
Screw (x1)
3mm Allen Key (x1)
Cable Clip
SD-DP-420 (x2 each)
Display Mounting
SD-DP-750 (x4 each)
SD-DP-1150 (x6 each)
M8 Desk
Clamp Screw
5mm
A l l e n K e y
Base Casting (x1)
M4x10mm (x4)
M4x12mm (x4)
M4x16mm (x4)
Screws
B o l t T h r o u g h
W a s he r
M 8 D e s k
C l am p S c r e w
P r e s su r e
P l at e
Work Surface
Tighten
Fi r m l y
