ACTi ACM-3701E Hardware User Manual

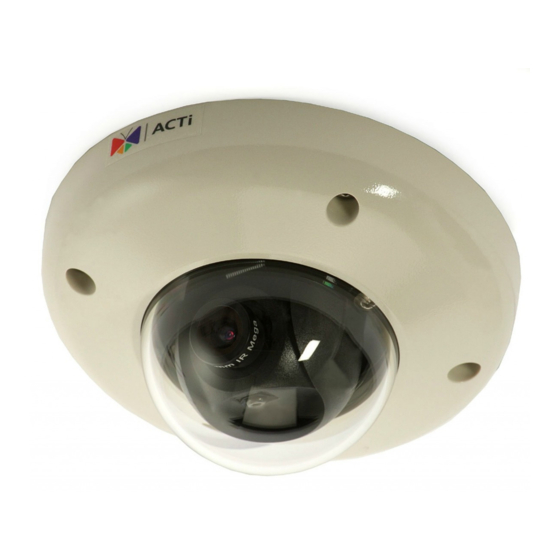

Megapixel ip vandal proof poe indoor mini dome
Hide thumbs Also See for ACM-3701E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Megapixel IP Vandal Proof PoE Indoor Mini Dome
ACM-3701E
Ver. 120803
Hardware User's Manual

Advertisement

Table of Contents
loading

Related Manuals for ACTi ACM-3701E

Summary of Contents for ACTi ACM-3701E

  • Page 1 Megapixel IP Vandal Proof PoE Indoor Mini Dome ACM-3701E Ver. 120803 Hardware User’s Manual...

  • Page 3: Trademarks

    PRECAUTIONS Read these instructions All the safety and operating instructions should be read before the product is operated. Heed all warnings All warnings on the product and in the instruction manual should be adhered to. The symbol indicates the following items, please carefully read the description next to each symbol.
  • Page 4 and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

  • Page 5: Table Of Contents

    Table of Contents PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Basic Connections _______________________________________________ 1-8 Installation Procedure ___________________________________________ 1-9 1.6.1 Ceiling Mount / Surface Mount __________________________________________ 1-9 1.6.2 Assembly of Field Installable Through Adaptor _____________________________ 1-12...

  • Page 7: Introduction

    INTRODUCTION 1.1 Package Contents ACM-3701E Product CD Warranty Card Drill Template Mount Screws Allen/Hex Key RJ45 Field Installable Feed Through Adaptor...

  • Page 8: Features And Benefits

    1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (SXGA, 1280x1024) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of MPEG4/MJPEG, and both formats offer megapixel resolution.
  • Page 9 powerful surveillance program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder. Schedule recording and manual recording keep every important image recorded in the local hard disk. Reliable and accurate motion detection with instant warning makes you responsive in every condition.

  • Page 10: Safety Instructions

    1.3 Safety Instructions Don’t use the power supply with other than what we revommend This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 11 Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

  • Page 12: Physical Description

    1.4 Physical Description Ethernet Indicator LED The LED will indicate ethernet speed and active states after IP camera has connected completely. Power LED The LED will light up after IP camera has successfully completed the boot process Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button.
  • Page 13 Model ACM-3701E Picture Type Rugged RJ-45 Connector Ethernet Port The IP device connects to the Ethernet via a female RJ-45 industrial connector. The Ethernet port supporting Power over Ethernet. Supporting NWAY, this IP device can auto detect the speed of...

  • Page 14: Basic Connections

    1.5 Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect this IP device’s ethernet port to an Ethernet (RJ45). IP device has only PoE built-in, you must regard it as a PD and connect it directly to a PSE device like PoE switch.

  • Page 15: Installation Procedure

    1.6 Installation Procedure Using the supplied allen/hex key, lossen the 4 screws holding the cover and remove it 1.6.1 Ceiling Mount / Surface Mount 1.6.1.1 Route the cable through a ceiling,use the drill template, and drill a Through-hole for cable withφ28.00 on the ceiling.
  • Page 16 1.6.1.2 Tighten the camera body to ceiling with 4 screws 1.6.1.3 Adjust the lens position and focus 1. Adjust position Using the supplied allen/hex key, lossen the locking screws, move the lens to the desired position, and gently retighten the locking screws.
  • Page 17 1.6.1.4 Replacing the cover, tighten the cover to ceiling with hold screws 1.6.1.5 Done NOTE: Camera shooting direction adjustment along with the cover installation. Also the tips for adjustment. 1-11...

  • Page 18: Assembly Of Field Installable Through Adaptor

    1.6.2 Assembly of Field Installable Through Adaptor Apply these accessory of field installable through adaptor to achieve system warterproof completely. 1.6.2.1 RJ45 Field installable Through Adaptor Connnect Industrial RJ-45 Ethernet hub using shielded cables is recommended.. Assemble the installable feed through adaptor Insert the RJ-45 cable Connect to the RJ-45 Connector 1-12...

  • Page 19: Product Specification

    1.7 Product Specification 1-13...
