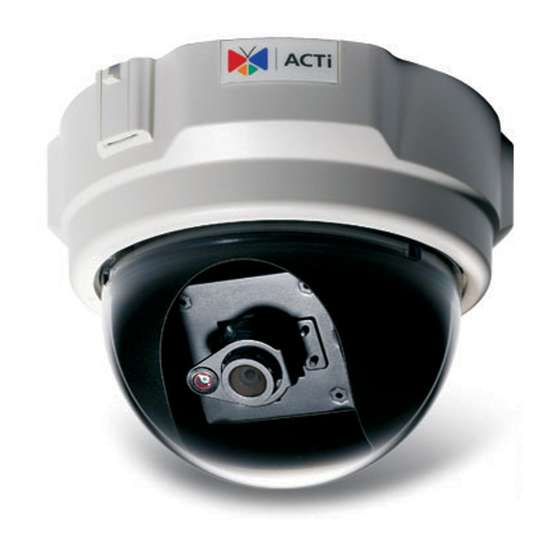

- Page 1 ACM-3001 IP PoE Fixed Dome Camera Hardware User’s Manual (DC 12V / PoE) Ver. 2012/3/12...
-
Page 2: Table Of Contents
ACM-3001 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Installation Procedure ..............11 Ceiling Mount ................11 Wall Mount ................... 14 Basic Connections ................. 17 Product Specification .............. -
Page 3: Precautions
ACM-3001 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
ACM-3001 Hardware User’s Manual 1. Introduction Package Contents ACM-3001 Product CD Accessories Warranty Card Drill Template Drill template www.acti.com... -
Page 5: Features And Benefits
ACM-3001 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (30 FPS @ VGA, 640x480) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
ACM-3001 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 7 ACM-3001 Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...
-
Page 8: Physical Description
ACM-3001 Hardware User’s Manual Physical description 1) Ethernet Port The IP PoE Fixed Dome Camera connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP PoE Fixed Dome Camera can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). - Page 9 ACM-3001 Hardware User’s Manual Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button. The red Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for another second and turn off again.
- Page 10 ACM-3001 Hardware User’s Manual •1 Digital Input - An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. The device will detect the change in digital input and transmit the signal to video surveillance servers.
-
Page 11: Installation Procedure
ACM-3001 Hardware User’s Manual Installation Procedure Ceiling Mount Use the drill template, and drill a hole with φ35 on the ceiling Tighten the plate to ceiling with M4*20 screws www.acti.com... - Page 12 ACM-3001 Hardware User’s Manual Connect cables through the hole on the ceiling and plate, or on the side of casing Fasten the camera to ceiling by turning clockwise direction www.acti.com...
- Page 13 ACM-3001 Hardware User’s Manual Insert the cables (Power/Network/DIO/Audio) through the mounting plate and connect to the camera. Then use the little strap in bundled accessory to fasten the network cable. 1.6.1.6 Done www.acti.com...
-
Page 14: Wall Mount
ACM-3001 Hardware User’s Manual Wall Mount Tighten wall mount bracket to the wall by 3 PAN Head Tapping screws 3-PAN HEAD SCREW TAPPING Tighten the plate to wall mount bracket with M4*10 screws, and connect all necessary cables through the hole on the plate and wall mount kit 2-FLAT HEAD SCREW TAPPING(M4x10 www.acti.com... - Page 15 ACM-3001 Hardware User’s Manual Note: that there’s a triangle mark on both plate and wall mount kit. Those triangle marks need to be fixed to the same direction. Insert the cables (power/Network/audio) through the mounting plate and connect to the camera.
- Page 16 ACM-3001 Hardware User’s Manual Fasten the camera to wall mount kit by turning clockwise direction Done www.acti.com...
-
Page 17: Basic Connections
ACM-3001 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP PoE Fixed Dome Camera to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 18: Product Specification
ACM-3001 Hardware User’s Manual Please refer our PoE Guide for more details on Power over Ethernet related concepts. Product Specification ACM-3001 Device Micron Progressive Scan CMOS Image Size 1/3 inch Effective Pixels 640(H) x 480(V) Color 0.5 Lux at F1.0 (2400 ºK, 30 IRE) IR Sensitivity Min. -
Page 19: Accessing Camera
ACM-3001 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP PoE Fixed Dome Camera will acquire network address by itself. - Page 20 ACM-3001 Hardware User’s Manual Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255.0 (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP PoE Fixed Dome Camera.
- Page 21 ACM-3001 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
- Page 22 ACM-3001 Hardware User’s Manual 10. Click “Apply” 11. Please go to Save Reboot, and click ”Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
- Page 23 ACM-3001 Hardware User’s Manual www.acti.com...
