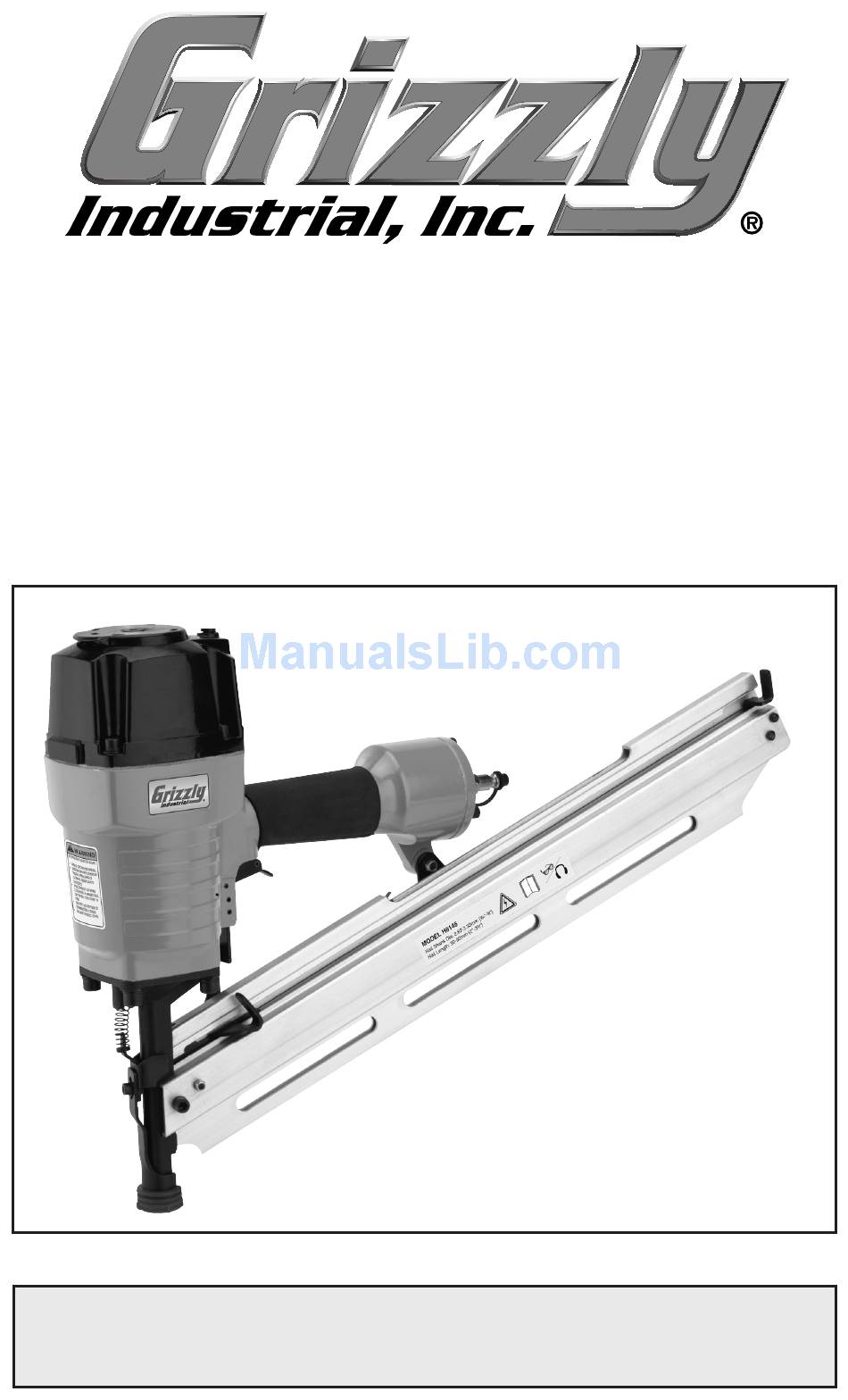

Page 1: Instruction Manual

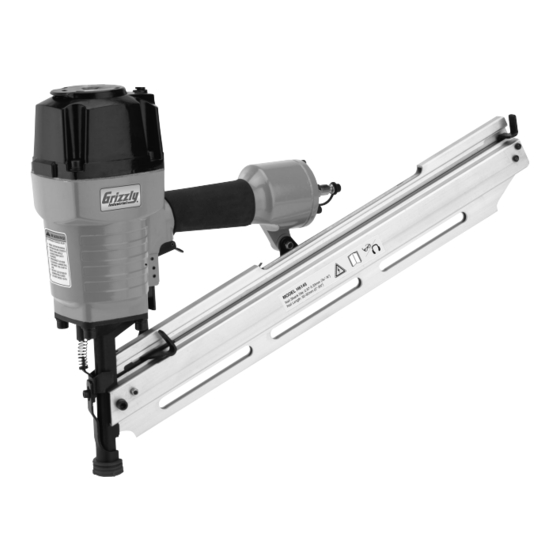

FRAMING NAILER MODEL H6145 INSTRUCTION MANUAL COPYRIGHT © FEBRUARY, 2005 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #BL6905 PRINTED IN CHINA... -
Page 2: Safety Instructions For Machinery
For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazard- ous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. - Page 3 RATED MACHINE Undersized cords overheat and reduce voltage. Replace extension cords if they become damaged. DO NOT use extension cords for 220V machinery. H6145 28° Clipped Head Framing Nailer CHILD AMPERAGE. ALWAYS DISCONNECT FROM POWER SOURCE BEFORE SERVICING MACHINERY. Make sure switch is in OFF position before reconnecting.
-
Page 4: Additional Safety Instructions For Nailers
COMPRESSED AIR RATING: Do not connect the nailer to com- pressed air that exceeds 120 PSI. CHECK VALVE: Do not use a check valve or any other fitting that allows air to remain in the tool. H6145 28° Clipped Head Framing Nailer... - Page 5 Failure to do so could result in seri- ous personal injury, damage to equipment or poor work results. H6145 28° Clipped Head Framing Nailer Never point this nailer at yourself or another person! Always pay attention to the direction this nailer is pointed.
-
Page 6: Contact Info
INTRODUCTION Foreword We are proud to offer the Grizzly Model H6145 28º Clipped Head Framing Nailer. This model is part of a growing Grizzly family of fine pneumatic tools. When used according to the guidelines set forth in this manual, you can expect years of trouble- free, enjoyable operation and proof of Grizzly’s commitment to customer satis-... - Page 7 Unpacking Your Model H6145 left our warehouse in a carefully packed box. If you discover the nailer is damaged after you have signed for delivery, please immediately call Customer Service at (570) 546-9663 for advice. Save the containers and all packing mate- rials for possible inspection by the car- rier or its agent.
-
Page 8: Compressed Air System
Compressed Air System The Model H6145 is designed to be oper- ated at 70-120 PSI using clean, dry, regu- lated, compressed air. DO NOT exceed the maximum operating pressure for your model. Before using your new nailer, regulate the air pressure on your air compressor to the minimum PSI for your model. -
Page 9: Safety Yoke
Serious injury may occur. H6145 28° Clipped Head Framing Nailer 5. Without pressing the trigger, depress the safety yoke mechanism against a scrap piece of wood that is clean and free of any knots, nails, or other foreign objects. - Page 10 ⁄ " Capacity: 100 Strip Angle: 28° NOTICE: A number of manufacturers' nails may fit the H6145. However, for best performance, we recommend you use Grizzly nail Models G2421-G2430. 1. DISCONNECT NAILER FROM THE AIR SUPPLY! 2. Gripping the nailer firmly, pull the mag- azine pusher back and engage the catch lever, as shown in Figure 3.
-
Page 11: Adjusting Depth
Adjusting Depth section on this page. H6145 28° Clipped Head Framing Nailer Adjusting Depth The nose of the gun houses a depth adjust- ment mechanism for setting the nail depth. - Page 12 DO NOT use dirty or damaged nails! Release the catch lever and let the pusher slide to the front of the maga- zine. H6145 28° Clipped Head Framing Nailer...
-
Page 13: Replacing Pistons/O- Rings
4. Remove the top cap. H6145 28° Clipped Head Framing Nailer 5. The top of the piston should now be visible inside the cylinder, which is housed in the head of the nailer. -
Page 14: Cleaning And Lubrication
Lubricating Special oil has been included with your new Grizzly nailer to help maintain its useful life. Place two to six drops of oil in the nailer air inlet (as shown in Figure 7) before every use, or after 2 hours of continuous use. - Page 15 H6145 PARTS BREAKDOWN H6145 28° Clipped Head Framing Nailer...
- Page 16 LOCK NUT M5-.8 PH6145086 RUBBER HANDLE CASE PH6145087 GASKET PH6145088 END CAP PSB15M CAP SCREW M5-.8 X 20 PLW01M LOCK WASHER 5MM PH6145091 1/4" NPT MALE CONNECT PH6145092 AIR PLUG COVER PW02M FLAT WASHER 5MM H6145 28° Clipped Head Framing Nailer...
-
Page 17: Troubleshooting
Tool runs slowly or has a loss of power. Fasteners frequently jam the nailer. Nailer does not fire. H6145 28° Clipped Head Framing Nailer CAUSE 1. O-rings in trigger valve housing are damaged. 1. Loose screws in housing. 2. Damaged O-ring. -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 19: Warranty Card
City____________________State________Zip_________ Phone Number____________E-Mail___________________FAX ____________ Model # H6145 28° Clipped Head Framing Nailer Serial#_______________Order #________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential. - Page 20 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
