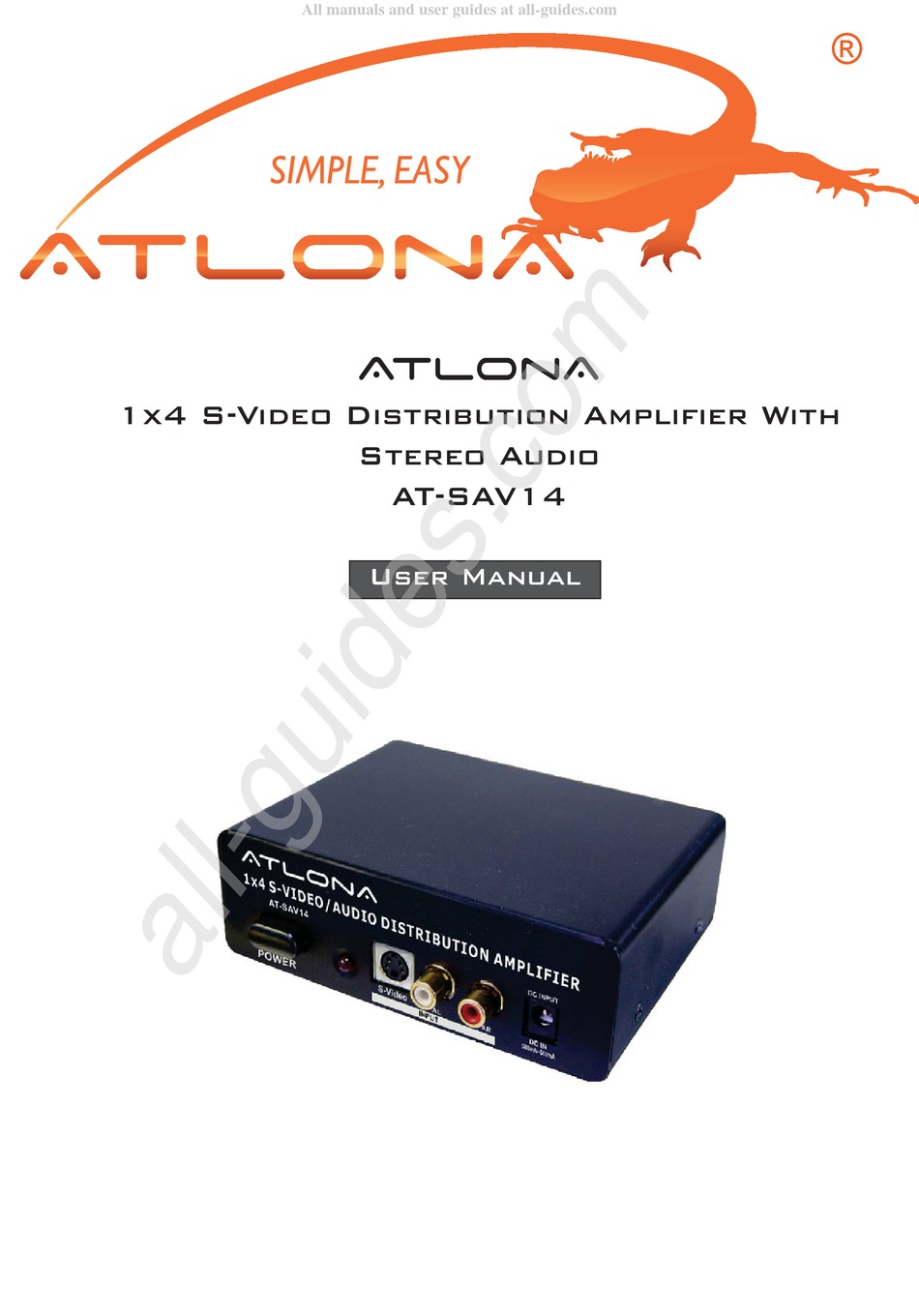

- Page 1 All manuals and user guides at all-guides.com AtlonA 1x4 S-Video Distribution Amplifier With Stereo Audio AT-SAV14 User Manual...
-
Page 2: Table Of Contents
..........2. Features .......... 6SHFL¿FDWLRQV 4. Package Contents ..........5. Panel Descriptions ..........5.1 Front Panel ..........5.2 Rear Panel ..........6. Connection and Installation ..........7. Safety Information ..........8. Warranty ..........9. Atlona Product Registration .......... -
Page 3: Introduction
S-Video/Stereo Audio application. With 1 x S-Video and Stereo Audio Input and 4 x S-Video Stereo Audio Outputs, the AT-SAV14 is capable of splitting signal from one VRXUFH WR IRXU VHSDUDWH GHYLFHV ZLWK FRPSDWLEOH LQSXWV :LWK D EXLOW LQ DPSOL¿HU WKLV XQLW KDV WKH ability to boost this signal great distances, while preventing both signal loss and picture degrada- WLRQ :LWK D PD[LPXP EDQGZLGWK RI 210+] WKH $76$9 ZLOO VXSSRUW VKDUS DQG KLJKO\ GH¿QHG... -
Page 4: Package Contents

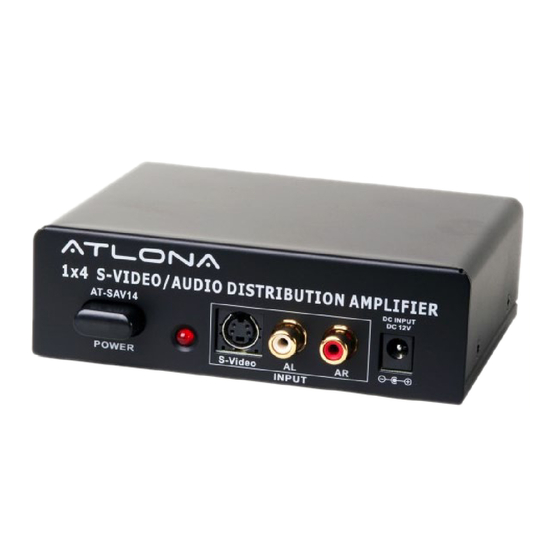

3. S-Video (4-pin) with Stereo Audio (2 RCA) Cable 4. Universal AC power adapter : 12VDC, 300mA ~ 660Ma (110-240V) $9 &RQQHFWLQJ &DEOH / IW P PANEL DESCRIPTIONS 1. Front Panel 1x4 S-Video Distribution Amplifier AT-SAV14 DC INPUT S-Video DC 12V INPUT 300mA~660mA 1. -
Page 5: Connection And Installation
1. Switch off all devices, including monitors. 2. Connect Desired source to the S-Video/Stereo Audio Input 3. Connect S-Video/Stereo Audio Outputs to desired Displays 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the source. 7. Power on AT-SAV14... -
Page 6: Safety Information
It may also cause damage to your the manufacturer could void the AT-SAV14. Opening the product will void user’s authority to operate this the warranty. equipment. -
Page 7: Warranty
1. LIMITED WARRANTY Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. -
Page 8: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
