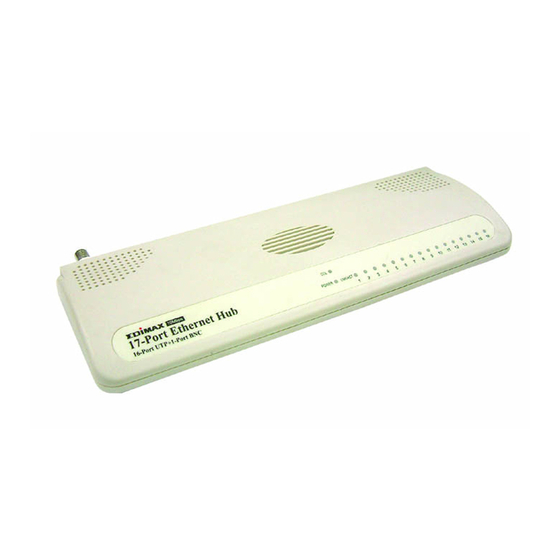

16-port utp +1-port bnc 10mbps hub ieee 802.3 ethernet hub

Advertisement

Quick Links

16-Port UTP +1-Port BNC
10Mbps Hub
IEEE 802.3
ER-5397P
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER-5397P and is the answer not in the manual?

Questions and answers

Summary of Contents for Edimax ER-5397P

  • Page 1 16-Port UTP +1-Port BNC 10Mbps Hub IEEE 802.3 ER-5397P User’s Manual...
  • Page 2: Fcc Warning

    FCC WARNING This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3: Packing List

    Packing List The package should contain the following items: • One Ethernet Hub • One Power Adapter • User’s Manual If any of the items are missing or damaged, please contact your local dealer. Introduction Congratulations on purchasing our high-performance 10Mbps Ethernet Hub. Featuring ease of installation, this hub helps hook your PCs together at a minute, communicating instantly over the net to share resources and printers.
  • Page 4: Specifications

    Specifications Standards: IEEE 802.3 10Mbps Ports: RJ-45 x 16 + BNC x 1 Hub LEDs: Power, Collision Port LEDs: Link and Activity Dimension: 1.18 x 11.4 x 3.94 in. (30 x 290 x 100 mm) Weight: 0.97lb. (440g) Power: External power adapter, 12VDC, 0.5A Operating Temperature: 32-131°F (0-55°C) Operating Humidity: 10-95% (Noncondensing) Emission: FCC Class B, CE Mark, C-tick...
  • Page 5: Left Side Panel

    Left side Panel Power Indicator This LED indicator is on when the hub is powered up. Collision Indicator This LED indicator blinks when the hub detects a collision on the network. Link/Activity Indicator These LEDs indicate the state of the data link. When the connection is okay, these LEDs remain on.
  • Page 6: Installation

    Installation 1. Operating Environment This hub must be installed and operated within limits of specified operating temperature and humidity. Do not place objects on top of the unit or obstruct any vents at the sides of the hub. Do not position the hub near any heating source such as heaters, radiators, or direct exposure to sun.
  • Page 7: Troubleshooting

    4. Connecting the power Plug the power cable into the hub, and connect it to an electrical outlet. Trouble-shooting 1. Power LED is not lit Check if the power adapter is properly connected to the power outlet. Make sure the DC power jack is firmly plugged into the power socket of the hub.
  • Page 8 the cable to both uplink ports. Check the network cable, and make sure the cable complies with EIA/TIA 568 specification. Use Category 3 or higher cables for 10Mbps hub connection. 4. Collision LED flashes constantly Remove all the network cables; connect the cables back one by one to isolate the source of the collision.
