- Page 1 ES-5104PH Quick Installation Guide 09-2015 / v1.1...
-
Page 2: Product Information
Package Contents Before you start using this switch, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): ES-5104PH PoE+ Switch Quick Installation Guide Power Adapter Power Cord ... -
Page 3: Operating Environment
LED Status Power: Green LED LNK/ACT: Green LED (Port 1 - Port 5) PoE: Orange LED (Port 1 – Port 4) Max: Orange LED (PoE Overload Alarm) Operating Environment This switch must be installed and operated within the limits of the specified operating temperature 0 - 40°C (32 - 104°F) and humidity (10 - 90% non-condensing). -
Page 4: Connecting To Network Devices
Connecting to Network Devices The RJ-45 ports on the switch support Auto-MDI/MDI-X which allows either straight-through or cross-over type cables to connect this switch to a workstation or switch. Connect one end of the network cable to the RJ-45 port on the side panel, and connect the other end of the network cable to the RJ-45 port on the network device. -
Page 6: Troubleshooting
TROUBLESHOOTING 1. Power LED is not lit. Check if the power cord is properly connected to the external power adapter and the power source. Make sure the DC power jack is firmly plugged into the power socket of the switch. 2. - Page 7 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
- Page 8 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 9 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1995/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE. Čeština: Toto zařízení...
-
Page 10: Declaration Of Conformity

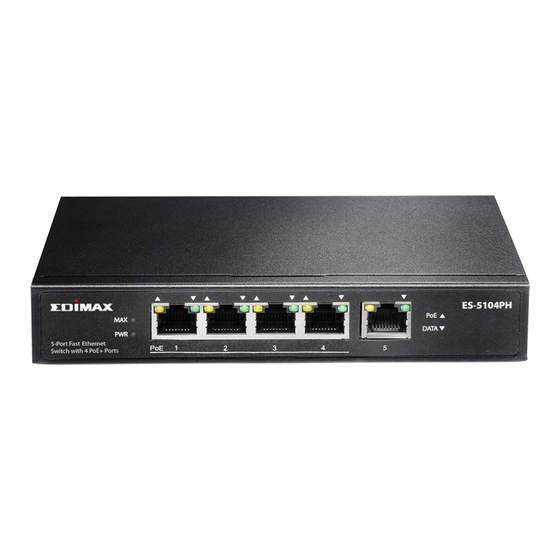

Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: ES-5104PH 5-Port Fast Ethernet Switch with 4 PoE+ Ports Model No.: ES-5104PH...
