Summary of Contents for Edimax ES-5104PH V2

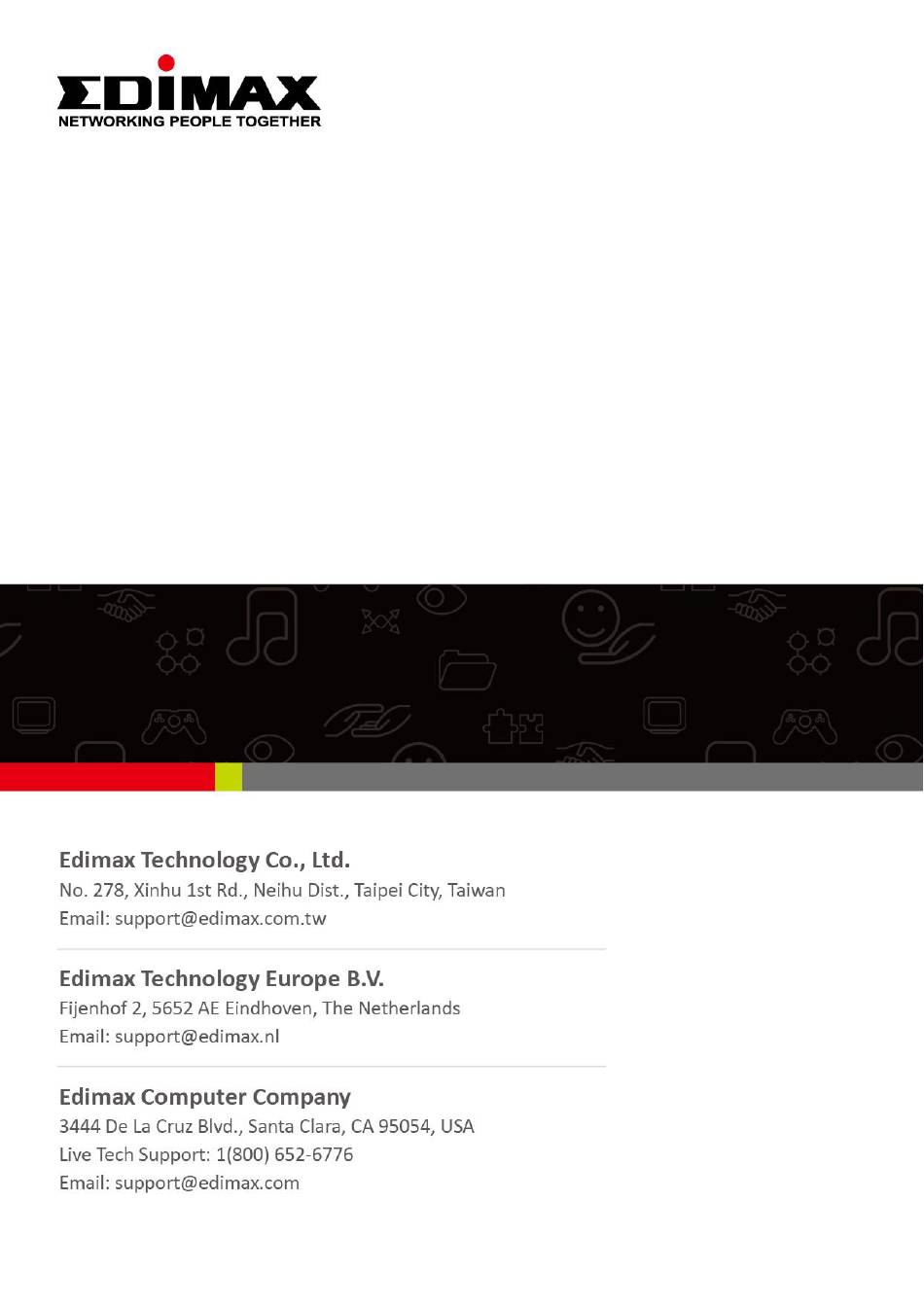

- Page 1 ES-5104PH V2 Quick Installation Guide 11-2020 / v2.2...
-
Page 2: Package Contents
Model No. ES-5104PH V2: 5-Port Fast Ethernet Switch with 4 PoE+ Ports Package Contents Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): Power Cord... -
Page 3: Hardware Overview

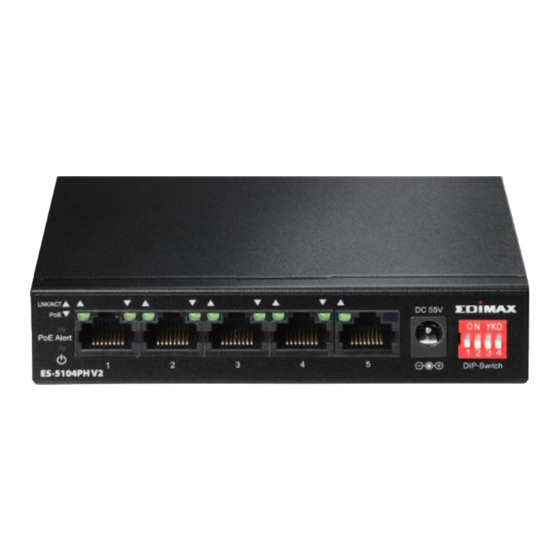

Hardware Overview Front Panel: Please refer to the following description for the front panel: ES-5104PH V2 DIP Switch Definition: The front pnael of PoE+ switch provies four pins DIP Switch. The detailed descriptions are shown nin the following table. DIP Switch Status... - Page 4 (VLAN) operate as a VLAN isolation switch and port 1 to port 4 will isolate respectively., port 1 to port 4 can only communicate with port 5 (uplink port). This mode makes the PoE+ switch (default) operate as a genral switch. This mode makes the PoE+ switch operate as a QOS switch, it follows the Video &...
-
Page 5: Operating Environment
Back Panel: Wall Mount Option The switch can be mounted on a wall. Measure the distance between the 2 mounting holes and screw a screw each into the wall. Carefully place the unit onto the wall by covering the caps of the screw with the mounting holes. -
Page 6: Connecting To Network Devices
- Take care to ensure the unit does not come into contact with water. Consider using a dehumidifier to reduce humidity and prevent moisture entering the unit. Connecting to Network Devices The RJ-45 ports on the switch support Auto-MDI/MDI-X which allows either straight-through or cross-over type cables to connect this switch to a workstation or switch. -
Page 8: Troubleshooting
TROUBLESHOOTING 1. Power LED is not lit. Check if the power cord is properly connected to the external power adapter and the power source. Make sure the DC power jack is firmly plugged into the power socket of the switch. 2. - Page 9 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
- Page 10 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 11 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/30/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/30/EU.
-
Page 12: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: 5-Port Fast Ethernet Switch with 4 PoE Ports Model No.: ES-5104PH V2...
