Page 1: User Manual
User Manual ES-5808PHG Gigabit 8-Port 802.3at PoE Web Smart Switch... -
Page 2: Table Of Contents
Content Content…………………………………………………………………………………I Introduction…………………………………………………………………………….. Product Overview……………………………………………………………………………….3 Web Management Feature…………………………………………………………………….3 Specification……………………………………………………………………………………..4 Mechanical……………………………………………………………………………………..4 Performance…………………………………………………………………………………..5 Package Contents……………………………………………………………………………...5 Hardware Description………………………………………………………………….6 Physical Dimensions / Weight………………………………………………………………...6 Front Panel……………………………………………………………………………………...6 LED Indicators…………………………………………………………………………………..6 Rear Panel………………………………………………………………………………………7 Hardware Installation…………………………………………………………………………..7 Software Description…………………………………………………………………..8 Login……………………………………………………………………………………………..8 Configuration……………………………………………………………………………………9 System ..…………………………………………………………………….……………..9 System Configuration……………………………………………...…………………...9 Ports ………….…………………………………………………..…………………………..11 Port Configuration ……………………...……………….…………………………..11 Vlan…………………………………….……………………….…………………………...12 Port Segmentation (VLAN) Configuration……………….……………………..13 Add a Vlan………………………………………………….……………...……………13... - Page 3 IGMP Snopping………………………………………………………………………….19 IGMP Configuration…………………………………………………………………19 Mirrioring…………………………………………………………………………………20 Moirrioring Configuration…………………………………………………………...20 QoS……………………………………………………………………………………….21 QoS Configuration…………………………………………………………………..22 QoS Mode: QoS Disabled………………………………………………………….22 QoS Mode: 802.1p…………………………………………………………………..22 QoS Mode: DSCP…………………………………………………………………...23 Power over Ethernet………………………………………………………………………..24 PoE Configuration………………………………………………………………..25 Storm Control……………………………………………………………………………25 Storm Control Configuration……………………………………………………….25 Monitoring…………………………………………………………………………………...26 Statistic Overview……………………………………………………………………… 26 Detailed Statistic………………………………………………………………………..27 LACP Status……………………………………………………………………………. 27 LACP Aggregation Overview……………………………………………………..27 LACP Port Status……………………………………………………………………28 RSTP Status……………………………………………………………………………..28 RSTP VLAN Bridge Overview……………………………………………………..28...
-
Page 4: Introduction
Introduction Product Overview This switch is a Web Smart Switch equipped with 8-ports PoE+ 10/100/1000BaseT(X) plus 2-port gigabit SFP. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increased continuously. The compact rigid 19”... -
Page 5: Specification
IGMP Status VeriPHY Ping Maintenance Warm Restart Factory Default Software Upload Configuration File Transfer Logout Specifications Standard IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Full-duplex Flow Control IEEE 802.3ad Link Aggregation IEEE 802.1Q VLAN IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1p QoS... -
Page 6: Performance
Product Dimensions/ Weight: 440 × 220 × 44 mm (L x D x H ) / 3.2kg Performance MAC Address: 8K Buffer Memory: 176 KB Jumbo Frames: 9.6K Transmission Method: Store and Forward Package Contents Before you start to install this switch, please verify your package that contains the following items: One PoE Gigabit Ethernet Switch One AC Power Cord... -
Page 7: Hardware Description

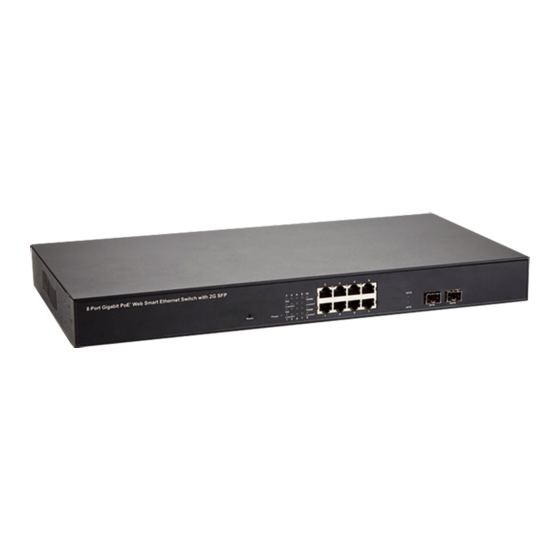

Hardware Description This part primarily presents hardware of this switch, physical dimensions and functional overview would be described. Physical Dimensions/ Weight 440 × 220 × 44 mm (L x D x H ) / 3.2kg Front Panel The front Panel of the Web Smart Switch consists of 8 gigabit RJ-45 ports＋2 gigabit SFP open slot. -
Page 8: Rear Panel
SFP Status Power Reset Rear Panel The 3-pronged power plug is placed at the rear panel of the switch right side shown as below. Hardware Installation Set the switch on a large flat space with a power socket close by. The flat space should be clean, smooth, level and sturdy. -
Page 9: Software Description
Software Description This part instructs user how to set up and manage the switch through the web user interface. Please follow the description to understand the procedure. At the first, open the web browser, and go to 192.168.2.1 site then the user will see the login screen. -
Page 10: Configuration
Figure 1-2 Configuration System System Configuration This page shows system configuration information. User can configure lots of information as Fig. 1-3: 9 ... - Page 11 Figure 1-3 MAC Address: Displays the unique hardware address assigned by manufacturer (default). S/W Version: Displays the switch’s firmware version. H/W Version: Displays the switch’s Hardware version. DHCP Enabled: Click the box to enable DHCP Fallback IP address: Manually assign the IP address that the network is using.
-
Page 12: Ports
issued by the switch to specified trap managers. You must specify trap managers so that key events are reported by this switch to your management station. SNMP Read Community: A community string that acts like a password and permits access to the SNMP database on this switch. Authorized management stations are only able to retrieve MIB objects. -
Page 13: Vlan
Figure 1-4-1 Figure 1-4-2 VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the same VLAN will receive traffic from the ones of the same VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. -
Page 14: Port Segmentation (Vlan) Configuration
devices are still plugged into the same switch physically. Port Segmentation (VLAN) Configuration VLAN ID: ID of configured VLAN (1-4096, no leading zeroes). VLAN Configuration List: Lists all the current VLAN groups created for this system. Up to 16 VLAN groups can be defined. VLAN 1 is the default untagged VLAN. -
Page 15: Vlan Configuration List
VLAN Per Port Configuration The 802.1Q Per Port Configuration page allows you to change the VLAN parameters for individual ports or trunks. You can configure VLAN behavior for specific interfaces, including the accepted frame types and default VLAN identifier (PVID). Each row of the table corresponds to one port or trunk; trunked ports cannot be configured individually;... -
Page 16: Aggregation
Only.” PVID: The PVID (Port VLAN ID) is associated with untagged, ingress packets. It is assigned to untagged frames received on the specified interface. The PVID has no effect on ports that have Packet Type set to “Tagged Only.” (Default PVID: 1) It is not possible to remove a port from VLAN 1 unless its PVID has been changed to something other than 1. -
Page 17: Lacp
LACP IEEE 802.3ad Link Aggregation Control Protocol (LACP) increases bandwidth by automatically aggregating several physical links together as a logical trunk and providing load balancing and fault tolerance for uplink connections. LACP Port Configuration Port: The port number. Enabled: Enables LACP on the associated port. Key Value: Configures a port's LACP administration key. -
Page 18: Rstp System Configuration
configuration message (BPDU frame). Number between 1-10 (default is 2). Max Age – The maximum time (in seconds) a device can wait without receiving a configuration message before attempting to reconfigure. That also means the maximum life time for a BPDU frame. Number between 6-40 (default is 20). - Page 19 Figure 1-8-2 Figure 1-8-3 Figure 1-8-4 18 ...
-
Page 20: Igmp Snopping
IGMP Snooping IGMP Snooping is the process of listening to IGMP network traffic. IGMP Snooping, as implied by the name, is a feature that allows a layer 2 switch to “listen in” on the IGMP conversation between hosts and routers by processing the layer3 IGMP packets sent in a multicast network. -
Page 21: Mirrioring
Mirroring Port Mirroring is used on a network switch to send a copy of network packets seen on one switch port (or an entire VLAN) to a network monitoring connection on another switch port. This is commonly used for network appliances that require monitoring of network traffic, such as an intrusion-detection system. -
Page 22: Qos
Figure 1-10-2 Quality of Service (QoS) In QoS Mode, select QoS Disabled, 802.1p, or DSCP to configure the related parameters. QoS Configuration Strict: Services the egress queues in sequential order, transmitting all traffic in the higher priority queues before servicing lower priority queues. WRR: Weighted Round-Robin shares bandwidth at the egress ports by using scheduling weights with default values of 1, 2, 4, 8 for queues 0 through 7, respectively. -
Page 23: Qos Mode: Qos Disabled
Figure 1-11-1 QoS Mode: QoS Disabled When the QoS Mode is set to QoS Disabled, the following table is displayed. Figure 1-11-2 QoS Mode: 802.1p Packets are prioritized using the 802.1p field in the VLAN tag. This field is three bits long, representing the values 0 - 7. When the QoS Mode is set to 802.1p, the 802.1p Configuration table appears, allowing you to map each of the eight 802.1p values to a local priority queue (low, normal, medium or high). -
Page 24: Qos Mode: Dscp
Figure 1-11-3 Figure 1-11-4 QoS Mode: DSCP DSCP: Packets are prioritized using the DSCP (Differentiated Services Code Point) value. The Differentiated Services Code Point (DSCP) is a six-bit field that is contained within an IP (TCP or UDP) header. The six bits allow the DSCP field to take any value in the range 0 - 63. -
Page 25: Power Over Ethernet
DSCP Configuration table to a common priority queue. Use Custom if you want to set each value individually. When the QoS Mode is set to DSCP, the DSCP Configuration table is displayed as shown below. Figure 1-11-5 Figure 1-11-6 PoE (Power over Ethernet) Configuration Power over Ethernet (PoE) is an advanced technology providing a whole new application aspect for networking products. -
Page 26: Poe Configuration
PoE Configuration Remote access and monitor the attached PD (Powered Device) status by using Enable/Disable function. PoE Enabled: POE of the port is able to supply power to the attached PD (Powered Device) PD Class: Detect the class of PD Delivering Power (W): Output power. -
Page 27: Monitoring
Figure 1-13-1 Enable Rate Limit: Click the check box to enable storm control. Rate (number of frames per second): The Rate field is set by a single drop-down list. The same threshold is applied to every port on the switch. When the threshold is exceeded, packets are dropped, irrespective of the flow-control settings. -
Page 28: Detailed Statistic
Figure 2-1 Detailed Statics Figure 2-2 LACP Status LACP Aggregation Overview Figure 2-3-1 27 ... -
Page 29: Lacp Port Status
Port: The port number. Port Active: Shows if the port is a member of an active LACP group. Partner Port Number: A list of the ports attached at the remote end of this LAG link member. Operational Port Key: Current operational value of the key used by this LAG. -
Page 30: Rstp Port Status
Fwd Delay: The maximum time (in seconds) the root device will wait before changing states (i.e., discarding to learning to forwarding). This delay is required because every device must receive information about topology changes before it starts to forward frames. In addition, each port needs time to listen for conflicting information that would make it return to a discarding state;... -
Page 31: Igmp Status
Protocol: Shows the spanning tree protocol functioning on this port, either RSTP or STP (that is, STP-compatible mode). IGMP Status IGMP Status IGMP Status shows the IGMP Snooping statistics for the whole switch. VLAN ID: VLAN ID number. Querier: Show whether Querying is enabled. Queries transmitted: Show the number of transmitted Query packets. - Page 32 Figure 2-6-1 Figure 2-6-2 Figure 2-6-3 31 ...
-
Page 33: Ping
Figure 2-6-4 Ping This command sends ICMP echo request packets to another node on the network. Ping Parameters Target IP Address: IP address of the host Count: Number of packets to send. (Range: 1-20) Time Out: setting the time period of host will be Ping Use the ping command to see if another site on the network can be reached. - Page 34 Figure 2-7-1 Figure 2-7-2 33 ...
-
Page 35: Maintenance
Figure 2-7-3 Maintenance Warm Restart Press Yes button to restart the switch, the reset will be complete when the power lights stop blinking. Figure3-1 Factory Default This function is to force the switch back to the original factory settings. To reset the switch, select “Reset to Factory Defaults”... -
Page 36: Software Upload
Software upload Select “Upgrade Firmware” from the Tools drop-down list then click on the “Browse” button to select the firmware file. Click the APPLY button to upgrade the selected switch firmware file. User can download firmware files for user’s switch from the Support section of your local supplier. Figure 3-3 Configuration File Transfer Configuration file transfer allows you to save the switch’s current configuration... -
Page 37: Reset Button For The Factory Default Setting
Reset button for the factory default setting Please take the following steps to reset the Web Smart Switch back to the original default: Step 1: Turn on the Web Smart Switch Step 2: Press and hold the reset button continuously for 5 seconds and release the reset button.
