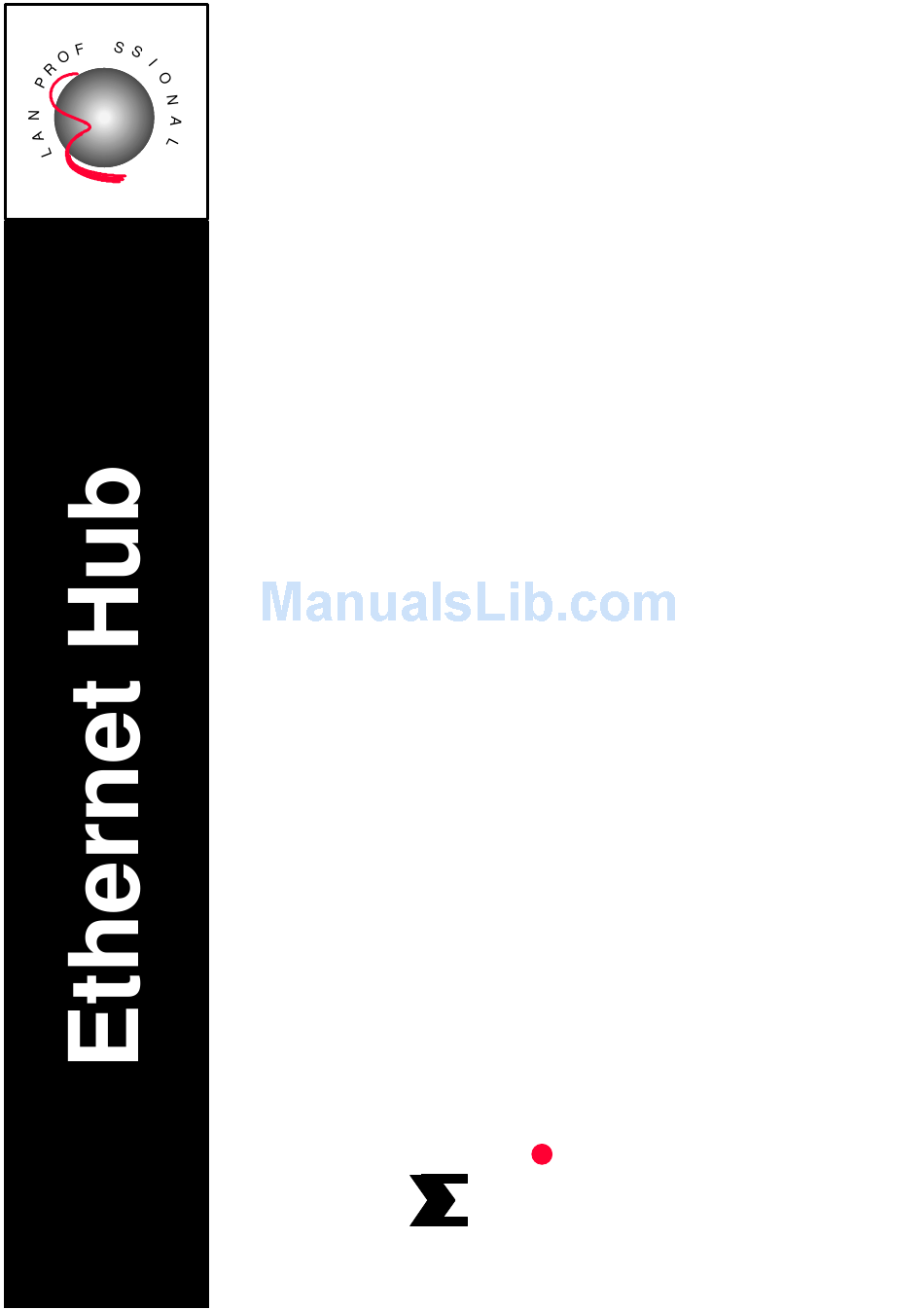

    18-Port Rackmount Ethernet Hub ER-5398S User ’ s Manual DIMAX...
  • Page 2: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the instructions provided with the equipment, may cause interference to radio and TV reception. The equipment has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a commercial environment.
  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction ...1 Chapter 2 Features & Specifications ...2 Chapter 3 Package Contents ...3 Chapter 4 Physical Description ...4 Chapter 5 Installation ...6 Chapter 6 Trouble-shooting ...9...
  • Page 4: Chapter 1 Introduction

    Congratulations on your purchase of Edimax’s 18-port rackmount Ethernet 10Base-T hub - ER-5398S. Designed to meet small and large 10Base-T network requirements, ER-5398S is built with 16 RJ-45 ports and two extra auto-detect AUI /BNC coaxial ports for cascading other 10Base-T hubs, mixing with thin or thick coaxial segments, or connecting to fiber backbone through fiber transceivers.
  • Page 5: Chapter 2 Features & Specifications

    Features & Specifications (1) Features n Comply with IEEE 802.3 10Base-T, 10Base-2 and 10Base-5 Ethernet Standards. n Support sixteen RJ-45 connectors for 10Base-T connection and two auto-detect 10Base-2 BNC/10Base-5 AUI ports for mixed media network environment. n Built-in uplink port for easy connection to another hub using regular straight- through cable.
  • Page 6: Chapter 3 Package Contents

    Package Contents n 18-port rackmount Ethernet Hub n One power cord n Two T-Connectors n Rackmount accessories n User’s manual ER-5398 PORT/10 Mbps 10 BaseT Ethernet D I M A X Link/Rx Jabber Collision Partition Power Figure 3-1 Package contents 15X 16MDI-X 16MDI...
  • Page 7: Chapter 4 Physical Description

    Physical Description (1) Panel LED Panel PORT/10 Mbps 10 BaseT Ethernet Link/Rx Jabber Collision Partition Power Collision LED Jabber Jabber Power LED BNC 2 AUI 2 BNC Port Ports ER-5398 DIMAX Link/Receive LED PORT/10 Mbps 10 BaseT Ethernet Link/Rx Collision Partition Power Partition LED...
  • Page 8 (2) LED Power Collision Jabber Link/Rx (Link/Receive) Partition Color Status Green Collision detected in this segment Yellow Jabber detected in this segment A valid link is established Green Flash Data packets received This port is patitioned This port is working normally Table 4-1 LED description Description Power is supplied...
  • Page 9: Chapter 5 Installation

    Connect one end of the network cable to any of the RJ-45 ports on the front panel of ER-5398S, and connect the other end of the network cable to the RJ-45 port of the network device. The network cables must comply with EIA/TIA 568 specifications and minimum Category 3 standard for 10Mbps data transmission.
  • Page 10 T-connector as illustrated in Figure 5-3. If the ER-5398S is at either end of the coaxial segment, make sure terminate the open end of T-connector with a 50-ohm terminator. When using the AUI port, firmly attach the AUI transceiver to the AUI port and secure the transceiver into the socket.
  • Page 11: Connecting The Power

    5. Connecting the power Connect the power cord to the power socket on the rear panel of the unit. Connect the power cord to the power outlet and turn on power switch. The green Power LED on the front panel should be lit.
  • Page 12: Chapter 6 Trouble-Shooting

    Make sure the power switch on the hub is turned ON. 2. LNK/Rx LED is not lit after connecting to an active workstation l Check the power switch of the network devices attached to the hub; make sure they are turned ON.
  • Page 13 5. Partition LED is lit l Check the connected devices. The hub will automatically partition a defective Ethernet device which causing excessive errors. 6. Collision LED is constantly flashing l Remove all the network cables; connect the cables back one by one to isolate the source of the collision.
