- Page 1 ES-3305P / ES-3308P / ES-3316P Quick Installation Guide 09-2012 / v1.0...
- Page 2 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co.,...

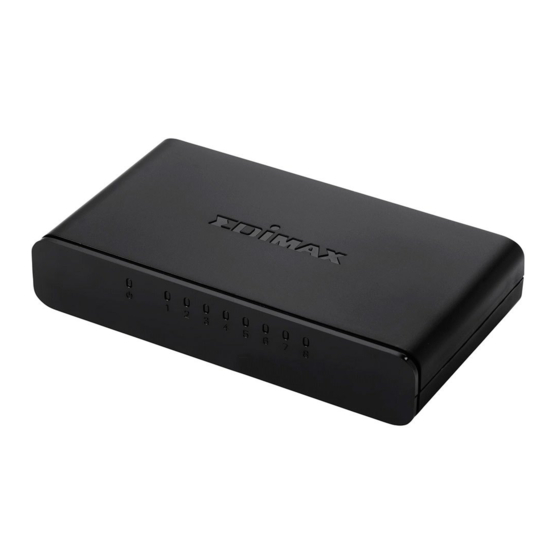

- Page 3 PRODUCT INTRODUCTION Model: ES-3305P: 5 Port Fast Ethernet Desktop Switch ES-3308P: 8 Port Fast Ethernet Desktop Switch ES-3316P: 16 Port Fast Ethernet Desktop Switch Package Contents Before you start using this switch, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): ...
-
Page 4: Operating Environment
LED Status: LED Name Light Description Status Switch is on Switch is off Corresponding port is connected LNK/ACT Corresponding port is not connected Flashing Corresponding port is active and transferring /receiving data. Back Panel ES-3305P 5V DC Power Port RJ-45 Ports 1 - 5 ES-3308P 5V DC Power Port RJ-45 Ports 1 - 8... - Page 5 - Do not position the unit near any heating source such as a heater, radiator or in direct exposure to sun. - Take care to ensure the unit does not come into contact with water. Consider using a dehumidifier to reduce humidity and prevent moisture entering the unit.
- Page 6 TROUBLESHOOTING 1. Power LED is not lit Check if the power cord is properly connected to the external power adapter and the power source. Make sure the DC power jack is firmly plugged into the power socket of the switch. 2.
- Page 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A/B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
