- Page 1 ES-5500M V2 / ES-5800M V2 Quick Installation Guide 05-2012 / v1.0...
- Page 2 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co.,...

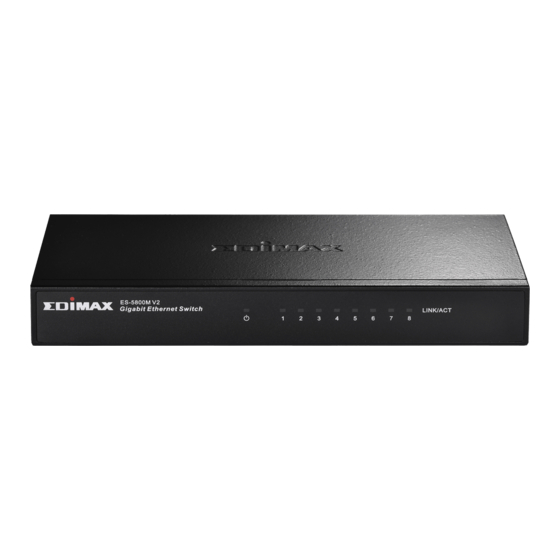

- Page 3 PRODUCT INTRODUCTION Model no.: ES-5500M V2: 5-Port Gigabit Desktop Switch ES-5800M V2: 8-Port Gigabit Desktop Switch Package Contents Before you start using this switch, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): ...
- Page 4 Back Panel ES-5500M V2 ES-5800M V2 Green: High-priority QoS ports Yellow: Medium-priority QoS ports Gray: Low-priority QoS ports...
- Page 5 1. Operating Environment This switch must be installed and operated within the operating limits of temperature (0 to 40°C, 32 to 104°F) and humidity (10 to 90% non-condensing). Do not place objects on top of the unit. Do not obstruct any vents on the sides of the unit. ...
- Page 6 Troubleshooting 1. Power LED is not lit Check if the power cord is properly connected to the plug and the power outlet; make sure the power cord is firmly plugged into the power socket of the switch. 2. LINK/ACT LED is not lit when connect to devices ...
- Page 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
