Summary of Contents for Nilfisk-Advance C 120.3

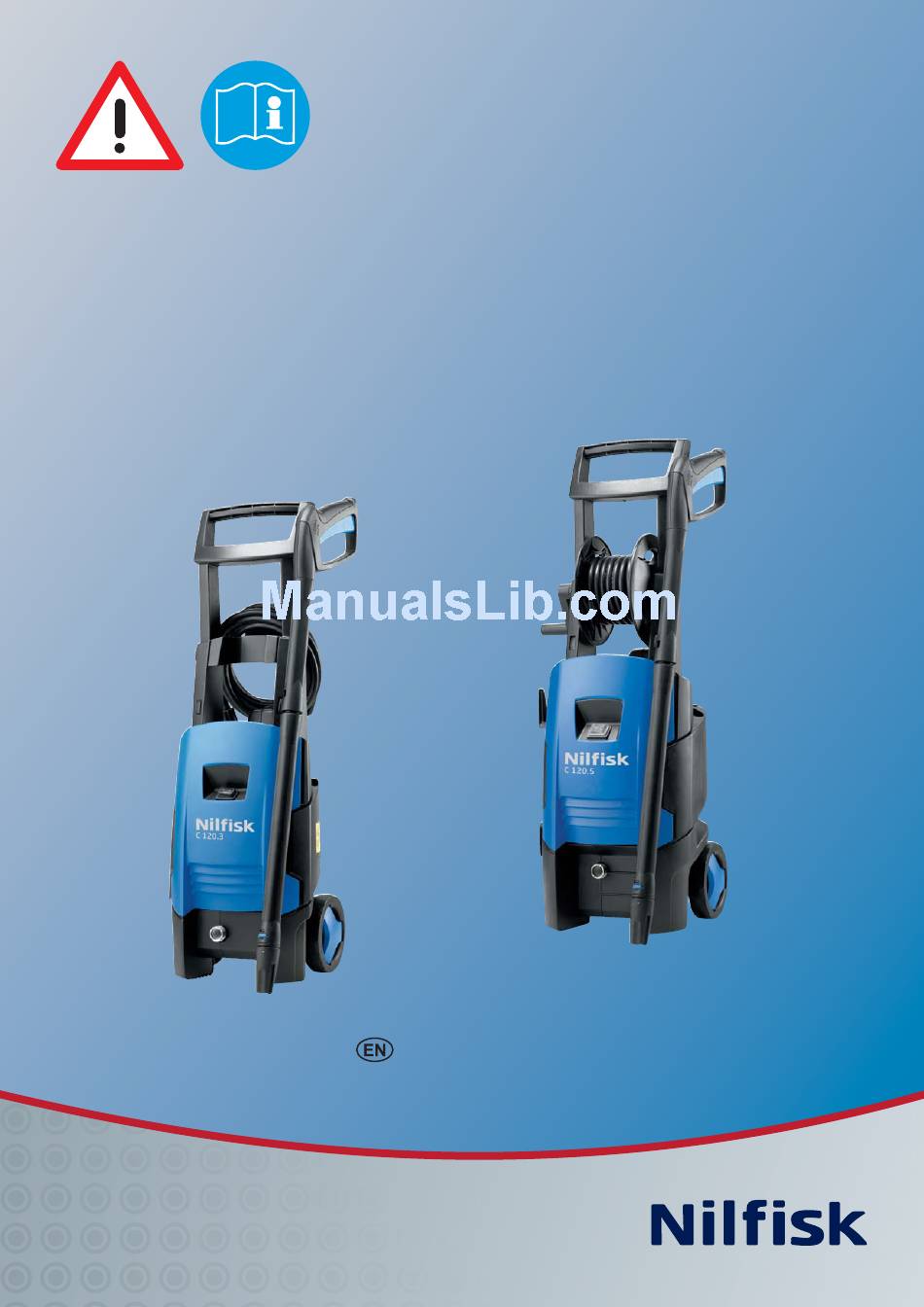

- Page 1 Nilfi sk C 120.3 Nilfi sk C 125.3 Nilfi sk C 130.1 X-TRA User Manual...
- Page 2 Copyright © 2012 Nilfisk, Division of Nilfisk-Advance A/S...
-
Page 3: Table Of Contents
Nilfisk C 120.3 / C 125.3 / C 130.1 Index 1 Safety precautions and warnings ..........3 2 Description ................5 3 Before you start using your pressure washer ......6 4 Operating your pressure washer ..........7 5 Fields of Application and working methods ......9 6 After using your pressure washer ...........11... - Page 4 Nilfisk C 120.3 / C 125.3 / C 130.1 and couplings are important dimensions. sure washer must be at least for the safety of the appli- 10 metres to absorb possible 1.0 mm² max. 12.5 m ance. Only use hoses, fi ttings pressure peaks (min diameter 1.5 mm²...
-
Page 5: Description
Nilfisk C 120.3 / C 125.3 / C 130.1 2 Description 2.1 Application This high-pressure washer has the high-pressure washer for been developed for domestic vaious cleaning jobs. use within: Only use the high-pressure - Car, motorbike, boat, cara- washer for purposes described van, trailer, patio/drive/fl... -
Page 6: Before You Start Using Your Pressure Washer
Nilfisk C 120.3 / C 125.3 / C 130.1 3 Before you start using your pressure washer 3.1 Mounting of trolley 1. Mount the trolley handle (12) handle and hose hook on the machine. 2. Mount the hose hook (14) on the handle. -
Page 7: Operating Your Pressure Washer
Nilfisk C 120.3 / C 125.3 / C 130.1 3.5 Mounting of high pres- Attach the high pressure hose sure hose (4) to the spray gun (7). Detach the high pressure hose by pressing the pawl (A). 4 Operating your pressure washer 4.1 Connection of high pres-... - Page 8 Nilfisk C 120.3 / C 125.3 / C 130.1 4.3 Water connection An ordinary 1/2" garden hose of IMPORTANT! min. 10 m and max. 25 m will Only use water be suitable. without any impurities. If there is a risk of running sands in the inlet water (i.e.
-
Page 9: Fields Of Application And Working Methods
Nilfisk C 120.3 / C 125.3 / C 130.1 4.5 Start the machine (when The washer can take in water 1. Place the other end of the connected to open con- from a rain water tank as an water hose in the water tank. - Page 10 Nilfisk C 120.3 / C 125.3 / C 130.1 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents.
-
Page 11: After Using Your Pressure Washer
Nilfisk C 120.3 / C 125.3 / C 130.1 6 After using your pressure washer 6.1 Storing the washer The machine should be sto- 3. Stop the machine, unplug red in a frost-free room! and wind up hose and cable. - Page 12 Nilfisk C 120.3 / C 125.3 / C 130.1 6.3 Storage of accessories The standard accessories C 130.1 X-TRA C 120.3 C 125.3 (spray gun, spray lance, noz- zles and foam sprayer) can be stored on the pressure washer. The nozzle cleaning tool can also be stored on the product.
-
Page 13: Maintenance
Nilfisk C 120.3 / C 125.3 / C 130.1 7 Maintenance WARNING! Always disconnect To ensure a long and problem the electrical plug from the free working life, please take socket prior to maintenance or the following advice: cleaning. Wash out water hose, high... - Page 14 Nilfisk C 120.3 / C 125.3 / C 130.1 7.3 Cleaning of machine The machine should be kept vents clean so as to let cooling air pass freely through the ma- chine vents. 7.4 Greasing of couplings To ensure an easy connec-...
-
Page 15: Trouble Shooting
Nilfisk C 120.3 / C 125.3 / C 130.1 8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. -
Page 16: Further Information
Nilfisk C 120.3 / C 125.3 / C 130.1 9 Further information 9.1 Recycling the washer Make the old cleaner unusable As specifi ed in European Direc- immediately. tive 2002/96/EC on old electri- cal and electronic appliances, 1. Unplug the cleaner and cut used electrical goods must the electric cable. - Page 17 Nilfisk C 120.3 / C 125.3 / C 130.1 9.3 Accessories Only use original accessories. Click & Clean Special nozzle for enameled surfaces. Optimal distance: 30 Car nozzle - 50 cm. Click & Clean 90° angled special nozzle for undercarriage and wheel arches.
- Page 18 Nilfisk C 120.3 / C 125.3 / C 130.1 Detergents Stone & Wood Cleaner For fl agstones, brick- and woodwork. Suitable for moss and algae. Plastic Cleaner For plastic and synthetic materials such as garden furniture. Metal Cleaner For cleaning of metal such as garden tools.
-
Page 19: Main Technical Data
Nilfisk C 120.3 / C 125.3 / C 130.1 10 Main Technical Data Type C 120.3 C 125.3 C 130.1 Electrical Specification Rated voltage Rated frequency Rated power consumption 1,650 1,800 1,700 Current Class I/ Protection class Class II Class II... -
Page 20: Eu Declaration Of Conformity
Nilfisk C 120.3 / C 125.3 / C 130.1 11 EU Declaration of Conformity EU Declaration of Conformity Product: High Pressure Washer Type: Nilfi sk C 120.3, C 125.3, C 130.1 and accessory variants of above-mentioned types Description: 230 V 1~, 50 Hz - IP X5... - Page 22 E-mail: info@nilfi sk.gr P2710-089 Sintra Web: http://www.nilfi sk.gr Tel.: +351 21 911 2670 Web: http://www.nilfi sk.pt HOLLAND RUSSIA Nilfi sk-Advance Нилфиск-Эдванс Versterkerstraat 5 127015 Москва 1322 AN Almere Web: http://www.nilfi sk.com Вятская ул. 27, стр. 7 Tel.: +31 365 460 700 Россия...
