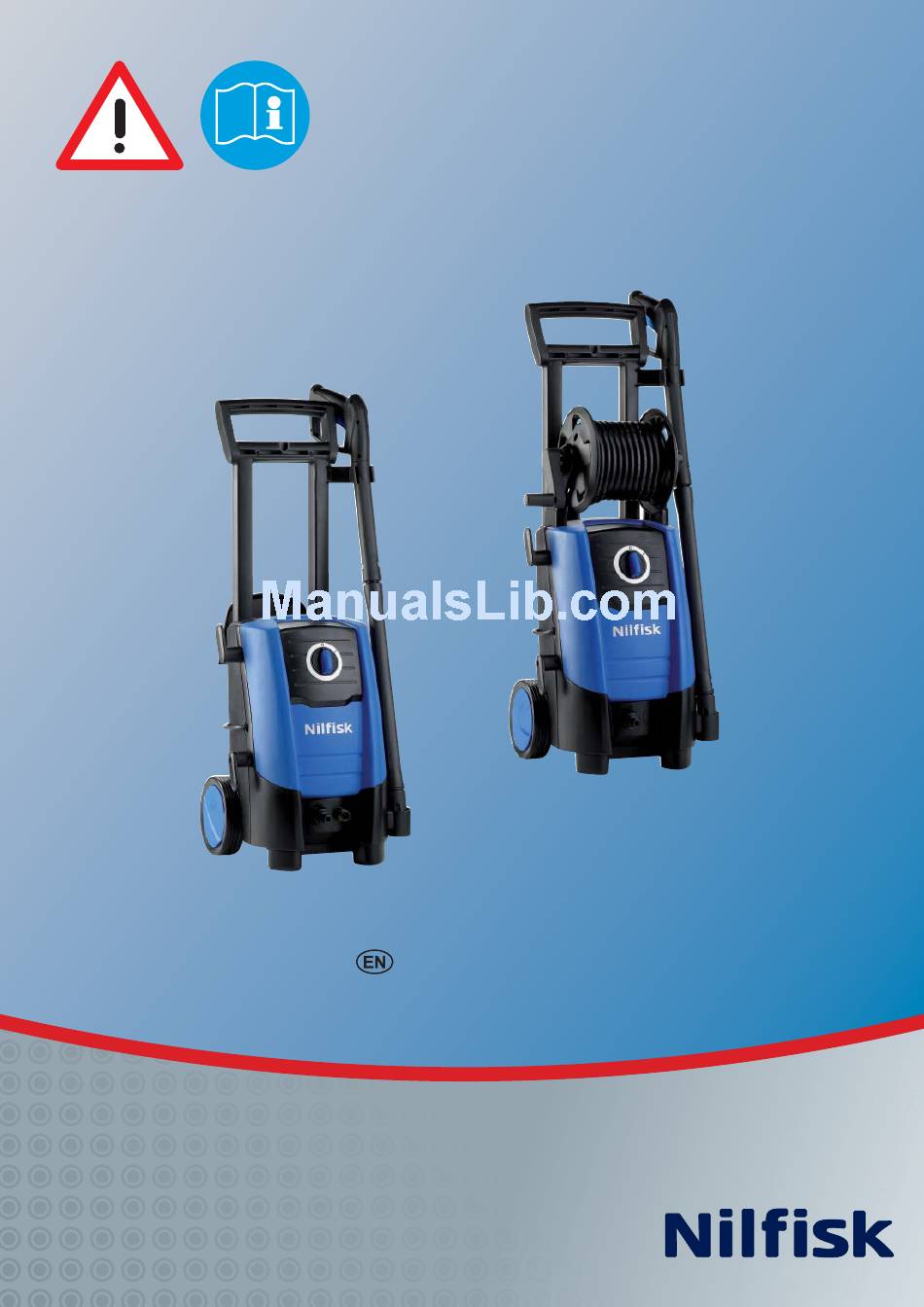

- Page 1 Nilfi sk C 120.4 User Manual...
-
Page 2: Table Of Contents
Index 1 Safety precautions and warnings ...3 2 Description ...4 3 Before you start using your pressure washer ...5 4 Operating your pressure washer ...6 5 Fields of Application and working methods ...9 6 After using your pressure washer ...11 7 Maintenance ...12... -
Page 3: Description
Cable connections should be kept dry and off the ground. Mains power connection The following should be ob- served when connecting the high pressure washer to the electric installation: Only connect the machine to an installation with earth con- nection. -
Page 4: Before You Start Using Your Pressure Washer
2.2 Operation elements and model survey 3 Before you start using your pressure washer 3.1 Mounting of trolley handle and hose hook 3.2 Mounting of hose reel handle (models with hose reel) See illustration at the end of this manual. -
Page 5: Operating Your Pressure Washer
3.3 Mounting of quick coupling 3.4 Mounting of high pres- sure hose 4 Operating your pressure washer 4.1 Connection of high pres- sure hose 1. Screw the quick coupling tight on to the water inlet (2). Note: The inlet fi lter must al- ways be fi... - Page 6 4.2 Mounting of spray lance and Click & Clean nozzles 4.3 Water connection 1. Push the spray lance (6) into the spray gun (7) and screw it on. An ordinary 1/2" garden hose of min. 10 m and max. 25 m will be suitable.
- Page 7 4.4 Start and stop of the machine (when con- nected to a water supply) 4.5 Start the machine (when connected to open con- tainers (suction mode)) Pressure regulation on ® the TORNADO nozzle The spray lance is affected by a thrust during operation - therefore always hold it fi...
-
Page 8: Fields Of Application And Working Methods
Accessories and detergents, when correctly cho- sen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning. Foam or detergent should be applied onto dry surfaces so that the chemical product is in direct contact with the dirt. - Page 9 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click & Clean’...
-
Page 10: After Using Your Pressure Washer
6 After using your pressure washer 6.1 Storing the washer 6.2 Winding up of electric cable and high pressure hose The machine should be sto- red in a frost-free room! Pump, hose and accessories should always be emptied of water prior to storing as follows: 1. -
Page 11: Maintenance
The nozzle cleaning tool (d) can also be stored on the product. The pressure washer can be stored on a wall on a special wall hook (not standard). Only mount the wall hook on a sturdy wall. - Page 12 7.1 Cleaning of water inlet fi lter 7.2 Cleaning of nozzle 7.3 Cleaning of machine vents 7.4 Greasing of couplings The machine should be kept clean so as to let cooling air pass freely through the ma- chine vents. To ensure an easy connec- tion and that o-rings do not dry up, the couplings should be greased regularly.
-
Page 13: Trouble Shooting
8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization: Symptom Cause Machine refuses to start Machine not plugged in Defective socket Fuse has blown Defective extension cable Fluctuating pressure Pump sucking air Valves dirty, worn out or stuck Pump seals worn out... -
Page 14: Further Information
9 Further information 9.1 Recycling the washer 9.2 Warranty conditions Make the old cleaner unusable immediately. 1. Unplug the cleaner and cut the electric cable. Do not discard electrical appli- ances with household waste. Nilfi sk guarantees high pres- sure washers for domestic use for 2 years. - Page 15 Rotary brush for cleaning of wooden surfaces. Rotary brush for cleaning of wheel rims. For suspension of your high pressure washer on the wall. For cleaning vehicles and other surfaces. For removal of large amounts of water from e.g. garden...
-
Page 16: Ec Declaration Of Conformity
For cleaning of grease and oil on motors for instance. Applied with an atomizer. For cleaning of wooden surfaces incl. of wooden garden furniture. High Pressure Washer Nilfi sk C 120.4 230 V 1~, 50 Hz - IP X5 EC Machine Directive 98/37/EC... - Page 18 Nilfi sk, Division of Nilfi sk-Advance A/S, Industrivej 1, DK - 9560 Hadsund, tel.: (+45) 7218 2100...
