Valcom V-1094A Connections

V-1094A Page Port PreAmp/Expander
The Amp has a 600 Ohm
input and a 8 Ohm output
with a response of 80Hz
to 10kHz +/-3dB and a
maximum gain of 8dB.
It is powered by -21 to
-26VDC at 15mA.
Issue 1

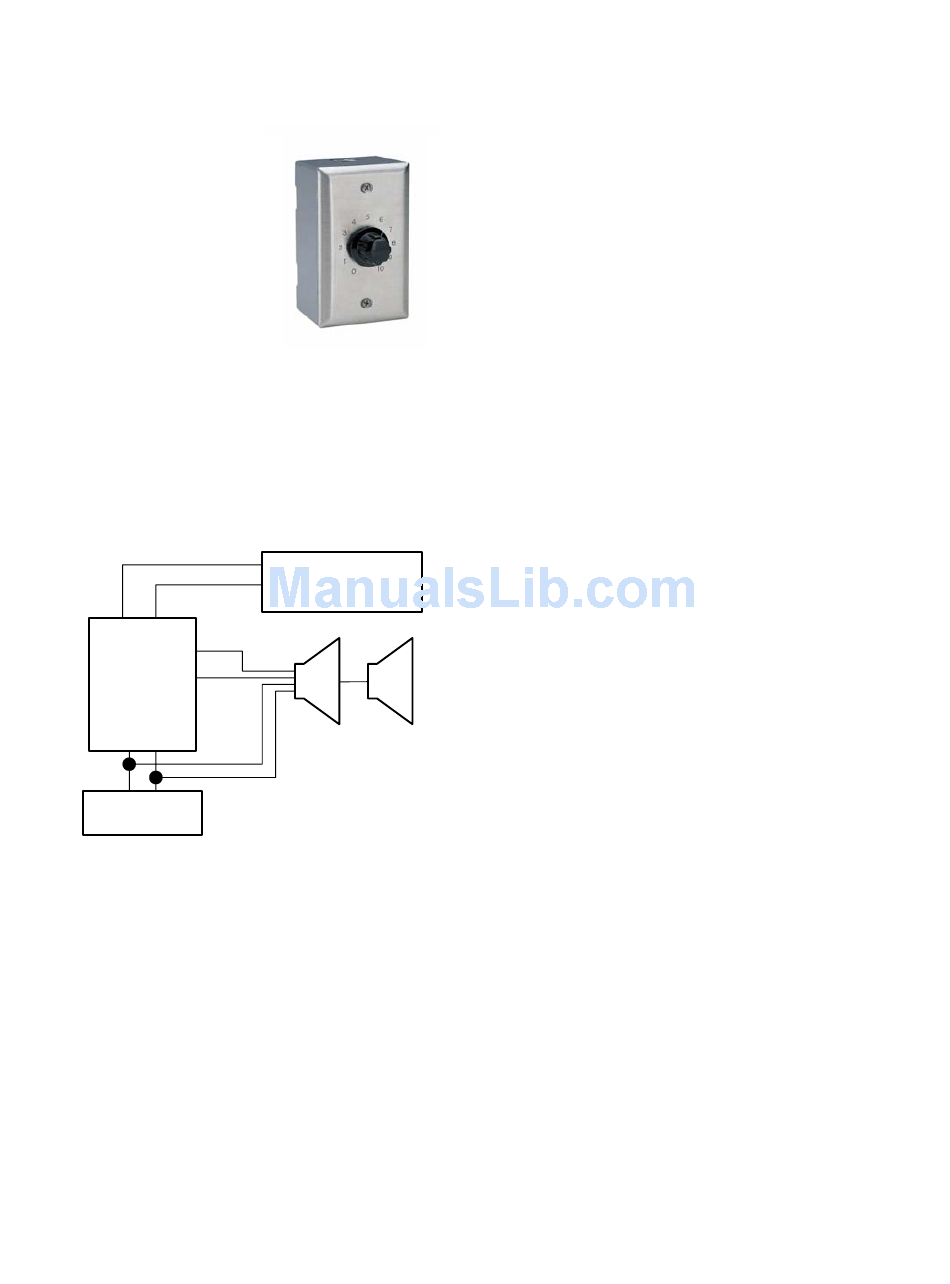

Audio and Power Connections
T (J1) R
Input
T
R
V-1094A
Output
Page Port
Preamp (J3)
Expander
(J2)
-24V GND
Power Supply
•
Note:
4.50" L
2.50" H
•
Drawing goes on back side
The V-1094A is normally
used to pre-amp audio on
long lines or provide master
volume control to all or part
of a paging zone.
Technical Assistance
540-563-2000 or
www.valcom.com
600 Ohm page port
or zone output of a
page control unit
Up to 150
One-Way
Amplified
Speakers
Input level equals output
level at position 5
947095-A
