Peripherals; Connectivity - Muratec F-560 Benefits

Muratec F-560
Design Considerations

Peripherals:

This device supports several hardware
upgrade options, all of which involve
accessing the motherboard. The opening for
the mother-board is found in the back of the
unit and requires a screwdriver to remove
(see picture). The standard 8 MB of RAM
can be increased to 40 MB. An additional fax
modem is available. The copier can be
upgraded with a PCL 5e/6 kit. And the
OfficeBridge Expansion Kit, which adds
mailbox capabilities, requires adding two
chips to the NGP daughter card, attached to
the motherboard.
Connectors for USB, Ethernet,
and fax can be found on the
left side of the device.
www.BERTL.com
tel. 732-761-2311
fax. 732-761-2312
info@BERTL.com
Connectivity Interface:
Cables (power, Ethernet, USB, and fax) are
connected on the left side of the Muratec
F-560. The device supports up to 2 fax lines
and has connectors for linking analog
phones.
Copyright © 2005 Business Equipment Research and Test Laboratory Ltd. 30-Aug-05
All Rights Reserved. The license under which this document is made available and applicable law prohibit
any reproduction or further transmission of any portion of this document. This document may only be viewed
electronically through the BERTL.com website and may not be stored in electronic or hard copy format. Any
reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or
omissions contained in this document.

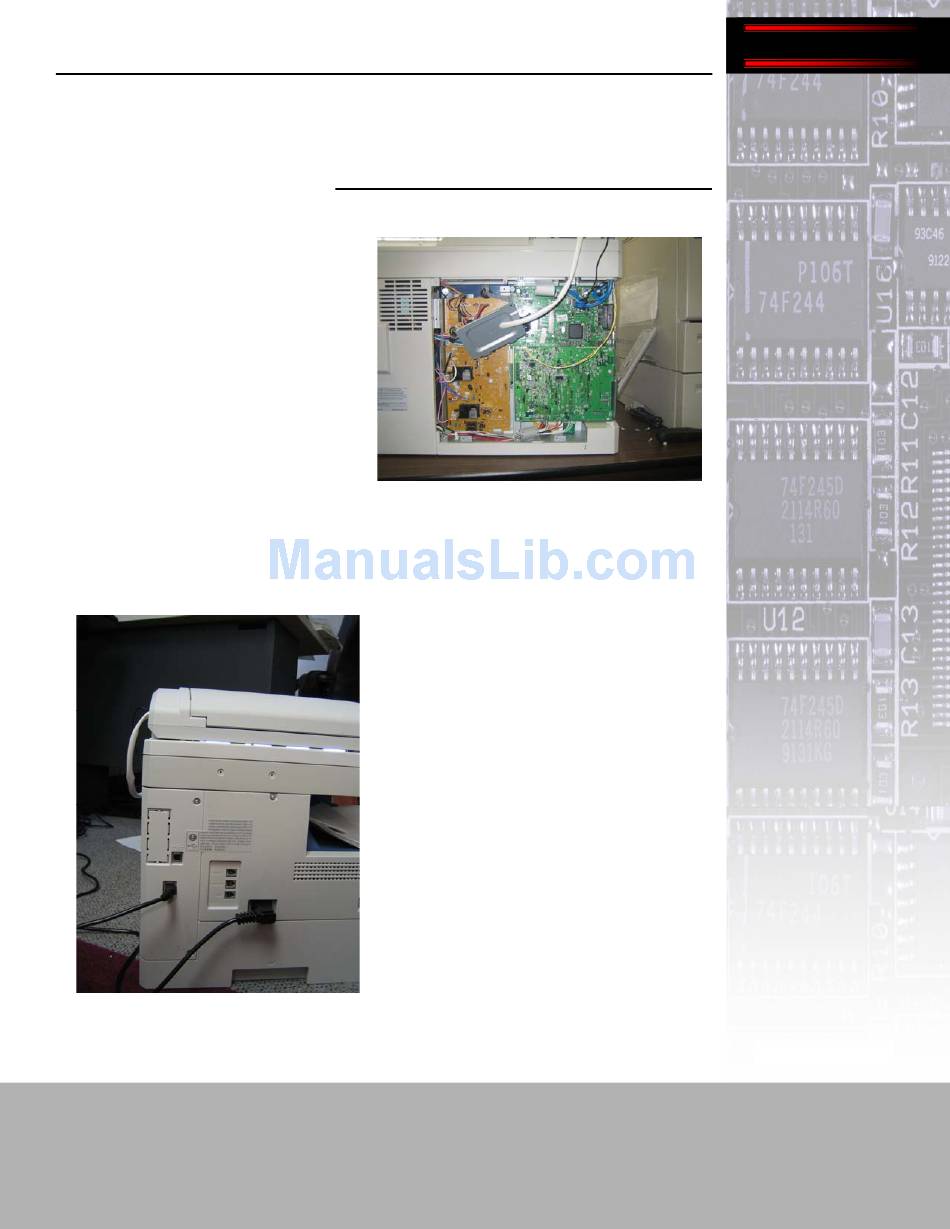

The mother board can be accessed
from the back of the F-560. A
screwdriver is required to
remove the metal cover.
LabCheck
®
Page 5
