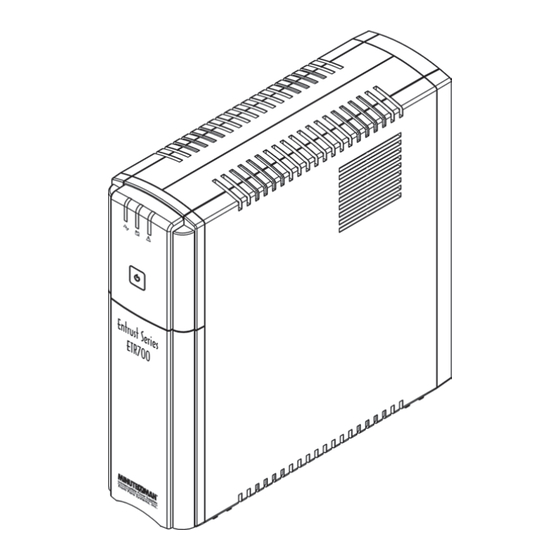

- Page 1 Entrust Series UPS User's Manual...
-
Page 2: Table Of Contents
Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Limited Product Warranty A1. Declaration of Conformity © Copyright 2007... -
Page 3: Introduction
SAVE THESE INSTRUCTIONS ! Please read this manual before installing your Entrust Series UPS, models ETR500, ETR700, ETR1000, ETR1500, ETR700p15, ETR1500p15 as it pro- vides important information that should be followed during installation and main- tenance of the UPS and batteries allowing you to correctly set up your system for the maximum safety and performance. - Page 4 This symbol indicates "Direct Current Supply" This symbol indicates "Equipment Grounding Conductor" CAUTION! Connect the UPS to a two pole, three wire grounding AC wall outlet. The receptacle must be connected to the appropriate branch protection (circuit breaker or fuse). Connection to any other type of receptacle may result in a shock hazard and violate local electrical codes.
-
Page 5: Receiving Inspection
NOTICE: This equipment has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Sub- part J of Part 15 of FCC Rules and the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference of the Canadian Depart- ment of Communications. -
Page 6: Life Support Policy
Life Support Policy As a general policy, we do not recommend the use of any of our products in life support applications where failure or malfunction of the product can be reason- ably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. -
Page 7: Controls And Indicators
8. The RJ11/45 are used for phone/fax/modem and network protection. 9. Battery Backup and Surge output power receptacles. 10. Input circuit breaker. Model # Input Power Plug Output Power Receptacles ETR500 ETR700 NEMA 5-15P W/6 ft cord 4-NEMA 5-15R Surge Only ETR1000 4-NEMA 5-15R Battery Backup & Surge... -
Page 8: Installation
Status LED and Alarm Table UPS Status Yellow LED Red LED Alarm Green LED 1-Beep/5-sec Self-Test All LEDs cycle (each LED Blinks 1/1.5seconds) AC Mode Normal 1-Blink/1.5sec Boost Buck 2-Blinks/sec Self low Battery 2-Blinks/sec 3-Beeps/30-sec Overload 2-Blinks/sec 2-Beeps/sec Battery Mode Normal 1-Beep/5-sec Overload... - Page 9 3. Gently push the top of the battery compartment cover inward and then slide the battery compartment cover off the UPS. (FIG. 2) 4. For the ETR500/700: Grasp the battery pull tab and gently pull the battery out far enough to connect the battery positive (Red) wire. (FIG. 3) NOTE: The ETR1000/1500 have Red Anderson connectors to connect the battery.
- Page 10 FIG. 3: ETR700 FIG. 3: ETR1000/1500 CONNECTING YOUR EQUIPMENT Plug the mission critical equipment into the Battery Backup & Surge output receptacles on the rear panel of the UPS. Plug the non-critical equipment into the Surge Only output receptacles on the rear panel of the UPS. Do not use extension cords, adapter plugs or surge strips on the output of the UPS.
-
Page 11: Operation
PHONE/FAX/MODEM/NETWORK PROTECTION CONNECTION (OPTIONAL) Connect a 10/100 Base-T network, single line phone, fax or modem line to the RJ-11/45 modular connectors on the rear panel of the UPS. This connection will require another length of telephone cable (provided) or network cable. The cable coming from the telephone service or network system is connected to the port marked “IN”. - Page 12 TURNING THE UNIT ON/OFF On / Off Button Press and release the On/Off Button to turn the UPS on. The alarm will sound one beep and the LEDs will cycle while the UPS performs a five second internal self-test. Once the UPS has passed its internal self-test the UPS will provide an output and the load will be powered.
-
Page 13: Troubleshooting
What To Do Possible Cause Symptom On/Off/ button not pressed Press and release the On/Off UPS will not turn on button to start UPS Reset circuit breaker by UPS operates in Input AC circuit breaker is tripped pressing the plunger back in. battery mode only, even though there If the AC circuit breaker trips... -
Page 14: Replacing The Battery
REPLACING THE BATTERY (QUALIFIED SERVICE PERSONNEL ONLY) Please read all of the WARNINGS and CAUTIONS before attempting to service the batteries. This UPS contains potentially hazardous voltages. Do not at- WARNING! tempt to disassemble the UPS beyond the battery replacement procedure. - Page 15 7. Gently push the top of the battery compartment cover inward and then slide the battery compartment cover off the UPS. (FIG. 2) 8. For the ETR500/700: Grasp the battery pull tab and gently pull the battery out far enough to disconnect the battery positive (Red) wire. (FIG. 3) NOTE: The ETR1000/1500 have Red Anderson connectors to connect the battery.
- Page 16 FIG. 1 FIG. 2 FIG. 3: ETR500 FIG. 3: ETR700 FIG. 3: ETR1000/1500...
-
Page 17: Obtaining Service
5. Mark the RMA # on the outside of all packages. The factory cannot accept any package without the RMA # marked on the outside. 6. Return the UPS by insured, prepaid carrier to: Para Systems Inc. MINUTEMAN UPS 1455 LeMay Drive... -
Page 18: Specifications
SYSTEM SPECIFICATIONS ETR700 ETR1500 ETR500 ETR1000 Model Number ETR700p15 ETR1500p15 Line-Interactive, Simulated Sine Wave Topology 700VA 1500VA 500VA 1000VA Maximum Power Capacity 420W 900W 300W 600W INPUT Number of Phase Single (1∅ 2W +G) Nominal Voltage 120VAC Acceptable Input voltage... -
Page 19: Battery System
BATTERY SYSTEM Battery Type Sealed, Non-Spillable, Maintenance Free, Value Regulated Lead Acid Typical Recharge Time 8-hours from total discharge Typical Battery Life 3-5 years, depending on discharge cycles and ambient temp System Voltage 12VDC 12VDC 24VDC 24VDC Battery: Quantity/Rating 1-12V5Ah 1-12V7Ah 2-12V9Ah 2-12V7Ah... -
Page 20: Limited Product Warranty
Para Systems Inc. (Para Systems) warrants the batteries for a period of two years from the date of purchase. For equipment sites within the United States and Canada, this warranty covers repair or replacement of defective equipment at the discretion of Para Systems. -
Page 21: A1. Declaration Of Conformity
Manufacturer’s Address: 1455 LeMay Drive Carrollton, Texas 75007 USA Type of Equipment: Uninterruptible Power Supplies (UPS) Model No: ETR500, ETR700, ETR1000, ETR1500, ETR700p15, ETR1500p15 Year of Manufacture: Beginning February 1, 2007 I hereby declare that the equipment specified above conforms to the above Directive(s). - Page 22 Notes:...
- Page 23 Notes:...
- Page 25 Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000295 R1...
