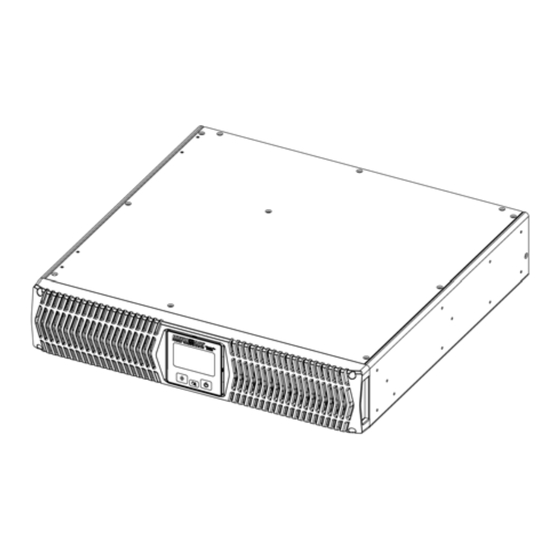

- Page 1 Enterprise Plus LCD RT UPS Series User's Manual Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000434 R3...
- Page 2 Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Configurable Parameters & Settings Limited Product Warranty A1. Declaration of Conformity © Copyright 2013...
- Page 3 Please read this manual before installing your Enterprise Plus Series UPS, must ensure that the combined sum of the AC leakage current does models E750RT2U, E1000RT2U, E1500RT2U, E2000RT2U, E3000RT2U, as it not exceed 3.5mA. provides important information that should be followed during installation and maintenance of the UPS and batteries allowing you to correctly set up your system for the maximum safety and performance.
- Page 4 Life Support Policy from digital apparatus set out in the Radio Interference of the Canadian Depart- As a general policy, Para Systems does not recommend the use of any of our ment of Communications. These limits are designed to provide reasonable products in life support applications where failure or malfunction of the product protection against such interference in a residential installation.
- Page 5 The Load Level Bar Graph operates as follows: LED #1: When the attached load is >20% the LED will illuminate. LED #2: When the attached load is >40% the LED will illuminate. LED #3: When the attached load is >60% the LED will illuminate. LED #4: When the attached load is >80% the LED will illuminate.
- Page 6 Be sure to read the installation placement and all the cautions before installing 6-NEMA 5-15R (Controllable) the UPS. Place the UPS in the final desired location and complete the rest of E750RT2U NEMA 5-15P 2-NEMA 5-15R (Always On) the installation procedure. These UPSs are shipped with the internal batteries 6-NEMA 5-15R (Controllable) disconnected.
- Page 7 CONNECTING THE BATTERIES RACKMOUNT CONFIGURATION (QUALIFIED SERVICE PERSONNEL ONLY) This UPS comes with mounting brackets for the standard 19" (46.5cm) rack Please read all of the WARNINGS and CAUTIONS before attempting to con- installed on the UPS. The mounting brackets to fit a 23" (59.2cm) rack and nect the batteries.
- Page 8 WALLMOUNT CONFIGURATION TOWER CONFIGURATION The wallmount configuration allows the user to mount the UPS on the wall. There is The tower configuration allows the user to install the UPS in the up-right position a wallmount bracket kit available for the UPS. The kit includes two wall mounting next to a tower computer.
- Page 9 CONNECTING YOUR EQUIPMENT COMMUNICATIONS PORT CONNECTION (OPTIONAL) Plug the equipment into the output receptacles on the rear panel of the UPS. The Power Monitoring Software and interface cables can be used with the Do not use extension cords, adapter plugs or surge strips on the output of the UPS.
- Page 10 The UPS will charge the batteries with the UPS in the on or off position as long DIPSWITCH SETTINGS as the UPS is plugged into the wall outlet and there is an acceptable AC voltage The dipswitch setting may be changed by the user to set the desired Inverter present (80 - 164VAC).
- Page 11 OPTION SLOT The option slot on the rear panel of the UPS is for option cards. Contact your local dealer for the available option cards. RJ11 REPO (Remote Emergency Power Off) PORT Connect one end of the RJ11 cable to the REPO port and the other end of the RJ11 cable to the EPO switch.
- Page 12 CAUTION: Replace batteries with the same number and type as originally installed in the UPS. These batteries have pressure operated vents. These UPSs contain sealed non-spillable maintenance-free lead acid batteries. Model # E750RT2U E1500RT2U E2000RT2U E3000RT2U E1000RT2U REPLACING THE BATTERY...
- Page 13 5. Mark the RMA # on the outside of all packages. The factory cannot accept any package without the RMA # marked on the outside. 6. Return the UPS by insured, prepaid carrier to: Para Systems Inc. MINUTEMAN UPS 1809 W. Frankford Road, Suite 150...
- Page 14 36VDC Battery Module BM0029 BM0029 BM0031 BM0032 BM0030 Runtime: Half Load (minutes) SYSTEM SPECIFICATIONS Runtime: Full Load (minutes) E750RT2U E1500RT2U E2000RT2U E3000RT2U Model Number E1000RT2U SURGE PROTECTION AND FILTERING Surge Energy Rating 1000 J Line-Interactive, Sine Wave Topology Surge Current Capability...
- Page 15 Disable the UPS is reset REPO Disable No employee, salesman, or agent of Para Systems is authorized to add to or vary the terms of this warranty.
- Page 16 Manufacturer’s Address: 1455 LeMay Drive Carrollton, Texas 75007 USA Type of Equipment: Uninterruptible Power Supplies (UPS) Model No: E750RT2U (Y), E1000RT2U (Y), E1500RT2U (Y), E2000RT2U (Y), E3000RT2U (Y) Year of Manufacture: Beginning April 1, 2013 I hereby declare that the equipment specified above conforms to the above Directive(s).
