MultiModem rCell Intelligent Wireless Router
3.
The Local Area Connection Properties dialog box displays.
●
Select Internet Protocol [TCP/IP].
●
Click the Properties button. The Internet Protocol
(TCP/IP) Properties screen displays.
4.

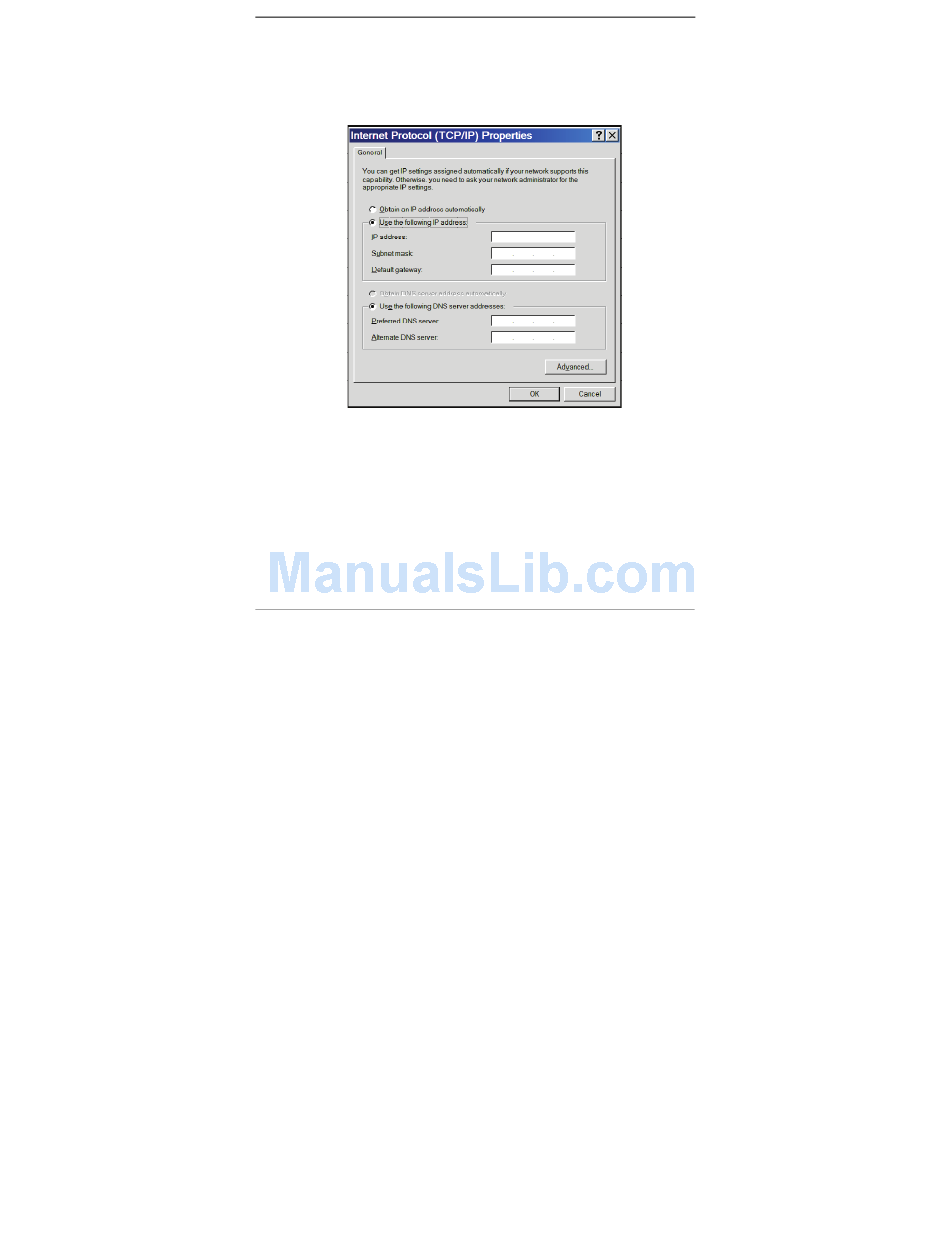

The Internet Protocol (TCP/IP) Properties screen.
Important Note:
If this screen opens and displays your current IP configuration, we
suggest you record this information for future reference (i.e., after
the router is configured, you may wish to return this PC to its
original settings).
●
To set a Fixed IP Address for the pc, select Use the following
IP address.
●
Enter the pc IP Address. Example: 192.168.2.x.
Note: The x in the address stands for numbers 101 and up.
●
Enter the pc Subnet Mask. Example: 255.255.255.0
●
Enter the pc Default Gateway. Example: 192.168.2.1
Multi-Tech Systems, Inc. Quick Start Guide
9
