Technical Specifications; Table 2-5. Technical Specifications - Lantronix XPort AR Integration Manual

Technical Specifications

Category Description
CPU
Memory
Reset Circuit
Serial Interface
Serial Line Formats
Modem Control
Flow Control
Programmable I/O
Network Interface
Compliance
Protocols Supported
LEDs
Management
Email
Security
Internal Web Server
Material
Temperature
Shock/Vibration
Warranty
Included Software
XPort AR Integration Guide

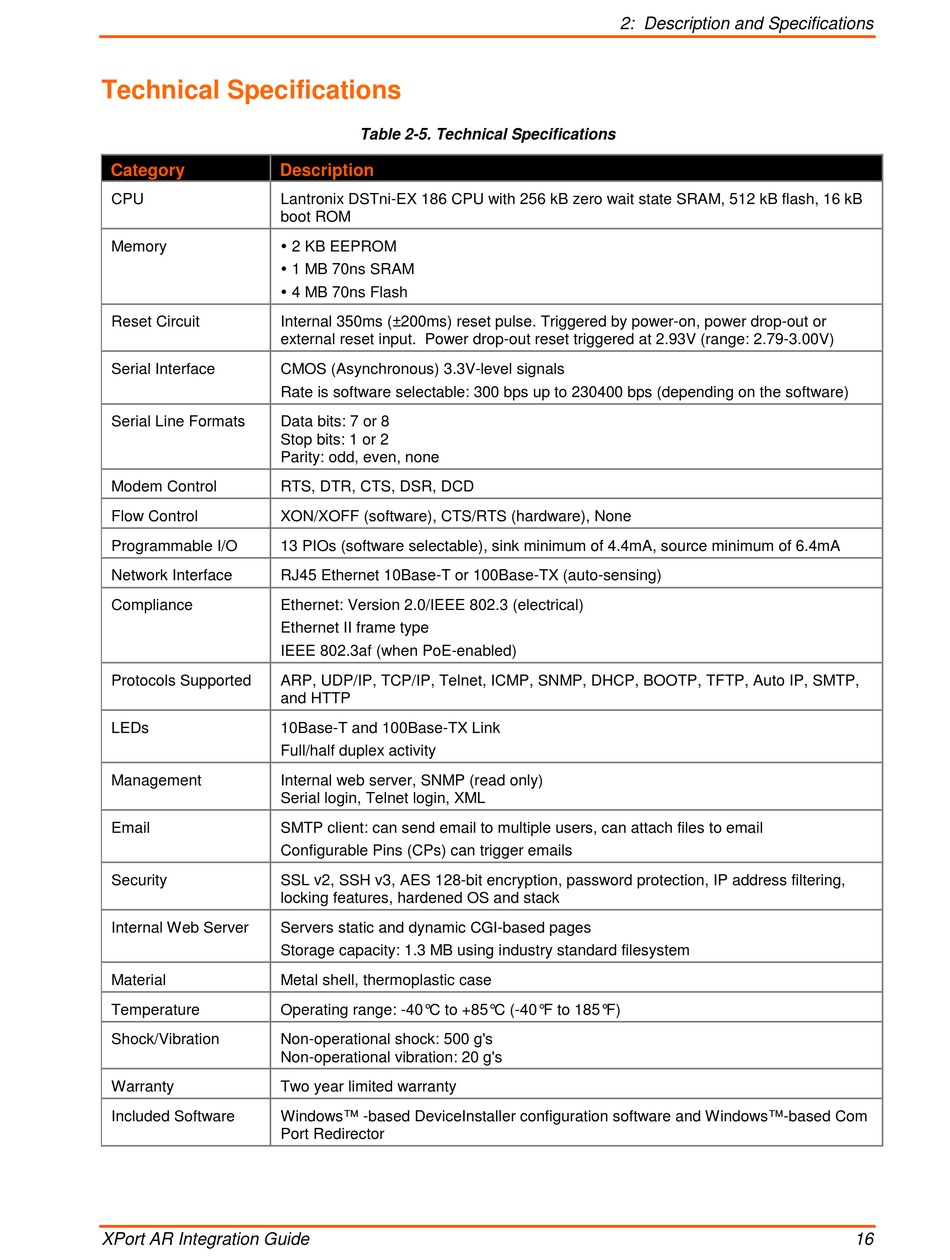

Table 2-5. Technical Specifications

Lantronix DSTni-EX 186 CPU with 256 kB zero wait state SRAM, 512 kB flash, 16 kB
boot ROM
 2 KB EEPROM
 1 MB 70ns SRAM
 4 MB 70ns Flash
Internal 350ms (±200ms) reset pulse. Triggered by power-on, power drop-out or
external reset input. Power drop-out reset triggered at 2.93V (range: 2.79-3.00V)
CMOS (Asynchronous) 3.3V-level signals
Rate is software selectable: 300 bps up to 230400 bps (depending on the software)
Data bits: 7 or 8
Stop bits: 1 or 2
Parity: odd, even, none
RTS, DTR, CTS, DSR, DCD
XON/XOFF (software), CTS/RTS (hardware), None
13 PIOs (software selectable), sink minimum of 4.4mA, source minimum of 6.4mA
RJ45 Ethernet 10Base-T or 100Base-TX (auto-sensing)
Ethernet: Version 2.0/IEEE 802.3 (electrical)
Ethernet II frame type
IEEE 802.3af (when PoE-enabled)
ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, SMTP,
and HTTP
10Base-T and 100Base-TX Link
Full/half duplex activity
Internal web server, SNMP (read only)
Serial login, Telnet login, XML
SMTP client: can send email to multiple users, can attach files to email
Configurable Pins (CPs) can trigger emails
SSL v2, SSH v3, AES 128-bit encryption, password protection, IP address filtering,
locking features, hardened OS and stack
Servers static and dynamic CGI-based pages
Storage capacity: 1.3 MB using industry standard filesystem
Metal shell, thermoplastic case
Operating range: -40°C to +85°C (-40°F to 185°F)
Non-operational shock: 500 g's
Non-operational vibration: 20 g's
Two year limited warranty
Windows™ -based DeviceInstaller configuration software and Windows™-based Com
Port Redirector
