Evaluation Board Major Components; Figure 3-1. Evaluation Board; Figure 3-2. Evaluation Board (Diagram) - Lantronix XPort AR Integration Manual

♦
Power on/off.
♦
Push button reset.
♦
Two available to jumper to CPs for generating input.
 Ground:
♦
Turret available for scope probe alligator clip connection to signal ground.
 XPort AR Footprint:
♦
Accommodates both XPort AR and the original XPort (without sockets).

Evaluation Board Major Components

XPort AR Integration Guide

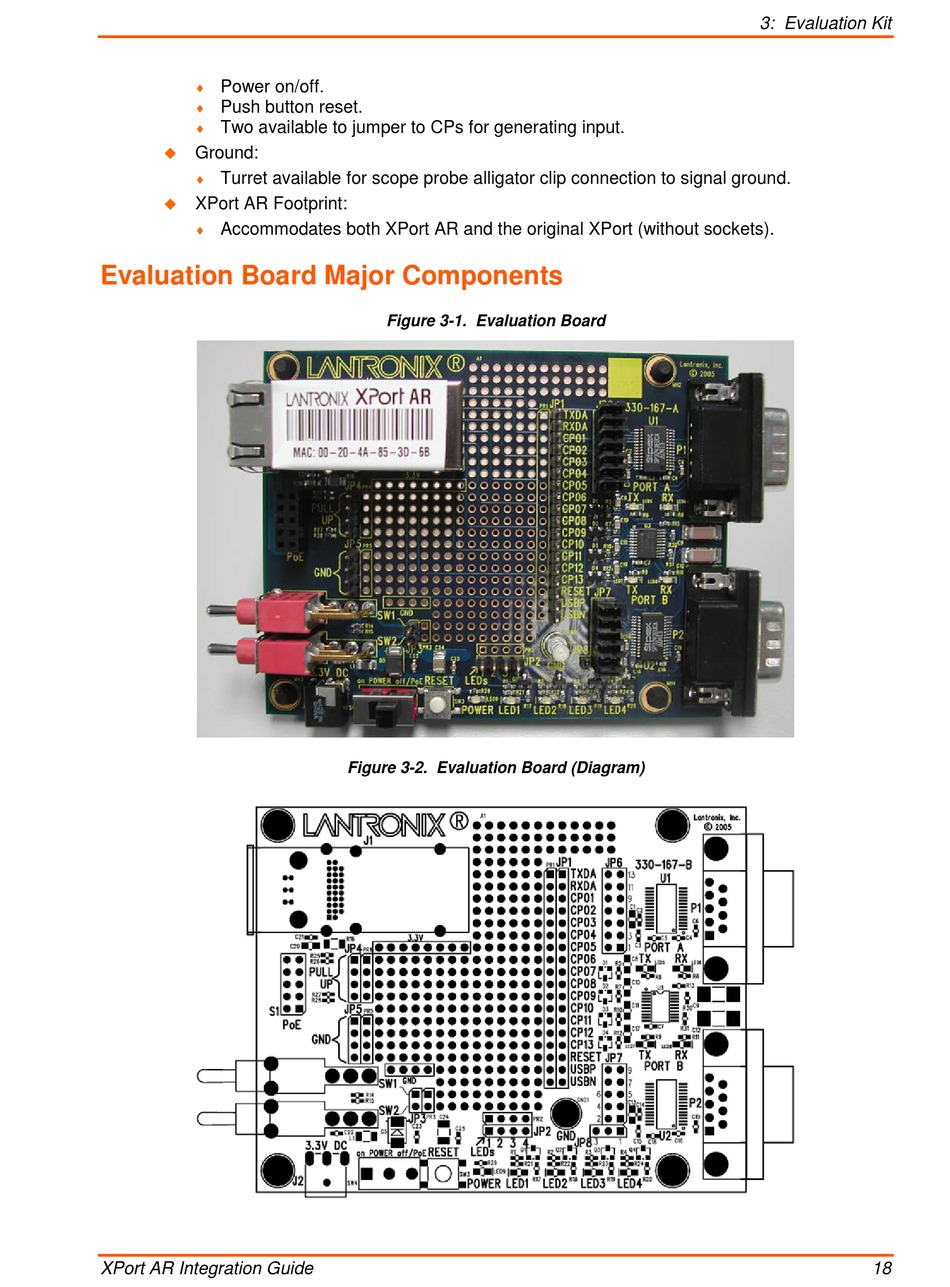

Figure 3-1. Evaluation Board

Figure 3-2. Evaluation Board (Diagram)
