Downloading Via the APS Configuration Utility
3
Click the Load Firmware icon
4
Type the Device Server's assigned IP address in the IP Address field.
5
Click the Select FW File button. The files in your Firmware folder display. (If the
files are stored elsewhere, browse until you find them.)
6
Select the file to download and click the Open button. The path of the selected file
displays in the FW File field.
7
Click the Download FW File button. When the File download successful message
displays, click OK.

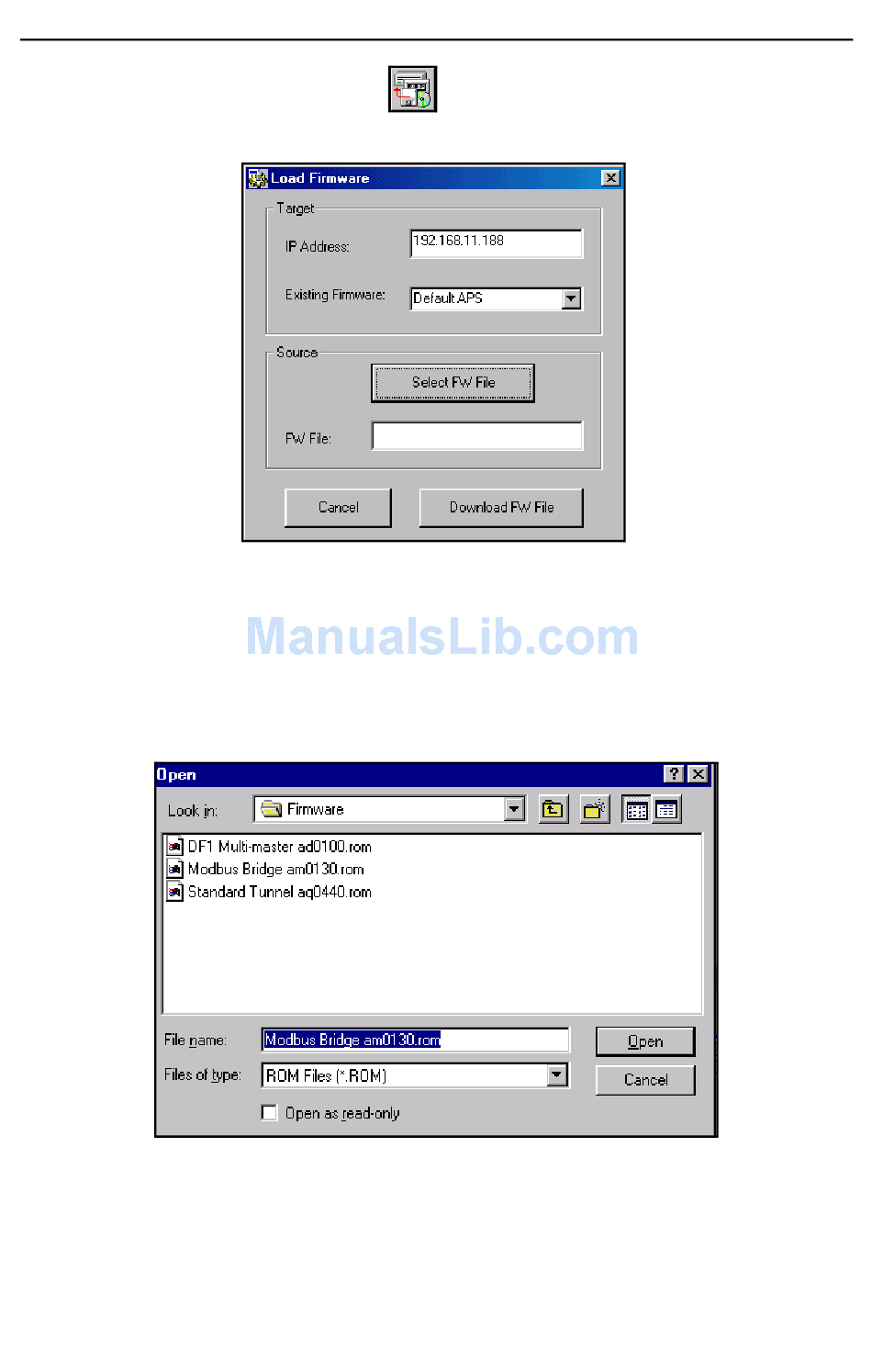

Figure C-2: Load Firmware Window
Figure C-4: Firmware Files
C-2
. The Load Firmware window displays.
Updating Firmware
