Assigning the IP Address
4
Click the Assign IP icon.
5
In the Enter IP Address to assign field, type the IP address of the Device Server
(XXX.XXX.XXX.XXX format).
6
In the Enter the Hardware or Ethernet Address field, type the Ethernet address
(MAC address) listed on the Device Server label.
7 Click the Set IP Address button. The Assign IP Successful message displays. Click
OK.
8
Click the Ping icon.
9
Click the Ping button. The Reply received message displays in the window,
indicating that the IP address has been entered successfully.

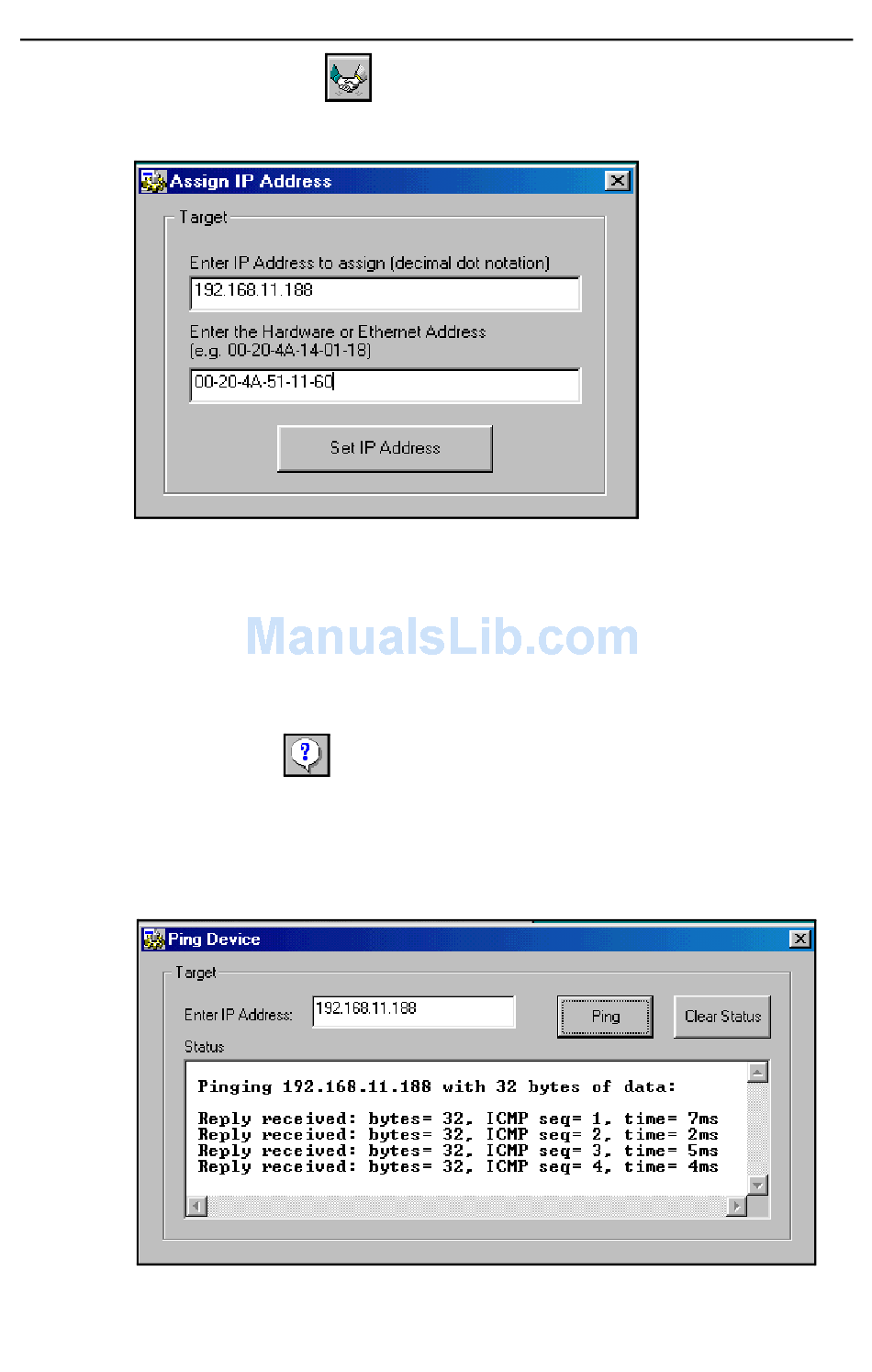

The Assign IP Address window displays.
Figure 3-2: Assign IP Address Window.
The Ping Device window displays.
Figure 3-2: Ping Device Window
