  • Page 1 Grandstream Networks, Inc. GXV3651_FHD User Manual...
  • Page 2 Safety Instructions These instructions are intended to assist users with the operation of the GXV3651_FHD and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected.
  • Page 3 GXV3651_FHD IP Camera Note： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    GXV3651_FHD Home Web Page ... 14 GXV3651_FHD System Time and Name Page ... 15 GXV-3651_FHD Video & Audio Page ... 16 GXV3651_FHD Networking Page – Assigning an IP to the GXV3651_FHD ... 18 GXV3651_FHD DDNS Page ... 19 GXV3651_FHD SIP Page ... 20 GXV3651_FHD Status Page ...

  • Page 5: Welcome

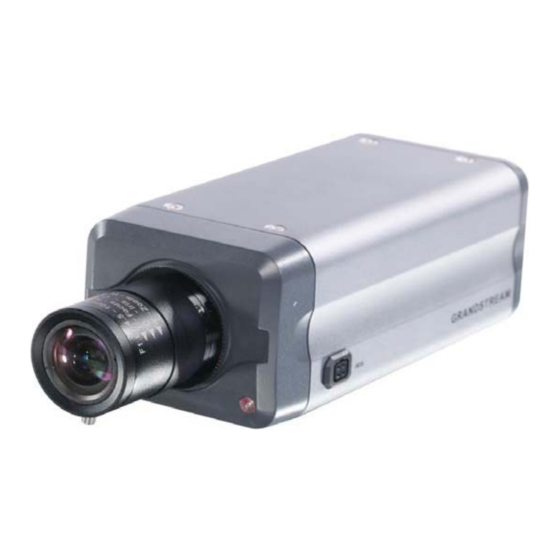

    The GXV3651_FHD is a next generation IP camera for remote monitoring and surveillance over your LAN or internet. The GXV3651_FHD combines best in class IP video technology and SIP protocols for a robust IP surveillance solution. The product features H.264 video streams with up to 30 frames per second at 1080p resolution, delivering rich image clarity at rapid transmission rates.

  • Page 6: Package Contents

    Package Contents Items in the package:  GXV3651_FHD IP Camera  12V DC power Adapter  6-pin terminal block connector – 6-pin connector block for connecting external devices, such as infrared detector, smoke detector and etc., to Alarm IN, Alarm OUT and RS485 pins.

  • Page 7: Product Overview

    GXV3651_FHD IP Camera Product Overview GXV3651_FHD Side View Note: The optional Auto Iris Lens is shown Firmware 1.0.1.32 Page 7 of 36 Grandstream Networks, Inc. 06/2011...

  • Page 8: Gxv3651_Fhd Back Panel

    GXV3651_FHD IP Camera GXV3651_FHD Back Panel Indicators and Connectors on Back Panel NETWORK – 10/100 Switch LAN port for connecting to Ethernet. The indicator will be steady for connection and flashing for network activity. AUDIO IN – 3.5mm port for audio input devices (microphone, pickup and etc.).

  • Page 9: Gxv3651_Fhd Sample Connection Diagram

    GXV3651_FHD Sample Connection Diagram GXV3651_FHD Key Features The table below lists the key features the GXV3651_FHD Supports. Features Image Sensor Lens Type Day & Night Minimum Illumination Responsitivity Max Frame Rate Pixel Dynamic Range Supported Video Resolutions Video Bit Rate...

  • Page 10: Gxv3651_Fhd Lens Specification

    Network Protocol Power over Ethernet (PoE) Peripheral Ports SIP/VoIP Support Dimensions (L x W x H) Weight Temperature / Humidity Power Adapter Compliance GXV3651_FHD Lens Specification Parameters GXV3651_FHD Lens Format 1/2.5” CMOS Image Sensor 4.5mm – 10mm Focal Length Aperture Ratio View Angle D:102°- 46.5°...

  • Page 11: Minimum Recommended System Requirement

    Connect the other end of the RJ-45 cable to your network or PC.  Connect the power supply to the DC 12V connector block inside the GXV3651_FHD.  Connect the other end of the power supply to a wall outlet. The POWER LED will turn solid green.

  • Page 12: Configuring The Gxv3651_Fhd Via Web Browser

    7. Enter the administrator user name and password to access the Web Configuration Interface 8. The default user name and password are both set to admin. 9. Once you log into the GXV3651_FHD‘s web interface, the device will indicate that you need to install or update the video plug in. Firmware 1.0.1.32 Grandstream Networks, Inc.

  • Page 13: Connect To The Camera Using A Static Ip

    Interface 7. The default user name and password are both set to admin. 8. Once you log into the GXV3651_FHD‘s web interface, the device will indicate that you need to install or update the video plug in. 9. Save the VideoPlugine.exe file and run it on your computer. Then restart Internet Explorer.

  • Page 14: Gxv3651_Fhd Home Web Page

    If an alarm event is triggered, the indicator will on the indicator to turn off the alarm. Control Console PTZ Console controller. ZOOM NOTE: The GXV3651_FHD does not support zoom with the factory lens FOCUS Adjusts the focus of images. If equipped with the proper lens Default Click this option to reset the video brightness, contrast, and saturation to their factory default configuration.

  • Page 15: Gxv3651_Fhd System Time And Name Page

    Configures the Save Location for captured images and recorded videos. GXV3651_FHD System Time and Name Page This page allows you to configure the system settings on the GXV3651_FHD. Current System Time - displays the current date and time (24h clock).

  • Page 16: Gxv-3651_Fhd Video & Audio Page

    Device Name Setting -This field lets you configure the name of the GXV3651_FHD, which helps GSurf and GS_NVR to indentify the device when using GS_Search to search all the Grandstream network cameras or digital video cameras in the same subnet.
  • Page 17 GXV3651_FHD IP Camera Video Settings Preferred Video Codec – The GXV3651_FHD supports the H.264 video codec. Resolution – The higher the resolution is, the better the video quality is, and higher bandwidth is required. Low ----------------------- High Resolution QCIF 2CIF 720p Bit Rate –...

  • Page 18: Gxv3651_Fhd Networking Page - Assigning An Ip To The Gxv3651_Fhd

    The GXV3651_FHD supports IP version 4. The IP address can be set automatically via DHCP, or a static IP address can be set manually. To make the GXV3651_FHD work properly, the user needs to set the DNS configuration properly. For security purposes, the user can also assign the GXV3651_FHD an HTTP Port other than 80.

  • Page 19: Gxv3651_Fhd Ddns Page

    Gateway IP address. These fields are set to zero by default. Static IP addresses are recommended for the GXV3651_FHD DNS Configuration There are two methods of DNS configuration on the GXV3651_FHD: 1. The GXV3651_FHD can obtain the DNS server automatically 2. Users can configure their own preferred DNS server HTTP Port The GXV3651_FHD supports user configured http ports.

  • Page 20: Gxv3651_Fhd Sip Page

    Register the GXV3651_FHD to a SIP server to enable the device to make and receive phone calls. To make outgoing phone calls, the user needs to configure the Phone List properly.
  • Page 21 Click Save to save all the changes. You need to restart the device to apply all changes. Configure the Phone List Page To make sure the GXV3651_FHD can make phone calls to the number you preferred when the alarm is triggered, you need to add a number to the phone list.

  • Page 22: Gxv3651_Fhd Status Page

    Network Status MAC Address – The device ID, in HEXADECIMAL format. LAN IP Address – This field shows the LAN IP address of the GXV3651_FHD. LAN Subnet Mask – This field shows the LAN subnet mask of the GXV3651_FHD. LAN Default Gateway – This field shows the LAN default gateway of the GXV3651_FHD.

  • Page 23: Gxv3651_Fhd User Management Page

    GXV3651_FHD IP Camera Camera Type This section shows the Lens information of GXV3651_FHD. The Lens type information contains the brand name, the size of image sensor, the resolution and so on. GXV3651_FHD User Management Page All current users will be listed in the User List section of this page. You can also add and remove users here.
  • Page 24 Upgrades are supported via TFTP, HTTP and HTTPS. 3. Log in to the Maintenance page of the GXV3651_FHD. Select the server type from the dropdown list under the ―Upgrade Via‖ field. Enter your server‘s root directory in the ―Firmware Server Path‖ field.

  • Page 25: Gxv3651_Fhd Smtp Page

    SMTP settings are ready to go. GXV3651_FHD FTP Page The FTP server is used to store video files if you configure the GXV3651_FHD to record video and upload it to the FTP server when an alarm event or motion detection is triggered.

  • Page 26: Gxv3651_Fhd Ptz Page

    Connect a PTZ device to the GXV3651_FHD 1. Connect the PTZ device to GXV3651_FHD by following the connection diagram shown below 2. Click Advanced Settings > PTZ; in PTZ page, configure the PTZ Protocol and Baudrate according to your connected PTZ device.

  • Page 27: Gxv3651_Fhd Alarm Event

    Internally, the Alarm-out uses relays as a switch (30VAC/2A); users can connect devices such as an alarm siren, alert lights or electric strike to this port. Under normal circumstances, the circuit is open. When there is an alarm event, the GXV3651_FHD will close the circuit to trigger the alarm.
  • Page 28 GXV3651_FHD IP Camera Set up Alarm Actions An alarm action is what the GXV3651_FHD is going to do when an alarm is triggered during the defined time period – the time schedule. The GXV3651_FHD allows multiple alarm actions. Record Video – If this option is...
  • Page 29 GXV3601 will report the alarm event to GSurf. Record Video and Upload to FTP server – If this option is selected, the GXV3651_FHD will record the video and upload it to the FTP server when an alarm is triggered. You must check Record Video and configure the FTP page properly to use this feature.

  • Page 30: Gxv3651_Fhd Motion Detection Page

    GXV3651_FHD Motion Detection Page The GXV3651_FHD supports Motion Detection. To utilize this feature, please follow the steps below: 1. Setup the motion detection monitored area. 2. Configure the motion detection time schedule. 3. Configure alarm action properly. Setup Motion Detection Monitored Area Enable Motion Detection –...

  • Page 31: Configure Motion Detection & Alarm Actions

    3. Click Save to save the changes. Configure Motion Detection & Alarm Actions An alarm action is what the GXV3651_FHD is going to do when an alarm is triggered during the defined time period – the time schedule. The GXV3651_FHD allows multiple alarm actions.

  • Page 32: Gxv3651_Fhd System Log

    GXV3651_FHD Live Storage This page displays detailed information of the live storage devices connected to the GXV3651_FHD such as video and image files. You can view, download or delete the stored files. Storage Information – This section displays the type, capacity, used space, free space and...

  • Page 33: Faq

    Please check whether the IE add-on is installed correctly. Once you log into the GXV 3651_FHD web interface, Internet Explorer will indicate that ―This website wants to install to following add-on: ‗GSViewer. cab‘ from Grandstream Networks, Inc.‖. Please install this add-on when prompted by IE.
  • Page 34 11. Alarm Triggered Events do not work in GSurf. Please double check the Alarm Action on your GXV-3651_FHD. Login to the web GUI of the GXV3651_FHD, go to the Motion Detection or Alarm Events page, and make sure option Upload to Alarm Center is checked.
  • Page 35 You must set the video resolution to QCIF to watch the GXV3651_FHD video stream from a cell phone. Make sure to set the bit rate to 64kbps to ensure the best video quality. 14. Why doesn’t the IP address of the device reset when I click the “Restore” button on the Maintenance page? The GXV3651_FHD could be installed in areas that are not easy to access.
  • Page 36 Mobile Intel® 945GM Express Chipset Family Mobile intel® 915GM/GMS, 910GML Express Chipset Family Intel® G45/G43 Express Chipset ATI Technologies, RAGE XL PCI Firmware 1.0.1.32 Grandstream Networks, Inc. 06/2011 GXV3651_FHD IP Camera Works normally Works normally Works normally Works normally Works normally...
