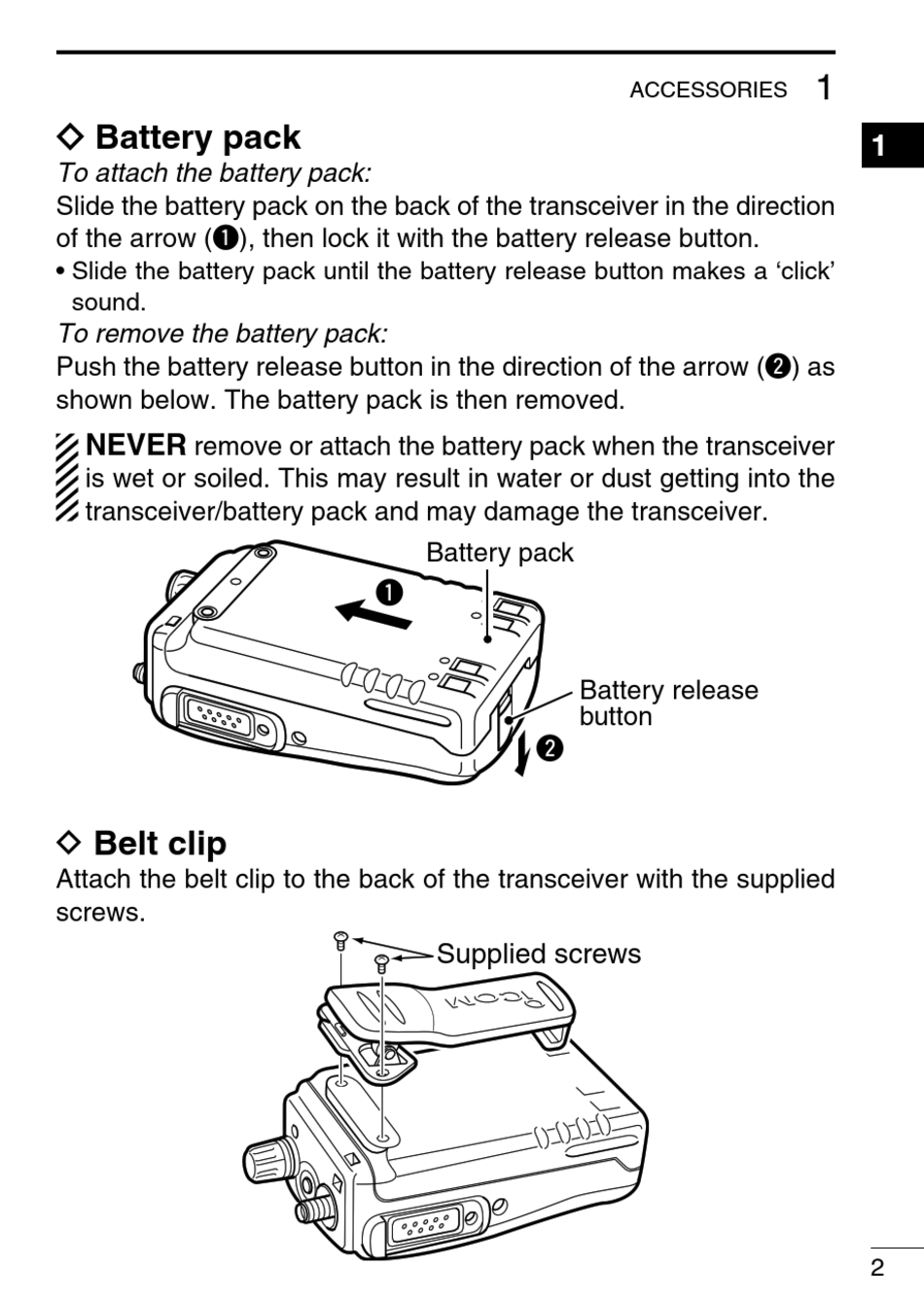

ï Battery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direction
of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a 'click'
sound.
To remove the battery pack:
Push the battery release button in the direction of the arrow (w) as
shown below. The battery pack is then removed.
NEVER
remove or attach the battery pack when the transceiver
is wet or soiled. This may result in water or dust getting into the
transceiver/battery pack and may damage the transceiver.
D Belt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.
Battery pack
q
w
Supplied screws

ACCESSORIES

Battery release
button
