1

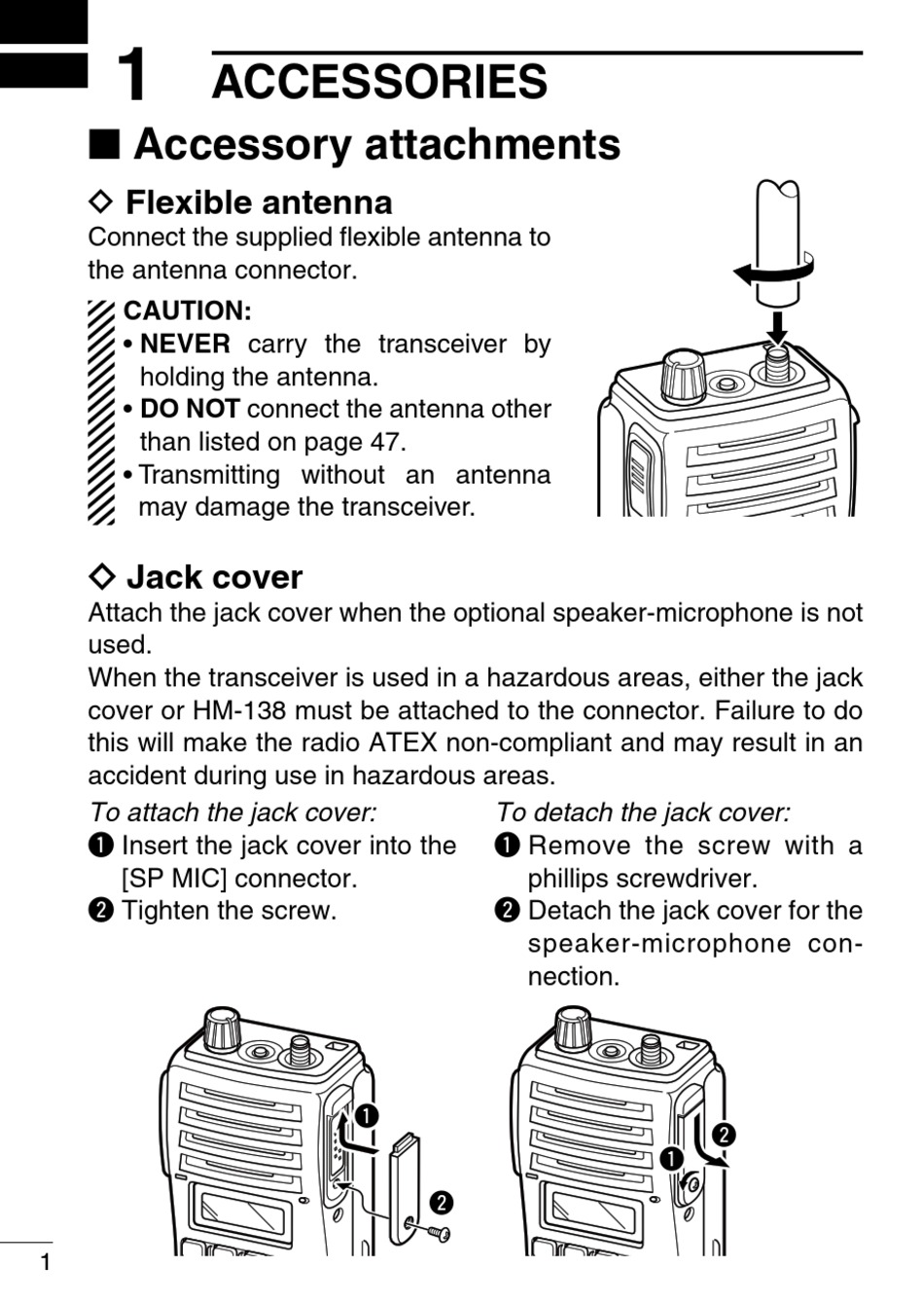

ACCESSORIES

■ Accessory attachments

D Flexible antenna
Connect the supplied flexible antenna to
the antenna connector.
CAUTION:
• NEVER carry the transceiver by
holding the antenna.
• DO NOT connect the antenna other
than listed on page 47.
• Transmitting without an antenna
may damage the transceiver.
ï Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
When the transceiver is used in a hazardous areas, either the jack
cover or HM-138 must be attached to the connector. Failure to do
this will make the radio ATEX non-compliant and may result in an
accident during use in hazardous areas.
To attach the jack cover:
q Insert the jack cover into the
[SP MIC] connector.
w Tighten the screw.
1
To detach the jack cover:
q Remove the screw with a
phillips screwdriver.
w Detach the jack cover for the
speaker-microphone con-
nection.
q
w
w
q
