User Set Mode - Icom IC-F61-L Instruction Manual

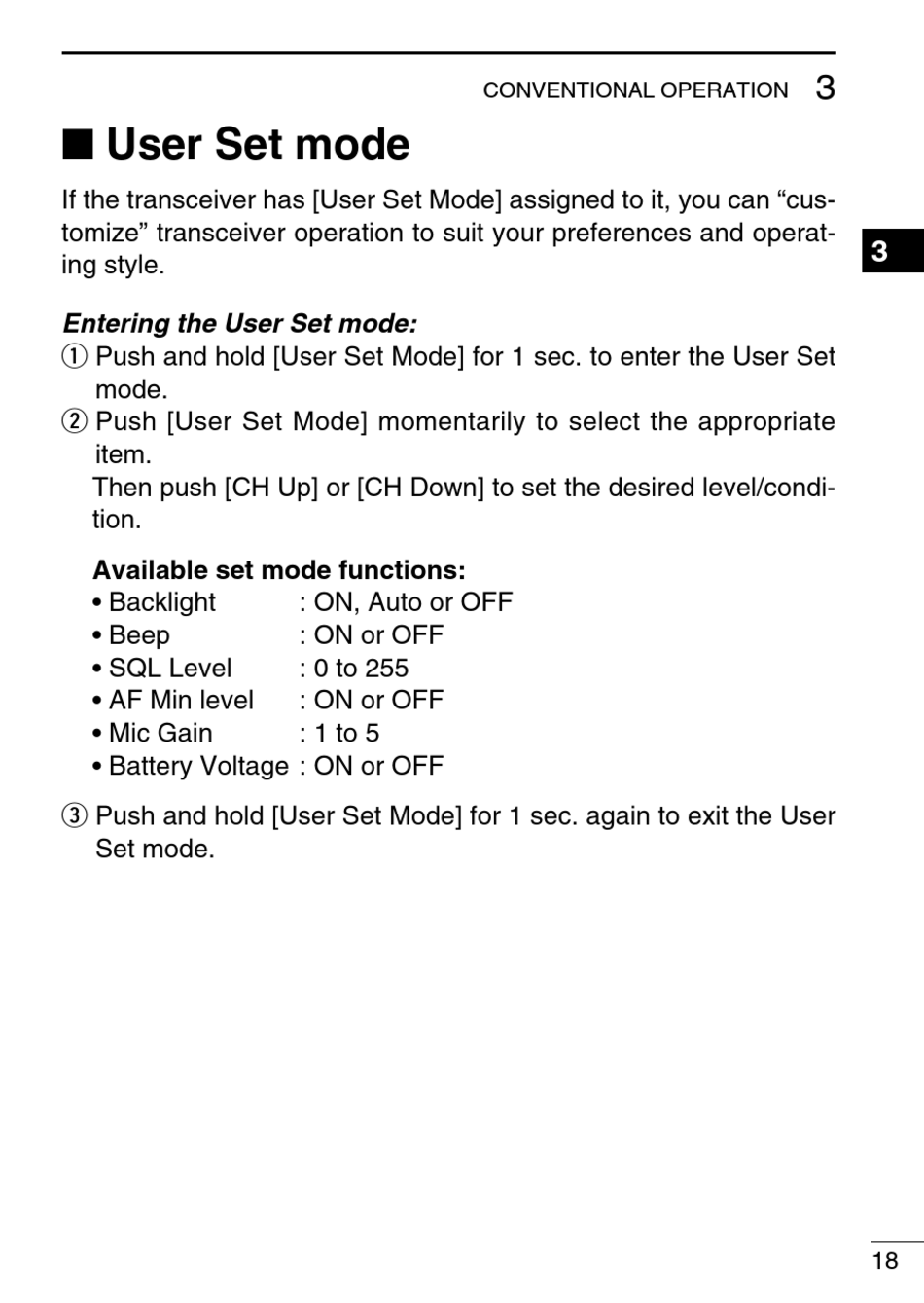

■ User Set mode

If the transceiver has [User Set Mode] assigned to it, you can "cus-
tomize" transceiver operation to suit your preferences and operat-
ing style.
Entering the User Set mode:
q Push and hold [User Set Mode] for 1 sec. to enter the User Set
mode.
w Push [User Set Mode] momentarily to select the appropriate
item.
Then push [CH Up] or [CH Down] to set the desired level/condi-
tion.
Available set mode functions:
• Backlight
• Beep
• SQL Level
• AF Min level
• Mic Gain
• Battery Voltage : ON or OFF
e Push and hold [User Set Mode] for 1 sec. again to exit the User
Set mode.
: ON, Auto or OFF
: ON or OFF
: 0 to 255
: ON or OFF
: 1 to 5
CONVENTIONAL OPERATION
