Summary of Contents for ATEN VC1080

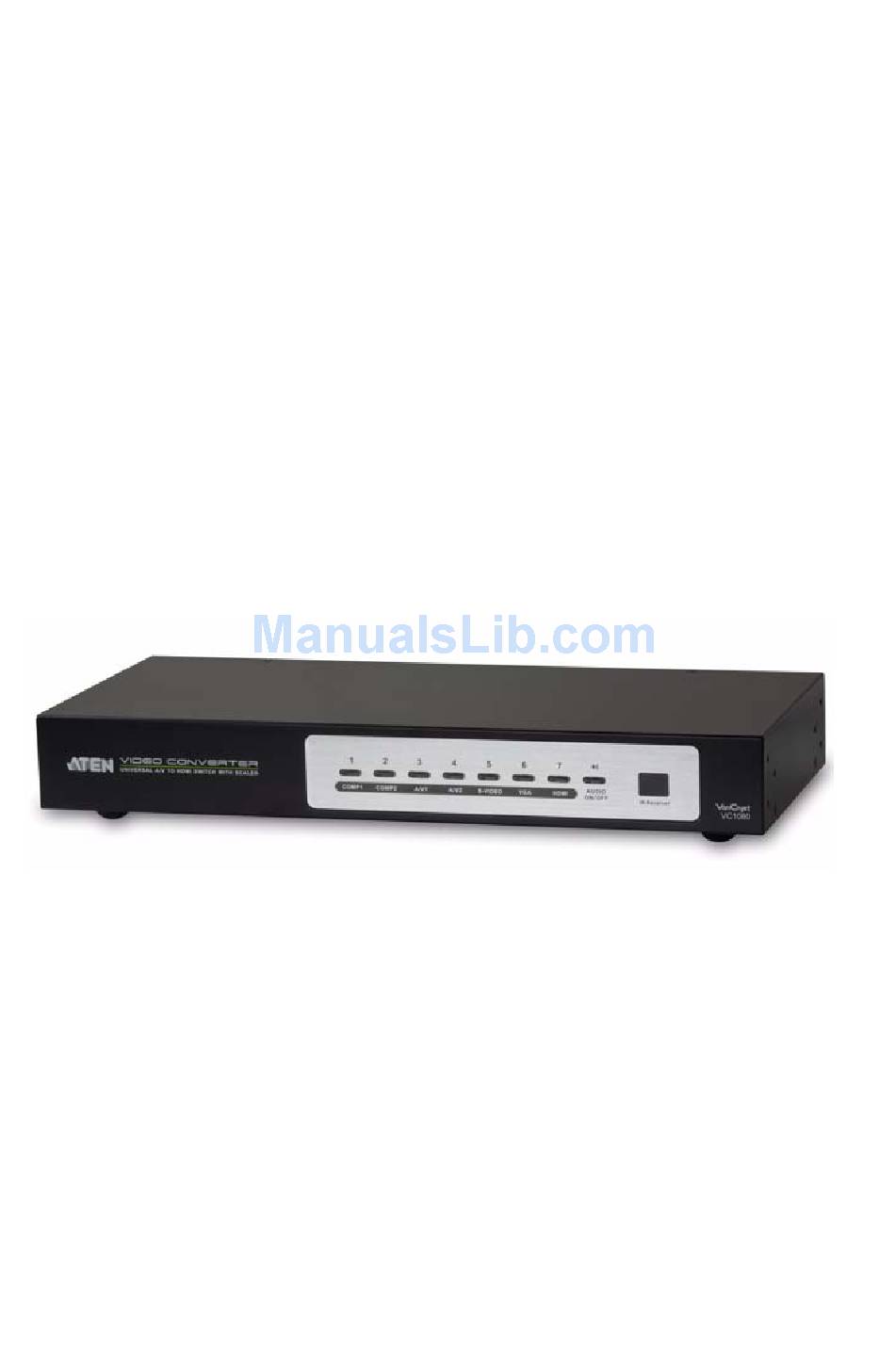

- Page 1 Universal A/V to HDMI Switch with Scaler VC1080 User Manual www.aten.com...
-
Page 2: Fcc Information
VC1080 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
VC1080 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2012–2013 ATEN® International Co., Ltd. Manual Date: 2013-01-04 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VC1080 User Manual Contents FCC Information ..........ii SJ/T 11364-2006. - Page 6 VC1080 User Manual Powering Off and Restarting........23 Appendix Safety Instructions .
-
Page 7: About This Manual
VC1080 User Manual About this Manual This User Manual is provided to help you get the most from your VC1080 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Screen Display (OSD). Front panel LEDs indicate which port is in use and you can quickly toggle between A/V sources without the hassle of disconnecting cables or switching off equipment. The VC1080 supports a distance of up to 15 meters (VC1080 to HDMI display). -
Page 10: Features
(frame buffer 3D motion adaptive video) Supports Smart Video Display technology to match the native resolution of the display for optimized video quality Supports Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports Integrated superior video noise reduction Supports comb filter –... -
Page 11: Requirements
Cables IR extension cable (included in the package) RS-232 cable Note: If you wish to utilize the VC1080’s high-end serial controller function, you will also need to purchase an appropriate RS-232 cable. See Installing the RS-232 Controller, page 11. RCA video/audio cable... -
Page 12: Components
VC1080 User Manual Components Front View Component Description Port LEDs / The SELECTED port’s LED (green) lights up to Pushbuttons indicate that the port is selected. Pressing a port selection pushbutton routes the video source from the corresponding input port to the display. -
Page 13: Rear View
Connect your HDMI display to this port. Power Switch / Plug in the power adapter to the power jack and use the switch to power on the VC1080. Power Jack RS-232 Serial Port This is the serial remote port for input source selection and high-end system control, including firmware upgrade. -
Page 14: Ir Remote Control
VC1080 User Manual IR Remote Control Component Description Up / Down / Left / Press the Up / Down / Left / Right buttons to cycle Right Buttons through the OSD menu and view/select menu options, as follows: Press the Up / Down buttons to cycle through the menu/submenu selections. - Page 15 Press this again to confirm a selection. Press this to power on the VC1080. Press this to power off the VC1080. Port Selection Buttons Press a button to switch to relative input port Menu Press this to enable / disable the OSD menu.
- Page 16 VC1080 User Manual This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground the VC1080 by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. -
Page 18: Installation
VC1080 User Manual Installation Installation of the VC1080 is simply a matter of plugging in the appropriate cables. To install the VC1080, refer to the installation diagram below as you perform the following steps: 1. Use an HDMI cable to connect the HDMI input port on the video display device to the HDMI Out port on the rear of the VC1080. -
Page 19: Installing The Rs-232 Controller
In order to use the RS-232 serial interface to attach a high-end controller (such as a PC) to the VC1080, use a serial cable such as a modem cable. The end connecting to the VC1080 should have a 9-pin male connector. Connect this to the serial interface on the rear of the VC1080. - Page 20 VC1080 User Manual This Page Intentionally Left Blank...
-
Page 21: Operation
Note: Aim the remote control unit at the IR receiver located on the front panel of the VC1080. For optimum performance, make sure there is a clear line-of-sight between the remote control unit and the IR receiver. -
Page 22: Osd Menu
OSD Menu Use the MENU pushbutton on the remote control to view the OSD menu and cycle through the options in the order shown in the table below. The highlighted texts indicate the VC1080’s default setting. Menu Page Sub-Menu Page(s) -
Page 23: Osd Operation
3. Operation OSD Operation Use the remote control to operate the OSD menu. Refer to the IR Remote Control, page 6 for details on how to use the remote control buttons to cycle through the OSD menu, go to submenus, change/adjust the options and make a selection. - Page 24 VC1080 User Manual (VGA video input device) 1. When using a non-VGA video input device, select a preset Picture mode (Standard, Vivid, Cinema, Sports, Game), or choose Custom to manually configure the video display. If you selected Custom, use the scale (1 ~ 100) to set the display settings in the next step.
-
Page 25: Audio Setting
100) to set the horizontal and vertical positions of the screen. Audio Setting Use this screen to configure the VC1080 audio settings. 1. To configure the sound settings, select the preset Sound mode you prefer (Off, Pop or Rock) or use your own sound settings by selecting Custom. -
Page 26: System Setting
Message. Select On to show enable the OSD to display alert messages. Otherwise choose Off. 3. When the VC1080 is not in use, set how long (10 ~ 120 minutes) it waits before it goes into sleep mode. You can select Off to disable this function. -
Page 27: Information
Note: See Supported Resolutions, page 29 to view supported VGA and HDMI resolutions. 3. Version show the firmware version of the VC1080. You can use the IR remote control to display this screen. See IR Remote Control, page 6, for details. -
Page 28: Rs-232 Serial Interface
VC1080 User Manual RS-232 Serial Interface The VC1080’s built-in bi-directional RS-232 serial interface allows system control through a high-end controller, such as a PC and/or home automation/ home theater software package. Configuring the Serial Port The controller’s serial port should be configured as follows:... - Page 29 Port number Description 01-07 port (default is 01) Control Description Turn on the VC1080 Turn off the VC1080 Next Port Previous Port Note: 1. Each command string can be separated with a space. 2. The Port Number command string can be skipped, and the default value will be used.
-
Page 30: Mute Commands
VC1080 User Manual Mute Commands Enable or disable audio coming from the output HDMI port using the following command: Mute Command + Control [Enter] The following tables show the possible values and formats for the Control command: Command Description mute... -
Page 31: Read Commands
Command incorrect - indicates that the command has the wrong format and/or values. Powering Off and Restarting If you power off the VC1080, follows these steps before powering it on again: 1. Power off the attached devices. 2. Unplug the power adapter cable from the VC1080. - Page 32 VC1080 User Manual This Page Intentionally Left Blank...
-
Page 33: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 34 VC1080 User Manual Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock. Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
-
Page 35: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 36: Specifications
VC1080 User Manual Specifications Function VC1080 Connectors Input AV 1/2 Component Video 2 x RCA female (Blue) 2 x RCA female (Red) 2 x RCA female (Green) Audio 2 x RCA female (Red) 2 x RCA female (White) AV 3/4... -
Page 37: Supported Resolutions
Appendix Function VC1080 Environment Operation Temperature 0 - 50°C Storage Temperature -20°C - 60°C Humidity 0 – 80% RH, Non-condensing Physical Housing Metal Properties Weight 1.48 Kg Dimension (L x W x H) 33.50 x 16.13 x 4.40 cm Supported Resolutions... -
Page 38: Limited Warranty
VC1080 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
