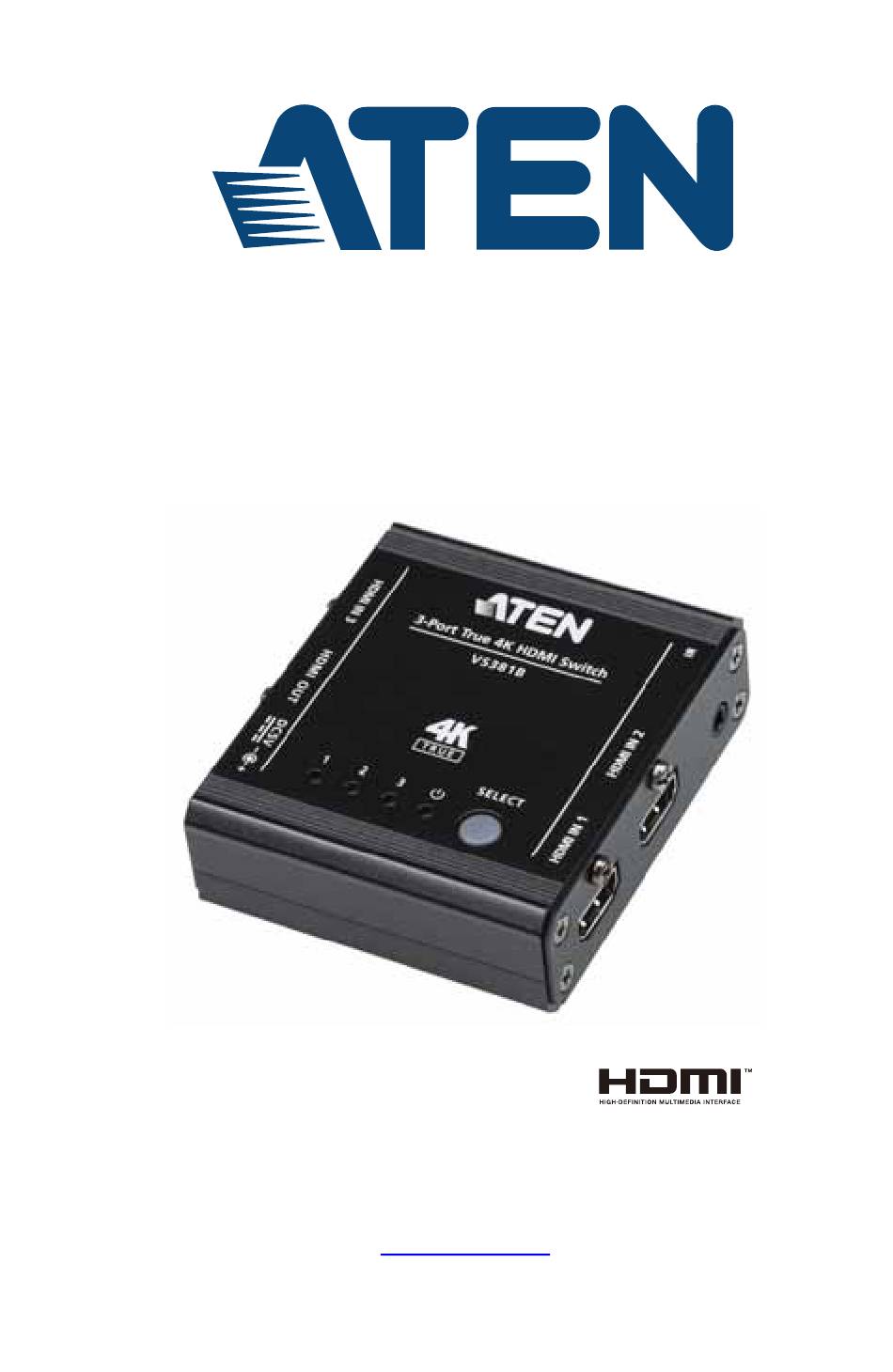

- Page 1 3-Port True 4K HDMI Switch VS381B User Manual www.aten.com...
-
Page 2: Emc Information
© Copyright 2021 ATEN® International Co., Ltd. Released: 2021-01-27 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 3: User Information
VS381B User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
VS381B User Manual Package Contents 1 VS381B 3-Port True 4K HDMI Switch 1 USB to DC power cable 1 IR remote control 1 IR receiver 1 user instructions* Note: Make sure that all the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer. -
Page 5: Table Of Contents
VS381B Installation ........ - Page 6 VS381B User Manual North America ......... . 15 Specifications .
-
Page 7: About This Manual
VS381B User Manual About this Manual This User Manual is provided to help you get the most from your VS381B system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Introduction Overview The VS381B 3-Port True 4K HDMI Switch with Auto Switching allows you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. -
Page 10: Features Need Change
VS381B User Manual Features Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display Supports True 4K resolution video 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) up to 5m input / output ... -
Page 11: Requirements
Chapter 1. Introduction Requirements The following equipment is required for a complete VS381B installation: Source Device HDMI Type A output connector(s) Display Device Display device with an HDMI Type A input connector Cables 3 HDMI cables Note: No cables are included in this package. We strongly recommend that you purchase high-quality cables of appropriate length since this will affect the quality of the audio and video display. -
Page 12: Components
VS381B User Manual Components VS381B Front View Component Description Cable Lock Screw for A universal HDMI cable lock that provides the easiest way to secure an HDMI cable to most HDMI devices. ATEN LockPro IR receiver This receives signals from the IR remote control. -
Page 13: Vs381B Rear View
The power adapter cable plugs in here. Note: We strongly recommend to use USB vis USB to DC cable as the main power source for the VS381B, as the power supply from HDMI connection maybe insufficient for the device to fully operate. -
Page 14: Vs381B Top View
VS381B User Manual VS381B Top View Component Description port LEDs (Green) The selected port’s LED lights green to indicate that the port is selected. power LED (Green) The LED lights green to indicate the unit is receiving power and powered on. -
Page 15: Ir Remote Control
Chapter 1. Introduction IR Remote Control Component Description port up / port down Press the Port Up / Port Down buttons to cycle through buttons the HDMI sources connected to HDMI Input Port 1, 2, and 3. port selection Press a button to bring the focus directly to the source pushbuttons 1 - 3 device attached to its associated port. - Page 16 VS381B User Manual This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
3. Make sure that all devices you will be installing are properly grounded. Installation Installation of the VS381B is simply a matter of plugging in the appropriate cables. VS381B Installation To install the switch, refer to the installation diagram below as you perform the following steps: 1. - Page 18 VS381B User Manual HDMI output device HDMI input device USB to DC power cord rear view front view IR receiver HDMI input device...
-
Page 19: Operation
Note: Whenever the VS381B is powered on and there is no video input source connected, it automatically selects Port 1 as the active port (i.e., the Port 1 LED lights up). You may choose one of the methods outlined below to select a different port as your active port. -
Page 20: Auto Input Switching
HDMI input source connected to HDMI input port 3 is removed. Powering Off and Restarting If you power off the VS381B, follows these steps before powering it on again: 1. Power off the attached devices. 2. Unplug the power adapter cable from the VS381B. -
Page 21: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 22 VS381B User Manual If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. Liquid has been spilled into the device. The device has been exposed to rain or water.
-
Page 23: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... - Page 24 1 x DC Jack Note: We strongly recommend to use USB vis USB to DC cable as the main power source for the VS381B, as the power supply from HDMI connection maybe insufficient for the device to fully operate. Power Consumption Environment Operating Temperature 0–40ºC...
- Page 25 What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
