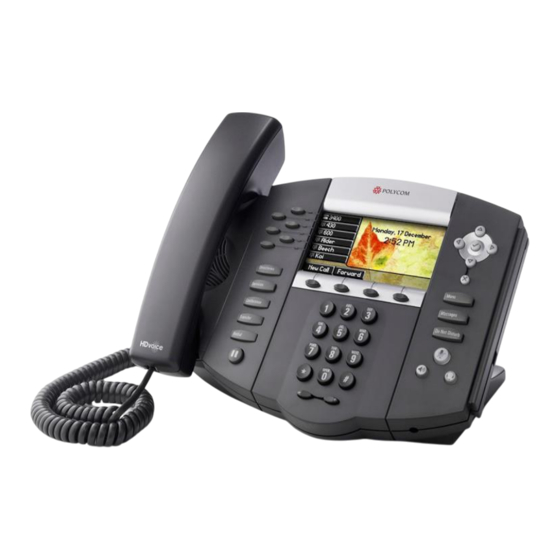

User Guide

®
for the SoundPoint
IP 650 Phone
SIP 3.0
December, 2007 Edition
1725-12648-001 Rev. C
SIP 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoundPoint IP 650 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom SoundPoint IP 650

Summary of Contents for Polycom SoundPoint IP 650

  • Page 1: User Guide

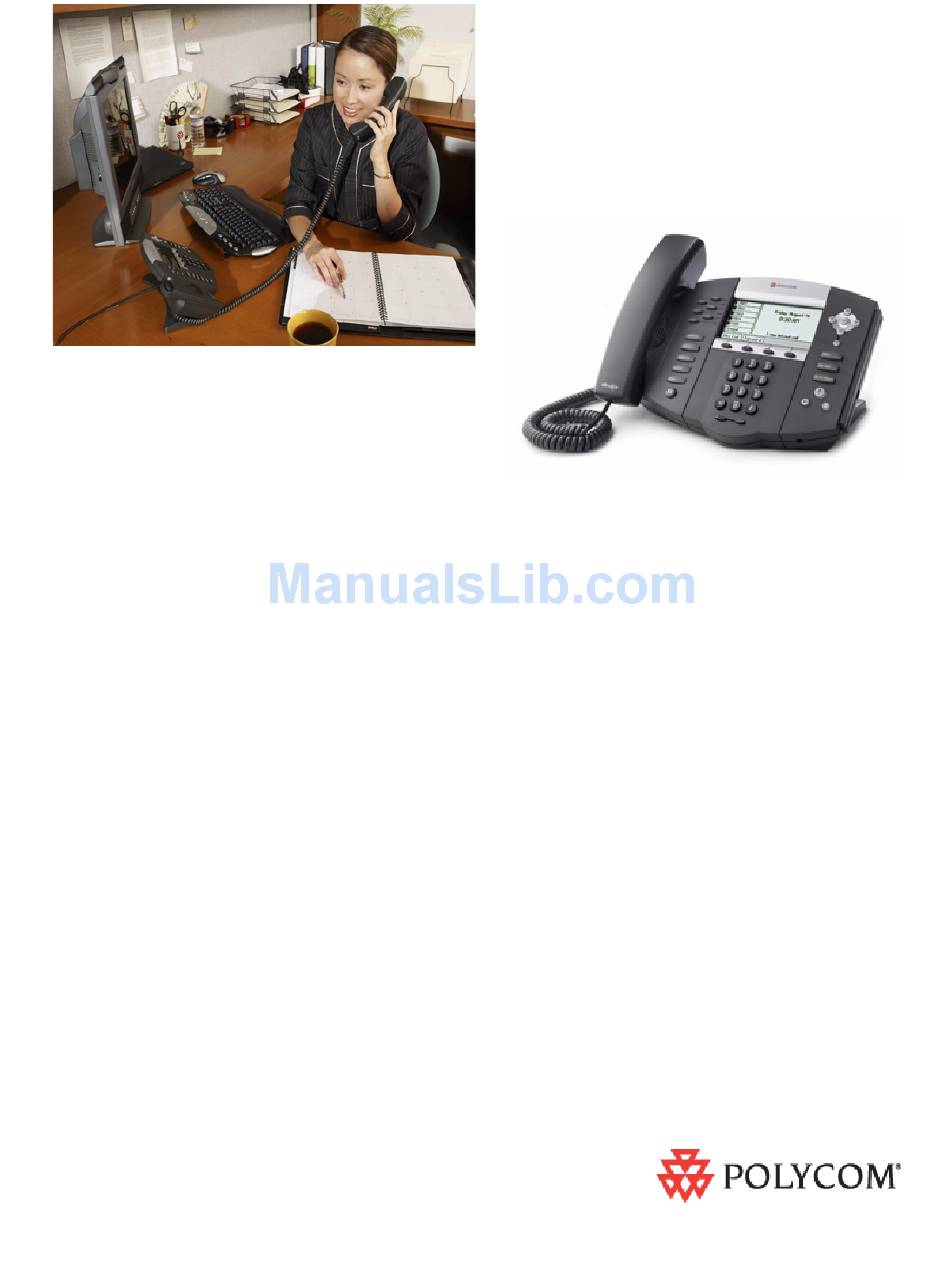

    User Guide ® for the SoundPoint IP 650 Phone SIP 3.0 December, 2007 Edition 1725-12648-001 Rev. C SIP 3.0...
