Eneo GLD-1401 Installation And Operating Manual

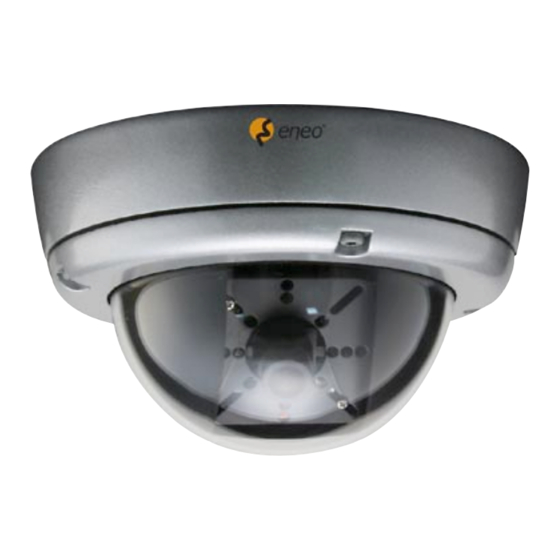

1/3” network colour dome camera, integr. web-server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operating Manual
1/3" Network Colour Dome Camera, integr. Web-Server
GLD-1401


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLD-1401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo GLD-1401

Summary of Contents for Eneo GLD-1401

  • Page 1 Installation and Operating Manual 1/3” Network Colour Dome Camera, integr. Web-Server GLD-1401...

  • Page 2: Table Of Contents

    4. Cable Connections .............................7 4. Configure your IP camera Network Settings ....................9 4.3 TCP/IP Communication Software ......................0 4.4 TCP/IP Installation............................ 4.5 TCP/IP Configuration Setting ........................ 4.6 Connection Testing ..........................3 Operating Instructions for Image Software and Network ...................5 5. Microsoft Internet Explorer ........................6 5. The IP camera eneo GL-Manager ......................43 Advanced Operation ............................65 Specifications ..............................67 Function of Client PC ............................69 Dimensional Drawings ............................70 APPENDIX  - SCAN IP ..............................7 APPENDIX  - IP Camera UPnP ..........................74 APPENDIX 3 - The ARP Function ..........................85 APPENDIX 4 - Register as a DDNS Member .

  • Page 3: Safety Instructions

    1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • P rotect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. Operate the camera only at a temperature range of +5°C to +40°C and at a humidity of max. 80%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • Never point the camera towards the sun with the lens open as this may prevent the sensor functioning. • Do not block ventilation openings. • The fitter is responsible for the system of protection being followed in accordance with the technical data, e.g. by sealing of the cable outlet with silicone. • Only use rust-proof screws should be used to mount the housing and camera outside. • Do not place anything on top of the unit that might spill or fall into it. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Maintenance and repair have to be carried out only by authorized service centers. Before opening the cover disconnect the unit from mains input. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface. In case the dirt is hard to remove, use a mild detergent and wipe gently.

  • Page 4: Product Features

    2. Product Features 2.1 Product Introduction The GLD-40 is vandal-proof and yet easily installable on walls and ceilings in indoor location. Its image data can be seen by users via the Internet. Our dome camera supports many different and specialized functions. Users can with the help of the Internet easily change or modify the settings. This camera is dual-mode and operates MPEG4 or MJPEG video compressions. You can also conveniently adjust the camera‘s direction angles any way you want by simple manual manipulation. The Armor Dome is high-impact and specially coated reinforced polycarbonate. The base is die-cast, of ultra-hard grade aluminum with a painted finish. The camera supports the UPnP protocol which enables a user to easily change settings automatically: just plug the camera to your PC and you‘ll see a pop-up window containing the IP information. Additionally, the camera comes with free 6-channnel surveillance software for this IP dome. This software enables you to access and operate more application functions in your PC. 2.2 General Description • For Indoor Ceiling Surface Mount • Vandal Resistant • Clear Bubble, 00mm • Integrated Lens: F.0/3.6mm • MJPEG and MPEG-4 Video Compression • E-Mail and FTP Transmission of Important Events • Image Frame Rate: Up to 5 Frames/Sec. (PAL) • Integrated Activity Detection • Ethernet Interface: 0/00Base-TX • Supports Various Network Environments • Upgrade via FTP, USB Interface and HTTP...

  • Page 5: Description Of The Device

    3. Description of the Device 3.1 The Surface 1. ETHERNET 10/100 Connector This is a standard RJ-45 connector for 0/00 Mbps Ethernet networks. 2. Plug Inlet: A VDC inlet that connects to an external power supply. 3. VIDEO OUT Connector: The connector provides the unit’s composite video signals to a monitor. 4. ALARM I/O: Red: Alarm In Green: Alarm Reset Black: Ground Yellow: Alarm Out Return to Default: Inside the camera dome, on one side of the PCB board under the lens, is the RESET button. Click it to return to the factory default settings (see picture).

  • Page 6: The Usb Function

    3.2 The USB Function I. Using the USB port Before using the USB function, the user has to remove the cover of the dome. ) Loosen the screws holding the camera mount and then ) carefully lift the cover up. 3) The USB port is in the rear of the lens (see the picture). II. Connecting with a PC By connecting the IP Camera with a PC via the USB connector, the USB Configuration window will show up automatically on the PC screen as below. Network Setting PPPoE Setting DHCP ON DHCP OFF NOTE: You can click the „Launch” button to link to the home page of the device. WARNING: After changing the settings, please click the „Apply”...

  • Page 7: Ceiling Mounting

    3.3 Ceiling mounting When mounting the camera in the plywood ceiling, please follow steps () to (3). Ceiling fix plate Plywood ceiling Screws, 4x 1. Make 4 entry holes in the plywood ceiling as shown above. 2. Install the dome in the ceiling, then attach the supplied „ceiling fix plate” to the camera. 3. Fix the dome to the ceiling using the 4 mounting screws. 4. Network Configuration 4.1 Cable Connections Please follow the instructions below to connect your IP camera to a computer or a network and to choose a proper RJ-45 cable configuration for connections. Physical specification of RJ-45 cable for Ethernet Wire Type Cat. 5 Connector Type RJ-45 Max. Cable Length 00m Hub Wiring Configuration Straight Through or Cross Over PC Wiring Configuration Straight Through or Cross Over...

  • Page 8: Connect To A Computer

    4.1.1 Connect to a Computer Use a straight LAN cable to connect directly to a computer. CROSSOVER CABLE TO PC LAN CARD CROSSOVER CABLE PIN CONFIGURATION 4.1.2 Connect to a LAN Hub (INTRANET) The RJ-45 PIN configuration for connecting with a LAN Hub is shown below. TO PC NETWORK CARD TO NETWORK...

  • Page 9: Configure Your Ip Camera Network Settings

    4.2 Configure your IP camera Network Settings Upon connecting with the network hardware, you need to activate the network function and configure the proper network settings of the IP camera. 4.2.1 Enable DHCP Function This function can only work if the LAN, which the unit is connected to, has a DHCP server. If the DHCP server is working, please connect with the LAN directly; now the IP Camera will obtain an IP address automatically from the DHCP server. In that case, please skip section 4.. (Set IP address) and follow section 4.3 (TCP/IP Communication Software). NOTE: If the LAN has no DHCP server, the camera’s IP address will be assigned of the default 192.168.1.168 after 3 minutes or the unit will request it‘s last assigned IP address after 3 minutes. 4.2.2 Set IP Address You need to set an IP address for the unit if the LAN unit isn’t connected to a DHCP server. Otherwise, please follow the instructions given below:...

  • Page 10: Tcp/Ip Communication Software

    4.3 TCP/IP Communication Software Follow the instructions below to install the TCP/IP communication program into your computer. Click the Start menu from your computer, and point to the Settings/Control panel. Double click the Network icon to enter the windows.

  • Page 11: Tcp/Ip Installation

    Click the Configuration tag, and check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process section 5.5. If it is not included, please follow section 5.4 to install the TCP/IP. 4.4 TCP/IP Installation During the installation, you will be requested to insert the Windows CD-ROM. After installation, the PC may be restarted.

  • Page 12: Tcp/Ip Configuration Setting

    4.5 TCP/IP Configuration Setting Click Start –> Settings –> Control Panel –> Network Select TCP/IP, and then click Properties. Before processing the IP camera installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. If you are using a DHCP server, please select Obtain an IP address automatically. Any assigned IP address for the connected IP Cameras must be in the same class type as the server. If there is no DHCP server, please select Specify an IP address and type in the IP address of your PC. This IP address must be different from other network IP devices but in the same class type. NOTE: The IP address of a IP camera in a network must be unique to itself as opposed to those of the other chosen PCs, but in the same class type.

  • Page 13: Connection Testing

    4.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start –> Programs –> MS-DOS Prompt Type in ping 192.168.1.168 then Enter. (See the sample screen below) • This IP is the IP camera IP address that is assigned for the connected IP camera in step .
  • Page 14 If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installation by repeating steps  to 5. If you still can’t establish the connection after re-checking, please contact your dealer. If you receive a response as in the sample screen below, you have successfully made the connection.

  • Page 15: Operating Instructions For Image Software And Network

    5. Operating Instructions for Image Software and Network Two choices of software are available for linking up with the IP camera: () the Microsoft Internet Explorer; and () the IP camera VIEWER, a network browser in a PC which provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol. The details are listed as follows. System Requirements • Compatible with operating systems such as Windows 000 and Windows XP. • Internet Explorer 5.x or higher. • Non-network modem installation needs Windows PC. RJ-45 PIN configuration for Ethernet PIN NO. PIN Assignment RJ-45 socket TX + TX - RX + Not Connected Not Connected RX - Not Connected Not Connected Physical specification for Ethernet Wire Type Cat.

  • Page 16: Microsoft Internet Explorer

    5.1 Microsoft Internet Explorer 5.1.1 Connecting the IP camera . Start up the Microsoft Internet Explorer, and then follow the steps below to connect the IP camera. . Click the URL block at the top of the window. 3. Enter the URL address of the IP camera into the URL block and press the „Enter” button to enter the home page. 4. Scroll to the bottom of the page, with its four icons, „Image”, „Network”, „System” and „Application”. Whichever you click, the page headlined „Enter Network Password” will appear. 5. Type in the „User Name” and „Password” in the appropriate spaces. 6. Click the „OK” button to set your entries, and automatically exit the page. NOTE: The default „User Name” and „Password” are admin and 9999 respectively. NOTE: The page headlined „Enter Network Password” is shown below. Please enter the user name and password of the IP camera when you see it.
  • Page 17 Browsing images from the IP camera The images from the IP camera will be displayed on the home page while going online with the IP camera. Some buttons provided at the bottom of the home page for further setting. In MJPEG mode or in MPEG4 mode, there are different display formats of its home page. Homepage of MPEG4 mode Homepage of MJPEG mode • Click the Image button to enter the image-setting page. • Click the Network button to enter the network-setting page. • Click the System button to enter the system-setting page. • Click the Application button to enter the application-setting page. • Click the button to change the time/date display mode. • Click the button to switch high/low speed network. • Click the button to archive AVI videos into your PC. Click once again to deactivate. The AVI file will be saved in the path of c:\. • Digital zoom function: Click the left mouse button on the video display area, and it will show the zoom-in images. Double click the left mouse button to see the maximum size. Click the right mouse button on the video display area, and it will show the zoom-out images. Double click the right mouse button to come back to the normal size.

  • Page 18: Change Image Setting

    5.1.2 Change Image Setting Please follow the steps below to change the image setting through the network if and as necessary. . Click the image button on the home page to enter the image-setting page. Image setting page of MPEG4 mode Image setting page of MJPEG mode . Adjust the image setting including „Device Title”, „Resolution”, „Quality”, „Frame rate” (MPEG4 mode only), „Format”, and „Viewer Type” (MJPEG mode only) if necessary. 3. Click the Submit button to submit the new image setting. 4. Click the Fine Tune button to enter the Image Fine Tune page to set the details of the device including: „White Balance”, „Flickerless”, „Mirror”, „High Speed”, „Shutter”, „BLC Mode”, „Backlight”, „Brightness”, „Contrast”, „Hue” and „Saturation”. Click the Default button to reset all the settings. NOTE: The revised image will appear immediately after any change in made.
  • Page 19 5. Click the Privacy Mask button to enter the Privacy Mask page. 6. Click the Home button to return to the home page while the new image setting acts on the images to effect the desired changes instantly. (If the setting has not been changed by the above steps, any (re)entry onto the home page will find images in their earlier or original setting.) Exchange the image format . Tick on one of the formats then press the Submit button. . The IP camera will restart automatically after several seconds. Description of function keys MPEG4 mode Device Title: Type in the camera title in the given space. Resolution: Scroll to choose the image resolution from „VGA” or „QVGA”. Quality: Scroll to choose the image quality out of a spectrum of qualities ranging from „highest”, „high”, „medium” and „low” to „lowest”. In MPEG4 mode, you can also set the quality by typing in the value. The custom quality value must be in the range between 64 Kbps to 89 Kbps. Frame rate: Click the drop-down list to choose the frame rates of „5FPS”, „4FPS” or „5FPS”. Format: Click to choose the „MJPEG” or the „MPEG4” mode. Fine Tune mode Brightness: Enter your desired quality of image brightness from a spectrum of 0 to 55. Saturation: Type in the saturation level in the blank (0 to 55). MJPEG mode Viewer type: Click to choose the viewer type of the „ActiveX” or „AJAX” mode. Submit: Click to submit the new image setting to the IP camera.

  • Page 20: Change The Network Setting

    5.1.3 Change the Network Setting Please follow the steps below to change the network setting through the network if necessary. • Set the network options and IP address . Click the network button in the home page to enter the Network page. . Click ”Enable DHCP” to checkmark the attached box and activate the function. 3. The accessible networks here are the „SNTP”, „DDNS”, „PPPoE”, „UPnP”, „IP Filter” and the „Traffic”. 4. Fill in the „IP Address”, „Netmask”, „Default Gateway”, „Primary Nameserver”, and „HTTP Port” if necessary. 5. Click the Submit button to submit the new network setting. 6. Click the Home button to return to the home page. Description of function keys IP Address: Enter the 4Byte IP Address in the appropriate blank space (the value in each box may be anywhere between 0 and 55). Every IP camera has to own an IP address to be identified on the network. Netmask: Fill in the 4Byte Subnet Mask in the required blank spaces (usually any numbers between 0 and 55). It is used to identify the subnet where the IP camera is sited. Default Gateway: Type in the 4Byte Gateway in the relevant blank spaces (each unit value must be between 0 and 55). Primary Nameserver: Enter the 4Byte DNS Server Address in the blank spaces provided (each value unit must be between 0 and 55). The DNS Server is in charge of translating the Domain Name into the IP Address.
  • Page 21 • Change the Network Setting - FTP Please follow the steps below to change the FTP setting via the network if necessary to upload recording data live. . Click the FTP button at top left to enter the „FTP Server Setting” page. . Type in the „FTP Server” address, the „User Name”, and the „Password” of the FTP Server; and set the „File Upload Path” of the image files when necessary. 3. Click the Submit button to submit the new FTP setting of the recording. 4. Click the Home button to return to the home page. Description of function keys FTP IP Address: Enter the FTP server DOMAIN NAME in the appropriate blank spaces. User Name: Fill in the FTP login user name in the attached blank space (if the data is not provided, warning messages will show up). Password: Type in the FTP password in the attached blank space (if the space is blank, warning messages will show up). File Upload Path: Enter the file upload path while doing the FTP. Submit: Click to submit the new FTP setting to the network camera.
  • Page 22 • Change the Network Setting - SMTP Please follow the steps below to change the SMTP setting through the network if necessary. . Click the SMTP button at upper left above to enter the „SMTP Server Setting” page. . Click ”My Server Requires Authentication” to checkmark the attached box and activate the function. 3. Fill in the Sender name, DOMAIN NAME of the SMTP server, and set the recipient’s e-mail address if necessary. 4. Click the Submit button to submit the new SMTP setting. 5. Click the Home button to return to the home page. Description of function keys Account Name & Password: Fill in the account name and password if you check marked the „My Server Requires Authentication” function SMTP Server: Enter the SMTP server DOMAIN NAME in the given blank space. Email Address: The recipient’s e-mail address Submit: Click to submit the new SMTP setting to the Network camera.
  • Page 23 • Change the Network Setting - SNTP Please follow the steps below to change the SNTP setting through the network if necessary. . Click the SNTP button at upper left above to enter the „SNTP Server Setting” page. . Enter the IP Address of the SNTP server, and choose one of the time zones as and when necessary. 3. Click „Automatically Adjust for Daylight Saving Time Changes” to checkmark the attached box and activate the function. 4. Click the Submit button to submit the new SMTP setting. 5. Click the Home button to return to the home page. Description of function keys SNTP Server: Enter the SNTP server DOMAIN NAME in the blank space provided. Time Zone: As we know, the globe is divided into various time zones. The user must enter his/her time zone. If this is not done, the time given by the unit may be incorrect. Submit: Click to submit the new SNTP setting to the IP camera.
  • Page 24 • Change the Network Setting - DDNS The „Network” page has, on its upper left, the „DDNS” icon. Please follow the steps below to change the DDNS setting through the network if and as necessary. . Click the DDNS button at upper left above to enter the „DDNS Setting” page. . Click the „Enable DDNS Function” to checkmark the attached box and activate the function. 3. Click „DDNS Type” to open the list of two DDNS modes to choose from: „DynDNS” and „hn”. Click the „Apply” button and connect their website automatically and visit it. Type in your dynamic IP Address and Email Address. If they are accepted by the website, you will get an Email containing your DDNS Account and DDNS Password in your Email box. 4. Type in the „DDNS Host Name”, the „DDNS Account” and the „DDNS Password”. 5. Click the Submit button to submit the new setting. 6. Click the Home button to return to the home page. NOTE: Please refer to section 5.1.6 (PPPoE & DDNS) for more details. Description of function keys Enable DDNS Function: Checkmark to activate the function DDSN Type: Click to open the list of two DDNS modes to choose from: „DynDNS” and „hn”.
  • Page 25 • Change the Network Setting - PPPoE The „Network” page has, on its upper left, the „PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network if necessary. . Click the PPPoE button at upper left above to enter the „PPPoE Setting” page. . Click the „PPPoE mode” to activate the function. 3. Type in the PPPoE „Account” and the PPPoE „Password”. 4. Click the Submit button to submit the new setting. 5. Click the Home button to return to the home page. NOTE: Please refer to section 5.1.6 (PPPoE & DDNS) for more details. Description of function keys PPPoE mode: Click your choices to enable the PPPoE function Account: Enter it in the given space. Password: Enter it in the required space.
  • Page 26 • Change the Network Setting - UPnP The „Network” page has, on its upper left, the „UPnP” icon. Please follow the steps below to change the UPnP setting through the network if necessary. . Click the UPnP button at upper left above to enter the „Universal Plug and Play” page. . Click „Enable UPnP” to checkmark the attached box and activate the function. 3. Type in the UPnP „Max Expired Age”, the „SSDP Port” and the „UPnP Port”. 4. Click the Submit button to submit the new setting. 5. Click the Home button to return to the home page. Description of function keys Max Expired Age: Enter it in the given space from a range of 0~3600. SSDP Port: SSDP stands for Simple Service Discovery Protocol. SSDP searches for upstream Internet gateways using UDP port 900. UPnP Port: Type in the UPnP Port in the attached space. Submit: Click to set.
  • Page 27 • Change the Network Setting - IP Filter The „Network” page has, on its upper left, the „IP Filter” icon. Please follow the steps below to change the IP Filter setting through the network if necessary. . Click the IP Filter button at upper left above to enter the „Network Setting” page. . Click „Enable IP Filter” to checkmark the attached box and activate the function. 3. Select the Default policy. 4. Set the Allow/Deny IP Filter policy and enter its IP address. 5. After setting the policies, they will be shown on the Policy List. The user can use the „Up” or „Down” to select a policy and use the „Delete” button to erase it. 6. Click the Submit button to submit the new setting. 7. Click the Home button to return to the home page. NOTE: The settings of the IP Filter must be correct or you may not able to operate the device regularly. In case of the wrong setting of the IP Filter and you can’t access the device normally, please press the „Default”...
  • Page 28 • Change the Network Setting —Network Traffic. The „Network” page has, on its upper left, the „Traffic” icon. Please follow the steps below to change the Network Traffic setting through the network if necessary. . Click the Traffic button at upper left above to enter the „Network Traffic” page. . Type in the „Maximum Upload Bandwidth” and the „Maximum Download Bandwidth”. 3. Click the Submit button to submit the new setting. 4. Click the Home button to return to the home page. Description of function keys Maximum Upload Bandwidth: Enter it in the given space from a range of 0 to 0400. Maximum Download Bandwidth: Enter it in the required space from a range of 0 to 0400. Submit: Click to set.

  • Page 29: Change The System Setting

    5.1.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network if necessary. • Set the Date and Time of the system . Click the System button in the home page to enter the „Date and Time” page (default). . Choose one of the three modes shown on the page to set the Date and Time of the system. The three modes are „Set Manually”, „Synchronize With Computer Time”, and „Synchronize With SNTP Server”. 3. Click the Submit button to submit the new Date and Time setting. 4. Click the Home button to return to the home page. Description of function keys The Local Time: Shows the current date and time of the Network camera. Set Manually: Manually sets the date and time of the network camera. Synchronize With Computer Time: Synchronizes with the linking computer. Synchronize With SNTP Server: Synchronizes with the SNTP server. In this mode, two choices of adjusting are provided: doing it manually or setting the frequency to enable the system to do it automatically.
  • Page 30 • Change the System Setting - Timestamp Please follow the steps below to change/add the timestamp through the network if necessary. . Click the Timestamp button on the left side of the „System - Date and Time” page to enter the „System- Timestamp” page. . Click „Enable Timestamp” to checkmark the attached box and activate the function 3. Add or modify any timestamp’s data if necessary. 4. Enter the „Timestamp Color” you have chosen. 5. Enter the „Timestamp Location” you have chosen. 6. Enter the „Timestamp Format” you have chosen. 7. Click the Submit button to submit the new user’s setting. 8. Click the Home button to return to the home page. Description of function keys Enable Timestamp: Checkmark to activate the function. Timestamp Color: Click to open the list of eight color modes to choose from: „BLACK”, „WHITE”, „RED”, „ORANGE”, „YELLOW”, „GREEN”, „BLUE”, and „PURPLE”. Timestamp Location: Click to open the list of four location modes to choose from: „UPPER LEFT”, „UPPER RIGHT”, „BOTTOM LEFT”, and „BOTTOM RIGHT”. Timestamp Format: Click to open the list of six format modes to choose from: „YY/MM/DD”, „MM/DD/YY”, „DD/MM/YY”, „YY/MM/DD TITLE”, „MM/DD/YY TITLE”, and „DD/MM/YY TITLE”.
  • Page 31 • Change the System Setting - Users Please follow the steps below to change/add the users’ authority through the network if necessary. . Click the Users button on the left side of the „Date and Time” page to enter the „System - Users” page. . Add, modify or delete any user’s data if and as necessary. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. Description of function keys User List: The list shows the registered user(s) and the corresponding authority. Delete: Deletes the user selected. Name: Enter the user’s name, which will be added or modified Password: Enter the new password of the user’s name above. Confirm: Type in the password again for verification. Authority: Choose an authority option of the user’s name from: Admin, Operator, and Viewer. Submit: Click to submit the new setting to the network camera.
  • Page 32 • Change the System Setting - Digital I/O Please follow the steps below to change the Digital I/O through the network if necessary. . Click the Digital I/O button on the left side of the „Date and Time” page to enter the „Digital I/O Setting” page. . Mark the „Digital Input” „ON” or „OFF” and the „Digital Output” „ON” or „OFF”. Click your choices to enable. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. Description of function keys Digital Input: Select „ON” or „OFF” to use the GPIO connector, or shut it down. Digital Output: Select „ON” or „OFF” to use the GPIO connector, or deactivate it.
  • Page 33 • Change the System Setting - Update Firmware Please follow the steps below to update the firmware through the network if necessary. . Click the Update Firmware button on the left side of the „Date and Time” page to enter the „Update Firmware” page. . Click the „Browse…” button to select the UPDATE.BIN file which was copied into your computer. 3. Click the „Update” button. 4. DO NOT power off the Network camera while this update process is running. NOTE: Don’t interrupt the process while the unit is updating itself. NOTE: Please make sure that the UPDATE.BIN file is fit in with the model of the unit. Updating with the wrong UPDATE.BIN file may cause any physical damage to the device.
  • Page 34 • View the Event Logs Please follow the steps below to view events through the network if necessary. . Click the Events button on the upper left above to enter the „Event Log” page. . Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled „First Page”, „Previous 0”, and „Next 0”. Description of function keys First Page: Displays the first page Previous 20: Displays the previous 0 pages Next 20: Displays the next 0 pages...

  • Page 35: Change The Application Setting

    5.1.5 Change the Application Setting Please follow the steps below to change the application setting through the network if necessary. • Change the Application Setting - FTP Application Setting (MJPEG mode only) Please follow the steps below to change the FTP setting via the network if necessary to upload recording data live. . Click the Application button on the home page to enter the „FTP Application Setting” page (default). . For the storage setting, type in the required number of images you wish to set in the „Pre- Alarm Memory Buffer” and the „Alarm Memory Buffer” respectively in their corresponding blank spaces. 3. Enter the „Upload Rate” you have chosen. 4. Click Submit after each of the above entries for their setting. 5. Click the Home button to return to the home page. Description of function keys Pre - Alarm Memory Buffer: Fixes the desired number of images to prelude an alarm. Alarm Memory Buffer: Determines the selected length of the image buffer after an alarm. Upload Rates: Sets the upload speed rate.
  • Page 36 • Change the Application Setting - SMTP Application Setting Please follow the steps below to change the SMTP setting via the network if necessary. . Click the SMTP button on the left side to enter the „SMTP Application Setting” page. . Enter the attached file number as and when necessary. The maximum number which can be used is 8. 3. Click the Submit button to submit the new SMTP setting of the recording. 4. Click the Home button to return to the home page. Description of function keys File numbers: Sets the quantity of images per Email.
  • Page 37 • Change the Application Setting - Language Setting Please follow the steps below to change the Language setting via the network if necessary. . Click the Language button on the left side to enter the „Language Setting” page. . You have an option as to which language to use. The default is „English” 3. Click your selected language and click „Submit” to set it.
  • Page 38 • Change the Application Setting -Record Application Enable Setting Please follow the steps below to change the setting via the network if necessary. . Click the Enable Record button on the left side of the record to enter the „Record Application Enable Setting” page. . Click „Enable Record - UPLOAD Via FTP” to checkmark the attached box and activate the function 3. Click the Submit button to submit the new setting of the recording. 4. Click the Home button to return to the home page. Description of function keys Enable Record - Upload Via FTP: Activates or deactivates the recording to the FTP server.
  • Page 39 • Change the Application Setting -Record - Schedule . Click the Application button on the home page to enter the „Schedule” page. . Check/uncheck any/all of the first seven boxes set vertically in the upper half of the „Schedule” page to enable/disable the programmed recording function, and vary the setting of the targeted item while it is enabled. 3. Click the Submit button to submit the new schedule setting. 4. Click the Remove All Schedules button to clear out all the data of the schedule setting. Description of function keys Schedule: Check / uncheck the first seven boxes in a vertical row on the left to enable/disable the programmed scheduled recording function if necessary. Vary any of the schedules of the recording setting if necessary (please refer to the above description). Chart: Schedule list Submit: Click to submit the new setting to the Network camera. Remove All Schedules: Click to clear out all the data of the schedule setting.
  • Page 40 • Change the Application Setting - Alarm Application Enable Setting Please follow the steps below to change the setting via the network if necessary. . Click the Enable Alarm button on the left side of the record to enter the „Alarm Application Enable Setting” page. . Click „Enable Alarm – Trigger an Alarm When Ethernet Is Lost” to checkmark the attached box and activate the function. 3. Click „Enable ALARM - Upload via FTP” to checkmark the attached box and activate the function. 4. Click „Enable ALARM - Upload Via SMTP” to checkmark the attached box and activate the function 5. Enter the „Alarm Duration” you have chosen. 6. Click the Submit button to submit the new setting of the recording. 7. Click the Home button to return to the home page. Description of function keys Enable ALARM - Trigger an Alarm When Ethernet Is Lost: Activates or deactivates the alarm triggering while the Ethernet lost. Enable Alarm - Upload via FTP: Activates or deactivates the alarm recording upload to the FTP.
  • Page 41 • Change the Application Setting - Alarm - Motion Detection Please follow the steps below to enable changes in the motion detection function of the alarm through the network if necessary. Set the motion detection: . Click the Motion Detection button on the left side of the Alarm to enter the „Motion Detection” page. . Click and drag the mouse across a targeted zone to draw a red rectangle on the image (coordinates provided below). NOTE: You can set more than one targeted zone depending on your requirement. 3. Enables / disables the motion detection function. 5. Set up the signal level. 6. Click the Submit button to submit the new setting of the recording. 7. Click the Home button to return to the home page.
  • Page 42 5.1.6 PPPoE & DDNS Using the PPPoE . Install the XDSL software (obtained from your ISP dealer) in your PC. . Search your IP camera’s IP address: you can use your Network Viewer’s Scan IP program, or just connect the LAN CAM and the Video monitor. The monitor screen will show the IP address on its right side. 3. Change the switch on the LAN CAM’s side panel to position 4. 4. Installing an IP address in your PC or notebook. Desktop –> Move the mouse focus to the Network neighborhood and click the right key of the mouse –> Choose the properties –> Choose your local connection –> Choose the properties and select the configuration –> Select the TCP / IP –> Choose the properties –> Type in the IP address in a four - part formula, for example „9. 68. .0” (the first three parts must be identical to the above numbers, only the last part can be changed to your own number, which must never exceed 55) –> Click the mask and the mask input, namely „55. 55. 55. 0” (a fixed formula) –> Click „OK” –> Click „OK”. 5. Desktop –> Choose IE browser –> Type in the IP camera IP address in the URL (check step  above) –> Enter –> IP camera images will appear. PPPoE Settings . Enter the IP Camera home page –> Choose the network –> Type in „User Name: admin” and „Password: 9999” –> Click „OK’. . Choose PPPoE –> PPPoE mode: Select „ON” –> Type in „Account” –> Type in „Password” –> Submit –> Unplug the power connection. 3. Plug in the IP camera and it will receive an IP address from the ISP dealer (this IP address is dynamic - every time you unplug and plug in again you’ll get a new IP address). Test: Go to the Internet. . Set your PC to enter the Internet.

  • Page 43: The Ip Camera Eneo Gl-Manager

    5.2 The IP camera eneo GL-Manager This section provides instructions for installing and using the eneo GL-Manager and Image Viewer, which are included with the IP camera. The programs can be operated by a selected PC equipped with the following requirements. System Requirements • Intel Pentium .5GHz processor or above (.8GHz or higher recommended). • 8MB RAM at least (56MB or higher recommended). • Windows 000, XP or above. • 4MB VGA card capable of 4Bit true color display. • 00MB free hard-disk space for software installation. • 0/00 Base-TX network for LAN operation. • The Microsoft Internet Explorer 6 above. In the multi-channel recording mode, the HD data transfer rates must be 66MB or above (00MB or higher recommended). 5.2.1 Introduction to eneo GL-Manager The eneo GL-Manager allows you to access many units of the IP camera from a remote desktop or a laptop in a TCP/IP networking environment. It can perform the following functions. • View live images from the IP camera. • Store, search, and review recorded video from an FTP server, PC, and SD card. • Change a regular record, event record, and timer properties. Before you are ready to view images from a desktop, you need to have your IP camera networked by obtaining a 0/00 base-TX Ethernet data cable (Standard RJ-45) to connect the IP camera to your LAN/WAN. Now enter the...
  • Page 44 5.2.2 Install the eneo GL-Manager in your PC Install the eneo GL-Manager from the supported CD-R . Exit all applications currently running in the selected PC. . Insert the supported CD in the CD-ROM drive. The program will execute the installation automatically. Follow the on-screen instructions to proceed with the rest of the installation procedure as they appear. NOTE: It will update the .NET Framework to version 2.0 automatically. Please click „Accept” to continue. 3. After the installation is complete, pop up the START menu from your computer, and point to Programs / eneo GL-Manager / eneo GL-Manager to open up the program selection page as shown below.
  • Page 45 5.2.3 IP camera software Login the IP camera software Once the eneo GL-Manager is executed, a Login prompter will appear. You must enter the default User Name: admin, and the password: 9999 in the respective spaces. Click the „OK” button and enter the console page of the eneo GL- Manager: both the user name and password must be entered correctly. Click the „Cancel” button and exit the login of the Network Viewer. View the Network camera video from a remote PC Follow the instructions below to use the eneo GL-Manager to browse a IP camera video from a remote location. Upon entering the eneo GL-Manager, a connection box will appear as follows.
  • Page 46 . Press the button to enter the Settings page. . Press the button to add a new device group. After typing the Group Name, please press the OK button. 3. Add a channel from the button. 4. (1) Click the Auto-Search button at the bottom of the „Connect Network Camera Wizard” page to discover the connection of the network camera - type device in the LAN. Instantly the „Search Network Camera „ page will appear. Click the device of your choice and click „Select” at the bottom of the page to access the „Connect Network Camera Wizard” page again. (2) Type in the IP Address or the domain name and HTTP port of the device and add the device to the Device List. 5. Type in the Password in the „Connect Network Camera Wizard „ page. Click „Next” button to open another „Add Device Wizard” page.
  • Page 47 6. This page provides the IP Address, the device type, and the MAC Address. After typing the Device Title and selecting the Connect Mode, please click the „Next” button to access the next „Connect Network Camera Wizard” page. NOTE: Please click the icon to see the details of the Connect Mode. 7. After finishing the setting of the Device Recording, please click the „Finish” button to establish the connection between the device and the computer. 8. Click the device title to begin viewing images with this camera from the Device List. NOTE: To add more connections or units to the network camera, please repeat the above instructions.
  • Page 48 5.2.4 Operation 5.2.4.1 Live Monitor Once the connection has been established, click the button to enter the Live Monitor window. (See the sample screen below.) On the left side of the window is the connected device that has been arranged when you established the connection. . The Live Monitor icon: • Add a camera video onto the Live Monitor area: () Click on the title of the camera that was connected. () Hold down the right mouse button and drag onto the droppable Live Monitor area. The video from the new camera will be displayed. (3) In the Live Monitor area, if you want to exchange the videos of different cameras, you can drag the video and drop it where you want to locate the video. . The Split-Screen display function bar: This allows you to display the connected device in the single channel and multi-format screens. 3. The Sequence configuring button: Press to enter the sequential jumping mode, each multi-screen, and one sequence; the picture will sequentially switch to different channels according to the Sequence Views setting (refer to 6..4.3).
  • Page 49 7. Pop-menu: You can use the mouse to move to each channel. Click the right key of the mouse to show a window. You can select „Delete”, „Capture / Print”, „Play/Stop Audio” or „Reexamine Audio Mechanism”. 8. Motion on/ Alarm on: The warning icons Motion-on icon: When there is a detection of motion in any channel, it will display this icon in the right upper corner of that channel to warn the user. Alarm on-icon: When there is a detection of external devices such as a sensor, it will display this icon on the upper right corner of that channel to warn the user. 9. Click this button to hide the „devices list”, „common” and „alarm message list” boxes from view behind the video display screen. 0. The section in the upper left margin will show the information in all the devices and its group names. The users can click and hold on the device title on the list and drag it to the Live monitor area to see the live image of the camera. . Common icons: Play Audio: No function Record: Click the button to archive AVI videos into your PC. Click once again to deactivate. In the recording mode, there will appear a red twinkling icon in the upper-right hand corner of the image. Capture / Print: Provides the image capturing and printing functions Delete: Drop the view here to delete it. • Delete a camera video from the Live Monitor area: () Select the video of the camera which you want to delete.

  • Page 50: Playback Viewer

    5.2.4.2 Playback Viewer Press the button to enter the Playback Viewer setting page. . The Playback Viewer icon . The display area 3. Click to choose the The alarm events which were recorded will be marked in pink colour. Recording List Live Event Message Click to refresh the recording list.
  • Page 51 NOTE: To view the alarm lists of a camera which were recorded, please (1) click the icon (2), the Alarm List window will appear as shown below, (3) select a camera from the drop-down list, then (4) click the „Search” button. 4. Move to left/right area.
  • Page 52 • Play Rate: During play mode, please use the scroll bar to control the show speed. 7. Shows the device title 8. This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH/DAY/YEAR/HOUR/ MINUTE you wish to search and click to proceed. 9. Functions to fit the starting and ending points of an image display, when the user wants to transfer a file. JPEG: Archives images in the JPEG format to save a single picture in every file. AVI: Archives images in the AVI format to save a sequence of images in a file. 0. Scroll bar for video searching: Drag the square on the bar to search the video. You can click or pull the indicator on the scroll bar to the point you want to see. . Displays the recording mode of the video on the histogram . Press the button to see the Histogram Legend. You can get the event’s location in terms of time, and select a group of events or period from the event histogram area and show it on the display area.
  • Page 53 5.2.4.3 Setting Press the button to enter the Setting page. . The Setting page . Function buttons: Add a new device group. Click this button and type in the new group, then press „OK” to save it. Remove a device group. Click this button and select the group name, then press „OK” to delete the group. Add a new camera. For more details please refer to section 5..3. Remove a camera. Click this button and select the group name and Lan camera, then „OK” to delete the device. To edit camera. Please select a device then click this button to edit the device.
  • Page 54 Device setting: Provides three pages of setting 1. Device Setting page 2. Image Setting page 3. Alarm Setting page NOTE: Please remember to click the „Apply” button to save the settings. System Setting: Provides six pages of settings: the Global Settings, the Event Notification, the Recording Settings, the Scheduler, the Sequence Views, the Speed Dome and the Authority Setup.
  • Page 55 (1) Global Settings • Monitor setup: Sets the date/time mode, display mode, and controls the CPU use percentage on five levels. • Default Directory: Sets the default files’ saving path. Click to select the directory. (2) Event Notification • Channel Prompt: Sets each camera to activate or deactivate the three modes of „Motion Buzzer”, „Sensor Buzzer”, and „Alarm Focus”. Tick mark the blank space for each device to activate it.
  • Page 56 • Popup Message: Sets the maximum number of the pop-up messages, the displaying time and the pop-up forms. Tick mark the blank space for each device to activate it. • E-mail Notice: Sets each camera to activate the E-mail Notice function of the three situations: „Motion Alarm”, „Sensor Alarm”, and „DISK Full”. Set the SMTP, the E-mail address and the attached file numbers to mail the user when the alarms occur. Tick mark the blank space for each device to activate it.
  • Page 57 (3) Recording Settings • Recording settings: You can control the HDD reserved space by using the scroll bar. • Recording quota setting: Set the maximum recording quota of each channel. (4) Scheduler () Choose one of the devices to set its recording schedule. () Select the period: Click to set to record only once or record every day. (3) Select the recording time: Sets the periods of time in recording. Select the Begin time and the End time then the time markers will display above. Please use the up (increase) and down (decrease) arrows to adjust the setting. Add the selected period schedule. You can also hold down the left mouse button to drag a period. Erase the selected period schedule. You can also use the right mouse button to cancel the period.
  • Page 58 (4) Select the recording mode. (5) Press to show the scheduled recording list. (6) Set the secondary schedule: Activate or inactivate the other recording modes besides the primary schedule. (7) Option buttons: Undo: Undo the latest changes. Clear: Clear all the schedule markers in the current editing area. Save: Apply the changes. Close: Close the window. (5) Sequence Views This function enables you to use four modes to set the sequence of displays you want for the Sequence Mode of the Live Monitor. The user has to modify the „Sequence Views Setting” to make it work. For example, if you want to see the 4-window sequence, please follow the steps given below: Step 1: Click the Sequence Views button to enter the Sequence Views setting page. Step 2: Select the „4 SEQ views” and the 4-windows will show in the Location Setting area. Step 3: Select one of the four channels (Location-4), then click the „Setting” button.
  • Page 59 Step 4: The 4 SEQ View(s) page will show below. Choose the device(s) and set the Dwell Time (3-30 seconds) from the drop-down list, then press the „Confirm” button. Step 5: Set the other channels as in step 3-4. Step 6: Click „Save all” button, then press „Close” button to exit the setting page. Step 7: Open the Live Monitor page, then click the (4 SEQ views) button to see the 4-window sequence. (6) Speed Dome • Tick mark to activate the Speed Dome Controller function of the selected channel. The user can set the model, ID and the protocol here.
  • Page 60 • Click „Configure” to enter to the RS3 and RS485 setting page. (7) Authority Setup Authority setup: Change or add the user’s authority. There are three different levels of authority , namely Admin, Operator and Viewer.
  • Page 61 5. List of cameras and its groups: The users can use the icons above the list to change the groups’ names, the devices’ titles and the channels’ display modes. 6. Display area: Click the title of the camera, and you will see the live image in this area. 7. Device Recording: Click the „Start Record” button to start the recording mode and click the „Config Record” button to set the details of the recording below. 8. Status of the speed dome controller 9. You can interchange between two buttons here: the „Device Panel” and „Web page” buttons. The web page (please refer to section 5. for more details):...
  • Page 62 0. Device information: The user can read a camera’s information, such as „Site Name”, „Group Name”, „IP Address”, „HTTP Port”, „Device type”, „Monitor Alarm Process” and the „Connect Mode”. . Recording Scheduler: Shows the recording information of the selected channel. 5.2.4.4 Lock Press the button to lock the operation of this software and the eneo GL-Manager monitor will be minimized into the systray * of the Windows taskbar. To unlock the command, please click the button once, then type in the correct password. * The Microsoft Windows systray is a portion of the Windows 95, Windows 98, Windows ME, Windows NT, Windows 000, and Windows XP Operating Systems that helps display running programs. The systray is located on the taskbar and is commonly in the bottom right hand corner of the screen next to the time display. 5.2.4.5 Logout Press the button to logout the eneo GL-Manager software and the eneo GL-Manager monitor will be minimized into the systray of the Windows taskbar. If you want to return to the eneo GL-Manager monitor, please click the button once, then select the page which you want to get in. After typing in the correct user name and password, you can re-login to the software. 5.2.4.6 Tray Press the button to minimize the eneo GL-Manager monitor into the systray of the Windows taskbar. Click the button once to go back to the eneo GL-Manager software.

  • Page 63: Exit Setting

    5.2.4.7 Exit Setting Press the button to exit the eneo GL-Manager monitor which is minimized into the systray of the Windows taskbar. Click the button to select the functions on the list. You can also change the password by clicking the „Tools” and „Change password” items on the list. Enter the old password once and the new password twice, then press the „OK” button to save it.

  • Page 64: The Image Viewer

    5.2.5 The Image Viewer The network camera is equipped with a digital watermark. It’s a checking software which protects archived images and informs you whether the images have been modified or not. Follow the instructions below to open an archived image from an HDD. This is image integrity-protection software. It not only allows you to view an archived image from the HDD of a com- puter, but also protects an archived image from reproduction or interpolation. If an image isn’t in the original format made by a Network camera, the Image Viewer will not display the image and instead will send a warning message, „Not Correct Image”, right away. Close this message to enable you to see the image now. . Pop up the START menu in your computer, and point to Programs / eneo GL-Manager to open up the program selection page. Click the Image Viewer tag to start the Image Viewer program (see a sample screen below). . Click the RELOAD tag to load the images from a path. 3. Click the PRINT tag to get a displayed image printed out from a printer.

  • Page 65: Advanced Operation

    6. Advanced Operation Question 1: How to view the live images of the IP camera via the Microsoft Internet Explorer on the Desktop PCs or the laptop computers in a situation where there are no monitors or television ? • The way to get the IP address of the IP camera without a monitor: There are three way to get the IP address: Scan IP, Upnp and IP function.
  • Page 66 Question 3: How to add or modify the users and their authorities of using the IP camera ? • Entering the setting page . Click the System button in the home page. . Click the Users button on the left side of the page to enter the „SYSTEM - USERS” page. • Add a new user . Please enter the user name, the password, the confirmed password and choose the authority. There are three different levels of authorities, namely Admin, Operator and Viewer. Admin: The user who accesses with the admin name and password has the full power to even change the settings of the IP camera. Operator: The suggested choice for normal use.

  • Page 67: Specifications

    7. Specifications Type GLD-1401 Art. No. 9576 Series eneo GL System Colour Video standard Sensor size /3” Imager CCD, Sony Super HAD Interline Transfer CCD (with HQ DSP) Sensitivity (at 50% video signal) 0.4Lux, at F. (Videor measurement result) Horizontal resolution 480TVL Active picture elements Approx. 440,000, 75(H) x 58(V) Automatic gain control (AGC) Available Automatic shutter control (AES) /50 ~ /00,000sec.
  • Page 68 Web browser MS Internet Explorer Vers. 6.0 Network protocols TCP/IP, DHCP, HTTP, ICMP, FTP, ARP, SMTP, DDNS, DNS, UPnP, PPPoE Lens type Fixed focal length Lens mount Integrated lens Application range Industrial, security Nominal format size /3” Aspherical technology Mount Focal length 3,6mm Aperture range F.0 Horizontal angle of view 5° Iris control MOD (Minimum object distance) 0,5m Filter screw size Not available Password protection...

  • Page 69: Function Of Client Pc

    Accessories Art. No. Type Description 76011 ZELARIS_AC S Surveillance Software for Network Cameras from Eneo, Axis 76012 ZELARIS_AC C Client Software for Zelaris_AC S 76023 ZELARIS_AC SMO Site Map Option for Zelaris_AC S 76051 ZELARIS V04 Digital Video Network Crosslink, 4 Inputs, USB .0 Dongle 76053 ZELARIS S04 Server 4 Camera License, USB .0 Dongle 8. Function of Client PC System requirement Windows 000, XP or above Browser IE 6.x Live Monitor Max. 6 Split, Real Time REC / Capture / Live Event / Full Screen Playback Viewer...

  • Page 70: Dimensional Drawings

    9. Dimensional Drawings ∅ 141 ∅ 21 ∅ 100 49.2 Dimensions: mm...
  • Page 71 APPENDIX 1 SCAN IP Follow the instructions below to use the SCAN IP software to search the IP camera devices from a local location. button to discover the connection of the all-type device in the LAN. The Device List will display the . Click the connection of the all-type device. . Select the desired device from the Device List. 3. Click the desired device to show the window while the IP camera information acts to display the desired changes instantly. 4. Do you want to automatically search free IP? If and when you want to automatically search the free IP, select „Yes” or „No”. If clicked „Yes” the software will provide the „Free IP Address” boxes on the right side of the window. If you click „No”, these address boxes will not show.
  • Page 72 Manual insertion of „Free IP Address” If you have clicked „No”, please manually type in insertions as required in the „Free IP Address”, „Gateway Address”, and „NET Mask”. Follow each insertion you make by typing in the „Login Name” and „Password”, and click „UPDATE” to send your alterations to the IP Camera. Automatically search „Free IP Address” . If you clicked „Yes” the „Free IP Address” box will appear on the right.
  • Page 73 . Select and double click any of the addresses in the „Free IP Address” box on the right to enter it into an IP Address on the left. 3. To change any IP address, type in the new address in the „Free IP Address” box on the right as well as the device „Login Name” and „Password” in their respective blanks at bottom left, then click „UPDATE”, and the new address will automatically be sent to the device. 4. Click „Exit” at bottom right to shut the device.

  • Page 74: Appendix  - Ip Camera Upnp

    APPENDIX 2 IP Camera UPnP The most troublesome issue when you setup a IP camera is that you have no idea what the IP address of this device is. Now IP camera supports the UPnP (Universal Plug and Play) protocol which makes it easier for you to examine it; however, it is a pity that Microsoft Windows XP ® doesn’t start this service by default. Therefore, the following proce- dures will help you to turn it on and discover your IP camera step by step as shown below.
  • Page 75 1. Check the IP class of your PC In most case Microsoft Windows XP ® will assign an IP address, 69.54.*.*, automatically with a subnet mask, 55.55.0.0, if the DHCP server is absent, while the default IP address of a IP camera is 9.68..68 with a subnet mask of 55.55.55.0. There won’t be any communication due to different IP class domains, and you have to modify the relative settings or the UPnP protocol won’t work; however, checking your own IP address is necessary. Here are the procedures to check and modify them. Step 1: From the Start menu, point to Settings, and then click Control Panel. Step 2: When Control Panel appears, double-click the Network Connections icon. The Network Connections dialog box appears.
  • Page 76 Step 3: Click the Properties tab in the Network Connections dialog box. Step 4: When the Local Area Connection Properties dialog box shows up, choose Internet Protocol (TCP/IP) and click Properties.
  • Page 77 Step 5: In the Internet Protocol (TCP/IP) Properties dialog box, choose Use the following IP Address to indicate that you do not wish to use DHCP, and assign IP Address 9.68..00 with Subnet mask 55.55.55.0. Click OK when you finish it. Step 6: Choose Close to finish the modification.
  • Page 78 2. Install UPnP Packets As described before, Microsoft Windows XP ® doesn’t start the UPnP service by default; however, we have to install some packets before we initialize it. The following steps will help you to install them. Step1: From the Start menu, point to Set Program Access and Default, and then click it. Step 2: When the Add or Remove Programs dialog box appears, click the Add/Remove Windows Components button.
  • Page 79 Step 3: Check the Network Services in the Windows Component Wizard dialog box, and then click Details..Step 4: Check UPnP User Interface, and choose OK.
  • Page 80 Step 5: When the original Network Component Wizard dialog box returns, click Next. Step 6: After about one minute the UPnP installation will be done, and choose Finish to close it.
  • Page 81 3. Turn on Services After installation, we should turn on the relative services to start the UPnP protocol. The following procedures will teach you how to do it. Step 1: From the Start menu, point to Settings, and then click Control Panel. Step 2: When Control Panel appears, double-click the Administrative Tools icon. The Administrative Tools dialog box appears.
  • Page 82 Step 3: Click the Services icon in the Administrative Tools dialog box. Step 4: When the Services dialog box shows up, double click the SSDP Discovery Service icon.
  • Page 83 Step 5: Choose Automatic in the Startup type, and click OK to start it. Step 6: When the Services dialog box appears again, double click the Universal Plug and Play Device Host icon.
  • Page 84 Step 7: Choose Automatic in the Startup type, press the Start button, and click OK to start it. Step 8: Restart your system. 4. Scan LANCams ® through My Network Place After your installation and starting services, the UPnP protocol will take effect. You can scan all IP cameras in My Network Place like below. Just double click the UPnP MPEG4 IP camera icon, and the video live stream will pop up automatically without assigning any IP address in Microsoft Internet Explorer ®...

  • Page 85: Appendix 3 - The Arp Function

    APPENDIX 3 The ARP Function Setting the IP Address The Ethernet interface on the IP camera has a default IP address (9.68..68) that most likely needs to be chan- ged to make it work on your local network. You need to acquire a unique IP address (ask your network administrator). For the initial setting of the IP address the IP camera needs to be connected to the same network segment as your client, and the IP address can then be configured by using a combination of ARP and ping command. Use any of the following ways to set the IP address within thirty seconds after booting the IP camera (re-cycle the power). Setting IP using the method below can only be done on the Ethernet interface. ARP and ping from Windows or MS-DOS The user can open the PC’s MS-DOS windows from the WINDOWS 98 operation system, or open the PC’s Command Prompt windows from either the WINDOWS 000 or the WINDOWS XP operation system. • Start a DOS prompt window • Type the following in 30 seconds after the booting: arp -s <IP address> <Ethernet address> [or arp -s <IP address> < MAC address>] ping <IP address> Example: arp -s 9.68..00 00-0C-0C-00-00-0 ping 9.68..00 The IP address now is: 9.68..00. ARP and ping from UNIX or GNU/Linux • Start a shell • Type the following as superuser (root): arp -s <IP address> <Ethernet address>...

  • Page 86: Appendix 4 - Register As A Ddns Member

    APPENDIX 4 Register as a DDNS Member The DDNS (dynamic domain name system) is a function which is provided by an American company. Please refer to www.dyndns.com. This chapter provides the user with the basic instructions on how to register a free DDNS service. Registering for a DDNS Enter the URL www.dyndns.com. In the upper right-hand corner of the main page, where there is an item, „Create Account”, as shown below. Create an account After clicking „Create Account”, you will enter the Create Account page. Please complete the form at the bottom of the page to create your account. You will receive an e-mail containing instructions to activate your account. If you do not follow the directions within 48 hours, you will need to recreate your account.
  • Page 87 Set up the DDNS After creating the account successfully, please enter your user name and password in the upper right-hand corner of the main page to login, as shown below. After you login successfully, a text will appear saying „My Services”, as shown below.
  • Page 88 Click „My Services” to enter the service page. Please click the „Add Host Service” item which is below the „My Hosts” item, as shown below. Click „Add Host Service”, and its service items will appear. The Add Dynamic DNS Host item helps to add a new DDNS. Each member may have only one free account, and one free account can have only five DDNS. Click Add Dynamic DNS Host to enter the DDNS setting page as shown below.
  • Page 89 All we have to set in this page is the „Hostname” item. The user can choose a Sub Hostname as s/he likes from the right-hand side of the Hostname’s drop-down list. NOTE: You don’t have to set the „IP Address” in the same format as the camera’s IP Address. It will renew the IP Address automatically. After finishing the setting, please press the „Create Host” button as shown below.

  • Page 90: Appendix 5 - Mpeg4 Bit Rate Lookup Table Of Ip Camera

    APPENDIX 5 MPEG4 Bit Rate Lookup Table of IP Camera 1. When frame rate is higher than 15 frames/second (15 is not including): Highest High Medium Lowest FULL D1 .63 .5 .75 .3 0.88 Half D1 .5 .5 0.75 Half VGA .3 .3 0.88...

  • Page 91: Appendix 6 - Faq

    APPENDIX 6 1. How to disable the DHCP function and use a static IP instead ? A: Turn up the „DIP SWITCH” from „3” to „4” and change the relative network settings, the IP Address, NetMask and Gateway on the image web page. 2. I’ve set the function of „Motion Detection” but it doesn’t seem to work. A: Check if „Motion range” and „Sensitivity” have been set before activating the function. 3. My AVI files cannot be displayed. What can I do to display the files ? A: Please visit „http://www.morgan-multimedia.com/” to download „Morgan M-JPEG codec” and install it, and then check the selection of the „IJP Core”.
