- Page 1 1000Base-X to 10/100/1000Base-T 802.3at PoE Media Converter GTP-802 / GTP-802S / GTP-805A User’s Manual...
- Page 2 Copyright © PLANET Technology Corp. 2011. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. The information in this manual is subject to change without notice. All other trademarks belong to their respective owners.
-
Page 3: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 1000Base-X to 10/100/1000Base-T 802.3at PoE+ Media Converter User’s Manual For Models: GTP-802 / GTP-802S / GTP-805A Rev 1.0 (May 2011) Part No. EM-GTP80X_V1.0 (2350-AA4480-000)
-
Page 5: Table Of Contents
Table of Contents 1. Overview ................. 6 About the Power over Ethernet Injector ......6 2. Model List ................ 7 3. Checklist ................8 4. Product Outlook ..............9 5. Link Fault Pass Through (LFP) .......... 11 Link Loss Carry Forward (LLCF) ........11 Link Loss Return (LLR) ............ -
Page 6: Overview
1. Overview Thank you for purchasing PLANET GTP-80X family 1000Base-X Fiber-optic to 10/100/1000Mbps Ethernet Twisted pair 802.3at PoE Bridge Converter. This converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively. The converter provides Power over Ethernet power injector function which is able to drive one IEEE 802.3at / 802.3af compliant powered devices. -
Page 7: Model List
2. Model List Your 802.3at PoE Media Converter comes with three of the following models. GTP-802: Multi-Mode SC interface fiber connector, up to 550m GTP-802S: Single Mode SC interface fiber connector, up to 10km GTP-805A: Multi / Single Mode LC interface connector, distance is vary on SFP module In the following sections, the term “GTP-80X”... -
Page 8: Checklist
3. Checklist Your GTP-80X box should contain the following items: 1000Base-X 10/100/1000Base-T 802.3at Media Converter x 1 User’s Manual x 1 AC-DC Adapter (Input: 52V~56V DC, 0.58A max.) x 1 Power Cord x 1 If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair. -
Page 9: Product Outlook

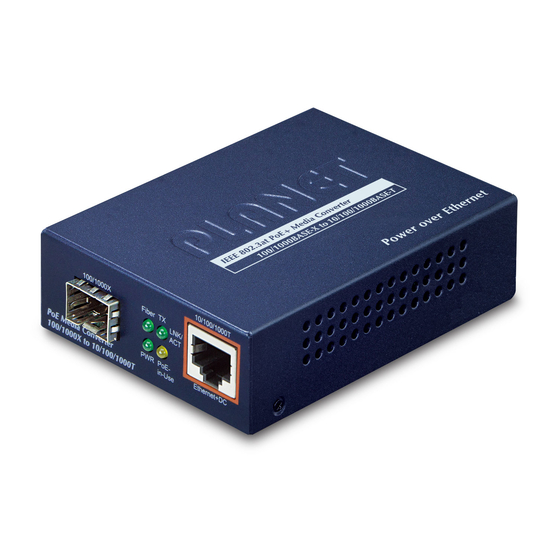

4. Product Outlook Overview The layout of GTP-802 is the same as for GTP-802S Figure 4-1: Product Outlook of GTP-802/GTP-802S The layout of GTP-805A IEEE 802.3at PoE Media Converter 1000Base-X to 10/100/1000Base-T Power over Ethernet 10/100/1000Base-T 52V~56V DC Mini-GBIC Fiber TX... - Page 10 Left View There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one fiber-optic connector (vary by model) and four LED indicators. Figure 4-3: Left View of GTP-802 / GTP-802S 10/100/1000Base-T Mini-GBIC Fiber TX PoE Media Converter Ethernet+DC In Use 1000X to 10/100/1000T...
-
Page 11: Link Fault Pass Through (Lfp)
5. Link Fault Pass Through (LFP) function includes Link Fault Pass Through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function. -
Page 12: Link Loss Return (Llr)
If the connection breaks, GTP-80X that link loss forward to the Switch / Hub that generates a trap to the management station. The administrator can then determine the source of the problem. Management Switch/Hub Media Media Switch/Hub Management Station w/SNMP Converter Converter w/SNMP... - Page 13 If one of the optical conductors is down (as shown in the diagram box below), the converter with LLR function will return a no-link condition to its link partner. With LLCF function also enabled, the no-link condition is carried forward to the switch/ hub where a trap is generated to the management station, and the administrator can then determine the source of the loss.
-
Page 14: Installing The Converter
Power LED lights up. Turn on the power of the device / station, the TX Link and FX Link LEDs should light when all cables are attached. 10/100/1000Base-T UTP 1000Base-SX/LX SC Fiber Figure 6-1: GTP-802 / GTP-802S Installation... - Page 15 1000Base-SX/LX SFP transceiver 10/100/1000Base-T UTP 1000Base-SX/LX LC Fiber Figure 6-2: GTP-805A Installation RJ-45 / STP, UTP Cat5 / 5e / 6, straight / cross- over cable is accepted. Please refer to section 9 for more about the wiring Note distance of your TP, Optic-fiber networks.
-
Page 16: Poe Function
The GTP-80X equips an AC-DC adapter with DC 52V~56V input and it injects the DC power into the pin of the twisted pair cable (Pin 4, 5, 7 and 8). 550m / 10km 100 meters GTP-802 / GTP-802S Data Data Power 1000... - Page 17 PLANET IEEE 802.3at / 802.3af Power over Ethernet Splitter (POE-151S / 152S / 161S) with Internet Camera or PoE Wireless Access Point installed in the wild rang place. 550m / 10km 100 meters GTP-802 / GTP-802S Data Data Power 1000...
-
Page 18: Led Indication
8. LED Indication System Color Function Green Light Indicate the device is powered. 10/100/1000Base-T Port Color Function Indicate that the PoE+ Media Blink Converter is actively sending or receiving data over that port. LNK/ACT Green Indicate that the port is link up Light at 10/100/1000Mbps. -
Page 19: Cable Connection Parameter
Multi-Mode Converters Node to Node MM Half 412 meters Node to Switch Node to Node MM Full GTP-802: 220 / 550 meters Node to Switch Single-Mode Converters Node to Node SM Full GTP-802S: 10 kilometers Node to Switch Multi / Single Mode Converters... -
Page 20: Gtp-80X Technical Specifications
10. GTP-80X Technical Specifications The GTP-80X comes with the following standard features: l Standard: IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T IEEE 802.3at pre-standard / 802.3af Power over Ethernet standard l Connectors: One RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568 with PoE ... -
Page 21: Appendix A
APPENDIX A A.1 Device's RJ-45 Pin Assignments 1000Mbps, 1000Base-T RJ-45 Connector pin assignment Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment MDI Media Dependant MDI-X Media Dependant Contact Interface... -
Page 22: Cable Pin Assignment
A.2 RJ-45 Cable Pin Assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 SIDE 1 1 2 3 4 5 6 7 8 1 = White/Orange... -
Page 23: Fiber Optical Cable Connection Parameter
A.3 Fiber Optical Cable Connection Parameter The wiring details are as below: Fiber Optical Patch Cables: Standard Fiber Type Cable Specification 1000Base-SX (850nm) Multi-mode 50/125μm or 62.5/125μm Multi-mode 50/125μm or 62.5/125μm 1000Base-LX (1300nm) Single-mode 9/125μm... -
Page 24: Ec Declaration Of Conformity
1000Base-SX/LX/X to 10/100/1000Base-T PoE Media Converter *Model Number: GTP-802、GTP-802S、GTP -805A * Produced by: Planet Technology Corp. Manufacturer‘s Name : Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).
