Planet GT-702 User Manual
Hide thumbs Also See for GT-702:

Advertisement

Trademarks
©
Copyright
PLANET Technology Corp. 2007
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. The
information in this manual is subject to change without notice. All other
trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty and
representation, either implied or expressed, with respect to the quality,
performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User's Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions that
may have occurred.
Information in this User's Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be contained in
this User's Manual. PLANET makes no commitment to update or keep
current the information in this User's Manual, and reserves the right to
make improvements to this User's Manual and/or to the products described
in this User's Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or
incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the regulations
for a Class A digital device, pursuant to Part 15 of the FCC Rules.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-702 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet GT-702

  • Page 1: Fcc Warning

    PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
  • Page 2 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s manual for PLANET Gigabit Ethernet Converter For Models: GT-702, GT-702S, GT-705A, GT-706A15, GT-706B15, GT-706A60, GT-706B60 Rev 5.0 (July. 2007) Part No: 2010-000006-005...
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 OVERVIEW ..........About the Gigabit Ethernet Media Converter....Chapter 2 PRODUCT FEATURES ....... Chapter 3 MODEL LIST..........Chapter 4 CHECKLIST ..........Chapter 5 PRODUCT OUTLOOK ........ Chapter 6 INSTALLING THE CONVERTER ....Chapter 7 DUPLEX MODE SUPPORT ......Chapter 8 LED INDICATION ........
  • Page 4: Chapter 1 Overview

    Chapter 1 OVERVIEW Thank you for purchasing PLANET GT-70X family Gigabit Ethernet Media Converter products. This Gigabit Ethernet Media Converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively.
  • Page 5: Chapter 2 Product Features

    ● One SFP (Mini-GBIC) slot supporting either multi-mode or single mode fiber, flexibility in Gigabit Ethernet fiber-optic wiring with different Mini-GBIC module installed (GT-705A only) ● Compact in size, easy installation ● Can be installed on PLANET’s 10”/19” Media Converter Chassis...
  • Page 6: Chapter 3 Model List

    Chapter 3 MODEL LIST Your Gigabit Ethernet Converter comes with one of the following models.  GT-702: 1000Base-T to 1000Base-SX (SC)  GT-702S: 1000Base-T to 1000Base-LX (SC)  GT-705A: 1000Base-T to 1000Base-SX/LX (LC)  GT-706A15: 1000Base-T to 1000Base-LX(WDM)  GT-706B15: 1000Base-T to 1000Base-LX(WDM) ...
  • Page 7: Chapter 4 Checklist

    Chapter 4 CHECKLIST Your GT-70X carton should contain the following items:  The Gigabit Ethernet Converter.  AC-DC Power Adapter (Output: 5VDC, 2A max.).  This user’s manual. If any item is missing or damaged, please consult the dealer from whom you purchased your Gigabit Ethernet Converter.
  • Page 8: Chapter 5 Product Outlook

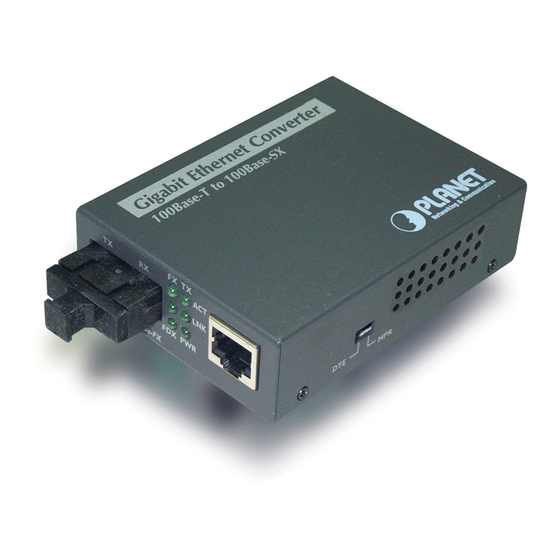

    Chapter 5 PRODUCT OUTLOOK Right View (GT-70X) Left: Fiber-optic connector, Right: TP connector. Three LED indicators per TP, fiber port. Rear View (GT-70X) 5V DC A-N bypass One DC jack for DC power input and DIP switch to disable/enable Auto by pass function.
  • Page 9  Notice: Please to note that if converter is connect with switch which is Auto negotiation, must enable the Auto by pass function. If both devices are conveters must disable the auto by pass function.
  • Page 10: Chapter 6 Installing The Converter

    VERTER Chapter 6 INSTALLING THE CON Please follow these steps to install the converter: • Turn off the power of the device/station in a network to which the GT-70X will be attached. • Ensure that there is no activity in the network. •...
  • Page 11: Chapter 7 Duplex Mode Support

    Chapter 7 DUPLEX MODE SUPPORT The GT-70X is one-channel media conversion between 1000Base-T and 1000Base-SX/LX/LX WDM. 1000Base-T port can work under Auto-negotiation and fixed 1000Mbps full duplex mode. 1000Base-SX/LX/LX WDM fiber port only allow to work under fixed 1000Mbps full duplex mode. Notice: It doesn’t support Auto-negotiation and can not work with 1000Base- SX/LX interface that can not configure to fixed 1000Mbps full duplex.
  • Page 12: Chapter 8 Led Indication

    Chapter 8 LED INDICATION Color DESCRIPTION Lit: when the fiber port run in fix Fiber / ACT Green 1000Mbps and packet is traveling. TP / ACT Green Lit: when the packet is traveling. Fiber / LNK Green Lit: when fiber connection is good. TP / LNK Green Lit: when TP connection is good.
  • Page 13: Chapter 9 Cable Connection Parameter

    Chapter 9 CABLE CONNECTION PARAMETER The wiring details are as below: Cables: Standard Fiber Type Cable Specification 1000Base-SX Multi-mode 50/125μm or 62.5/125μm (850nm) Multi-mode 50/125μm or 62.5/125μm 1000Base-LX (1300nm) Single-mode 9/125μm Wiring Distances: Max. Dis- Diameter Modal Bandwidth tance Standard Fiber (micron) (MHz * km)
  • Page 14: Chapter 10 Product Specification

    Chapter 10 PRODUCT SPECIFICATION The GT-70X comes with the following standard features: IEEE 802.3ab 1000Base-T Standards: IEEE 802.3z 1000Base-SX/LX Duplex Mode: Full Duplex Mode Transfer rate 1000Mbps Media RJ-45, SC, single SC(WDM) Interface: PWR, FDX, Fiber/LNK/ACT, TP/LNK/ACT indicators: 1000Base-T: 4 pair Cat. 5, EIA/TIA-568 100-ohm screened twisted-pair (STP), up to 100m 1000Base-SX : 62.5/125μm multi-mode fiber optic cable,...
  • Page 15: Chapter 11 Power Information

    The power jack of GT-70X is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representative.
