- Page 1 10/100/1000BASE-T to 100/1000BASE-X Media Converter GT-805A User’s Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Product Features............... 3 2. Checklist ................4 3. Product Outlook ..............5 4. Link Fault Pass-Through (LFP) ..........7 5. Installing The Converter ............ 8 6 Duplex Mode Support ............10 7. LED indication ..............11 8 Cable Connection Parameter .......... -
Page 3: Product Features
1000BASE-SX/LX standard ‹ Data transfer rate: TP – 10/100/1000Mbps; SFP – 100/1000Mbps ‹ DIP switch for LFP function (Disable/Enable) setting ‹ OAM (TS-1000 and IEEE 802.3ah) supported ‹ 9K jumbo frame supported ‹ Compliant with PLANET’s 10”/19” media converter chassis... -
Page 4: Checklist
2. Checklist Your GT-805A carton should contain the following items: ‹ The Gigabit Ethernet Media Converter ‹ AC-DC Power Adapter (Output: 5V DC, 2A max.) ‹ This User’s Manual If any item is missing or damaged, please consult the dealer... -
Page 5: Product Outlook

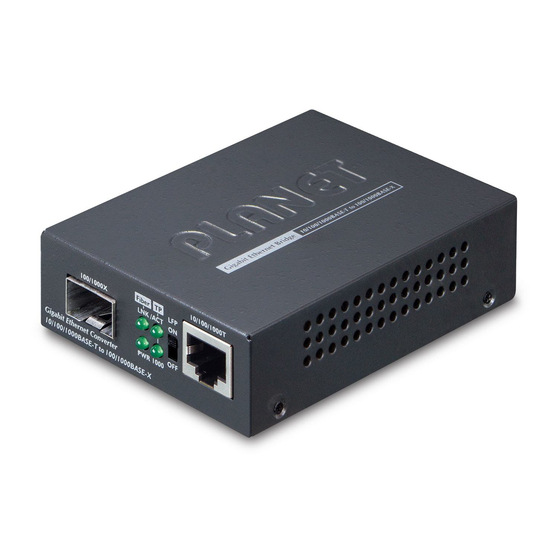

LNK /ACT PWR 1000 Gigabit Ethernet Converter 10/100/1000BASE-T to 100/1000BASE-X Figure 1: GT-805A Right View Left View (GT-805A) The rear panel of the Gigabit Ethernet Media Converter indicates one DC jack, which accepts input power with 5V DC 2A. 5V DC... - Page 6 The power jack of Gigabit Ethernet Media Converter is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the issue to make the power connection, please contact your local sales representative.
-
Page 7: Link Fault Pass-Through (Lfp)
4. Link Fault Pass-Through (LFP) The LFP function includes the Link-Fault-Passthrough function (LLCF/LLR) Switch design. LLCF/LLR immediately alarm administrators the issue of the link media and provide efficient solution to monitor the network. The DIP Switch will disable or enable the LFP function. LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmit. LLR... -
Page 8: Installing The Converter
Turn off the power of the device/station in a network to which the GT-805A will be attached. Step 2: Attach fiber cable from the GT-805A to the fiber network. TX and RX must be paired at both ends. Step 3: Attach Cat. - Page 9 1. It is recommended to use PLANET MFB/MGB series 100/1000BASE-FX/SX/LX SFP on the GT-805A. If you insert an SFP transceiver that is not supported, the GT-805A will not recog- nize it. Note 2. Please check the link-budget of your SFP trans- ceivers and its physical wiring distance.
-
Page 10: Duplex Mode Support
6 Duplex Mode Support GT-805A port supports triple speed -- 10/100/1000BASE-T, auto-negotiation. It will auto detect the link speed and the duplex mode by default with its link partner. The fiber port (100/1000BASE-FX/SX/LX) allows 100/1000Mbps full duplex by auto-negotiation. Please also check the setting... -
Page 11: Led Indication
7. LED indication GT-805A: Color Description Green Lit when +5V DC power is detected. Lit: To indicate the link through fiber port is successfully established. Fiber Green LNK/ACT Blinks: To indicate the fiber port is actively sending or receiving data. Lit: To indicate the link through TP port is successfully established. Green LNK/ACT Blinks: To indicate the port is actively sending or receiving data. -
Page 12: Cable Connection Parameter
8 Cable Connection Parameter The wiring details are shown below: Duplex Connection Limitation (max.) Twisted Pair Node to Node Half/Full 100 meters Node to Switch/Hub Fiber Optic Cables: Standard 100BASE-FX 1000BASE-SX 1000BASE-LX (Wavelength) (1310nm) (850nm) (1310nm) 50/125μm or Multi-mode Fiber Type & Cable 62.5/125μm Specifications Single-mode... -
Page 13: Product Specifications
9. P roduct Specifications Model GT-805A Fiber Connector SFP, LC type Fiber Mode May vary on module Fiber Maximum May vary on module Distance Copper Connector 10/100/1000Mbps RJ45 Copper Modes Full duplex, auto-negotiation Packet Forwarding 14880pps @10Mbps/148810pps Rate (64bytes) @100Mbps/1488000pps @1000Mbps... - Page 14 : GT-80xynn; GT- 90xynn (xy= 2, 2S, 5A or 6A, 6B, nn= 15, 60 or blank) * Produced by: : Planet Technology Corp. Manufacturer‘s Name Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
