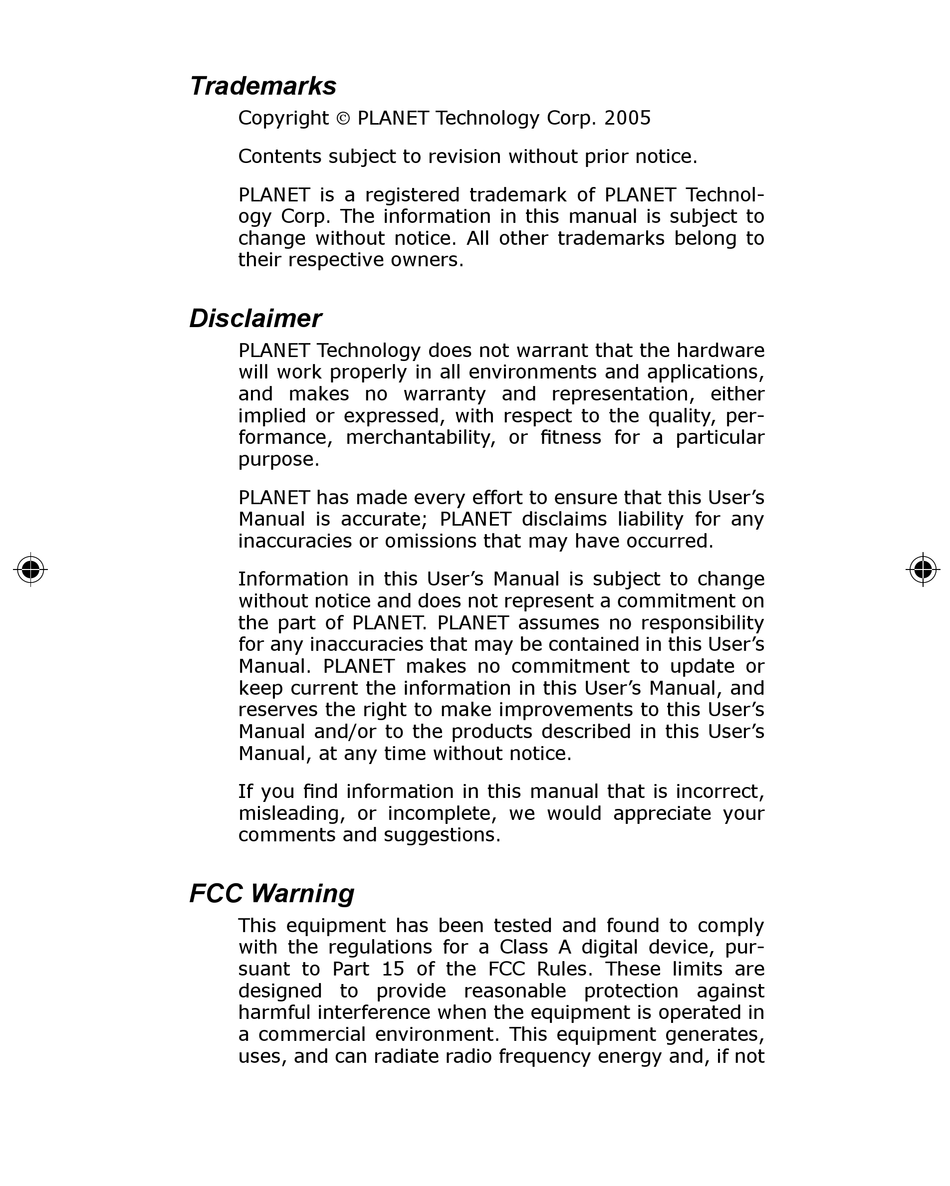

Trademarks
Copyright  PLANET Technology Corp. 2005
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technol-
ogy Corp. The information in this manual is subject to
change without notice. All other trademarks belong to
their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware
will work properly in all environments and applications,
and makes no warranty and representation, either
implied or expressed, with respect to the quality, per-
formance, merchantability, or fitness for a particular
purpose.
PLANET has made every effort to ensure that this User's
Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change
without notice and does not represent a commitment on
the part of PLANET. PLANET assumes no responsibility
for any inaccuracies that may be contained in this User's
Manual. PLANET makes no commitment to update or
keep current the information in this User's Manual, and
reserves the right to make improvements to this User's
Manual and/or to the products described in this User's
Manual, at any time without notice.
If you find information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your
comments and suggestions.

FCC Warning

This equipment has been tested and found to comply
with the regulations for a Class A digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-702 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet GT-702

  • Page 1: Fcc Warning

    PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
  • Page 2 This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Revision User's manual for PLANET Gigabit Ethernet Converter For Models: GT-702, GT-702S, GT-705A, GT-706A15, GT-706B15 Rev 4.0 (January. 2005)
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Overview Chapter 2 Product Features Chapter 3 Model List Chapter 4 Checklist Chapter 5 Product Outlook Chapter 6 Installing The Converter Chapter 7 Duplex Mode Support Chapter 8 Led Indication Chapter 9 Cable Connection Parameter Chapter 10 Product Specification Chapter 11 Power Information...
  • Page 4 This page is intentionally left blank...
  • Page 5: Chapter 1 Overview

    Chapter 1 OVERVIEW Thank you for purchasing PLANET GT-70X family Gigabit Ethernet Media Converter products. This Gigabit Ethernet Media Converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively.
  • Page 6: Chapter 2 Product Features

    • One SFP (Mini-GBIC) slot supporting either multi-mode or single mode fiber, flexibility in Gigabit Ethernet fiber- optic wiring with different Mini-GBIC module installed (GT-705A only) • Compact in size, easy installation • Can be installed on PLANET’s 10 /19 Media Converter Chassis...
  • Page 7: Chapter 3 Model List

    Chapter 3 MODEL LIST Your Gigabit Ethernet Converter comes with one of the following models. ð GT-702: 1000Base-T to 1000Base-SX (SC) ð GT-702S:1000Base-T to 1000Base-LX (SC) ð GT-705A: 1000Base-T to 1000BaseSX/LX (LC) ð GT-706A15: 1000Base-T to 1000Base-LX(WDM) ð GT-706B15: 1000Base-T to 1000Base-LX(WDM) In the following sections, the term “GT-70X”...
  • Page 8: Chapter 4 Checklist

    Chapter 4 CHECKLIST Your GT-70X carton should contain the following items: ð The Gigabit Ethernet Converter. ð AC-DC Power Adapter (Output: 5VDC, 2A max.). ð This user’s manual. If any item is missing or damaged, please consult the dealer from whom you purchased your Gigabit Ethernet Converter.
  • Page 9: Chapter 5 Product Outlook

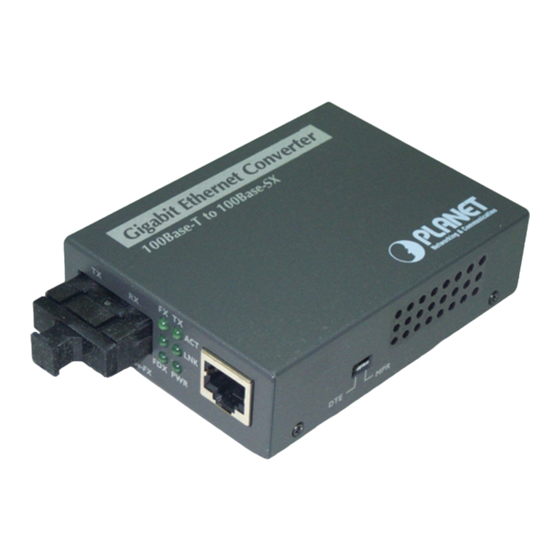

    Chapter 5 PRODUCT OUTLOOK Right View (GT-70X) Left: Fiber-optic connector, Right: TP connector. Three LED indicators per TP, fiber port. Rear View (GT-70X) One DC jack for DC power input and DIP switch to disable/enable Auto by pass function. Please to note that if converter is connect with switch which is Auto negotiation, must ...
  • Page 10: Chapter 6 Installing The Converter

    Chapter 6 INSTALLING THE CONVERTER Please follow these steps to install the converter: • Turn off the power of the device/station in a network to which the GT-70X will be attached. • Ensure that there is no activity in the network. •...
  • Page 11: Chapter 7 Duplex Mode Support

    Chapter 7 DUPLEX MODE SUPPORT The GT-70X is one-channel media conversion between 1000Base- T and 1000Base-SX/LX/LX WDM. 1000Base-T port can work under Auto-negotiation and fixed 1000Mbps full duplex mode. 1000Base-SX/LX/LX WDM fiber port only allow to work under fixed 1000Mbps full duplex mode. It doesn’t support Auto-negotiation and can not work with 1000Base-SX/LX interface ...
  • Page 12: Chapter 8 Led Indication

    Chapter 8 LED INDICATION Color Description Fiber / Green Lit: when the fiber port run in fix 1000Mbps and packet is travel- ing. TP/ ACT Green Lit: when the packet is traveling. Fiber/ Green Lit: when fiber connection is good. TP/LNK Green Lit: when TP connection is good.
  • Page 13: Chapter 9 Cable Connection Parameter

    Chapter 9 CABLE CONNECTION PARAMETER The wiring details are as below: Cables: Standard Fiber Type Cable Specification 1000Base-SX Multi-mode 50/125μm or 62.5/125μm (850nm) 1000Base-LX Multi-mode 50/125μm or 62.5/125μm (1300nm) Single-mode 9/125μm Wiring Distances: Standard Fiber Diameter Modal Max. (micron) Bandwidth Distance (MHz * km) (meters)
  • Page 14: Chapter 10 Product Specification

    Chapter 10 PRODUCT SPECIFICATION The GT-70X comes with the following standard features: Standards IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Duplex Mode Full Duplex Mode Transfer rate 1000Mbps Media Interface RJ-45, SC, single SC(WDM) LED indicators PWR, FDX, Fiber/LNK/ACT, TP/LNK/ACT Cable 1000Base-T: 4 pair Cat. 5, EIA/TIA-568 100-ohm screened twisted-pair (STP), up to 100m 1000Base-SX :...
  • Page 15 Connecting to the Gigabit Ethernet prod-  ucts, please refer to the device s Technical Notice: Manual.
  • Page 16: Chapter 11 Power Information

    The power jack of GT-70X is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC- DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representative.
  • Page 18 Part No.:2010-000006-004...
