Summary of Contents for Planet WGS-E304PT

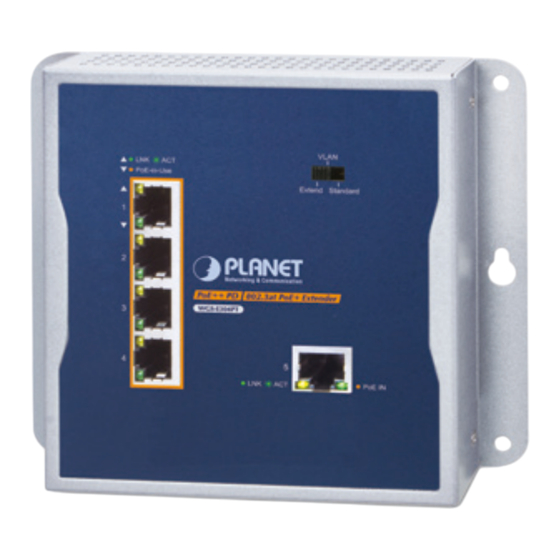

- Page 1 Industrial 1-Port 10/100/1000T 802.3bt PoE++ to 4-Port 802.3at PoE+ Wall-mounted Extender WGS-E304PT User's Manual...
-
Page 2: Table Of Contents
3.1 Wall-Mount Installation ..............7 3.2 DIN-rail Mounting Installation ............9 3.3 Magnet Installation ..............10 3.4 Connecting WGS-E304PT to PSE ........... 10 3.5 Connecting WGS-E304PT to PD ............. 11 4. Power over Ethernet Budget ..............13 5. Technical Specifications ............... 14... -
Page 3: Package Contents
PoE++ to 4-Port 802.3at PoE+ Wall-mounted Extender, WGS-E304PT. In the following sections, the term “Industrial PoE Extender” means the WGS-E304PT. Open the box of the WGS-E304PT and carefully unpack it. The box should contain the following items: Industrial PoE Extender x 1... -
Page 4: Hardware Introduction
Color Function Lights to indicate the port is linked up. LNK/ACT Green Blinks to indicate that the WGS-E304PT is actively sending or receiving data over that port. Lights to indicate the port is obtaining PoE power from PSE devices. PoE-in-Use... -
Page 5: Dip Switch
The front panel of Industrial PoE Extender provides one DIP switch for Standard, VLAN and Extend mode selections. The detailed descriptions are shown in the following table. DIP Switch Mode Function This mode makes the WGS-E304PT operate as a general Standard switch and all ports operate at 10/100/1000Mbps auto- (default) negotiation. -
Page 6: Physical Dimensions
2.4 Physical Dimensions W x D x H: 148 x 24.2 x 134 mm... -
Page 7: Installation
Installation. Please read this chapter completely before continuing. This following pictures show how to install the device. However, the device in the picture is not the WGS-E304PT. 3.1 Wall-Mount Installation To install the Industrial PoE Extender on the wall, simply follow the following... - Page 8 Step 2: Hammer the anchors provided into the four holes and use the four screws to tightly fix the Industrial PoE Extender onto the wall by screwing them. Step 3: Or the Industrial PoE Extender, shown in the picture below, can be hung on the wall by screwing the two screws leaving a space of 2mm apart after the anchors are hammered in.
-
Page 9: Din-Rail Mounting Installation
3.2 DIN-rail Mounting Installation The DIN-rail kit is included in the Industrial PoE Extender package. To hang up the Industrial PoE Extender, follow the steps below: Step 1: Screw the DIN-rail bracket on the Industrial PoE Extender. Step 2: Lightly press the bottom of DIN-rail bracket into the track. Step 3: Check whether the DIN-rail bracket is tightly on the track. -
Page 10: Magnet Installation
To install the Industrial PoE Extender on a magnetic surface, simply follow the following diagram: 3.4 Connecting WGS-E304PT to PSE The Industrial PoE Extender has five RJ45 ports of which one is the PoE++ In port (Port 5) connected to the PSE and the other four are PoE+ Out ports connected to the PDs. -
Page 11: Connecting Wgs-E304Pt To Pd
PoE Extender; it will damage the device permanently. 4. Refer to Chapter 2.2 for more information about LED function. 3.5 Connecting WGS-E304PT to PD Step 1: Connect the additional Cat5e/6 cable from the PoE+ Out of the Industrial PoE Extender to a remote PD. - Page 12 DC Input Power Power Supply IEEE 802.3at PoE+ 802.3bt PoE++ Data Industrial PoE PTZ Switch IP Camera WGS-E304PT DC Input Power Power Supply Data 802.3bt PoE++ Industrial Switch WGS-E304PT IEEE 802.3at PoE+ PoE Dome IP Camera 1.
-
Page 13: Power Over Ethernet Budget
4. Power over Ethernet Budget The following table lists how many PoE devices can be powered by the Industrial PoE Extender under 1m in distance: Power Source PoE Output Budget Max. Number of PDs supported Class 4 PD@25 watts 2 units 95W 802.3bt PoE++ 65 watts max. -
Page 14: Technical Specifications
5. Technical Specifications Model WGS-E304PT Hardware Specifications PoE In Port - 1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in - Auto MDI/MDI-X, auto-negotiation RJ45 connector Network Connector PoE Out Port - 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out... - Page 15 Multi-operation mode options DIP Switch (Standard/VLAN/Extend) selection 8.6 watts/29 BTU (Power On) Power Consumption 82 watts/279 BTU (Full loading with PoE function) Power over Ethernet PoE in Port - IEEE 802.3bt PoE++ Type 4 standard PD - IEEE 802.3at PoE+ end-span/mid-span PD PoE Standard Per PoE out Port - IEEE 802.3at Power over Ethernet Plus end-span...
- Page 16 Environment Temperature: -40 ~ 75 degrees C Operating Relative Humidity: 5 ~ 95% (non-condensing) Temperature: -40 ~ 85 degrees C Storage Relative Humidity: 5 ~ 95% (non-condensing)
-
Page 17: Customer Support
Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and user’s manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. - Page 18 Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual.
- Page 19 CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. WEEE Warning To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment,...
