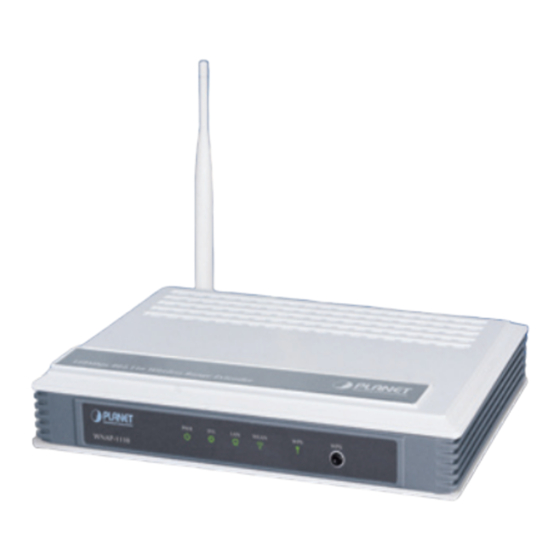

Planet Wnap-1110 Quick Installation Quide

Quick Installation Guide
WNAP-1110
150Mbps 802.11n Wireless
Range Extender

1. Package Contents

Thank you for choosing PLANET WNAP-1110. Before installing, please
verify the contents inside the package box.
The WNAP-1110 should contain the following items in the package:
WNAP-1110
9V Power Adapter
If there is any item missing or damaged, please contact the
seller immediately.
Note

3. Hardware Installation

Step 1: Locate the WNAP-1110 in an optimum place, and adjust the
antenna for the best coverage.
POWER ON/OFF LAN
Step 2: Connect the Power Source to the WNAP-1110. Only choose
one of the following methods for the suitability of AP's
location; otherwise, it will cause damage to the WNAP-1110.
Method A: Hard to find the power socket
(1) Connect the Ethernet cable into the LAN port of the PC, and plug
the other end of the Ethernet cable into the LAN port of the PoE
Injector.
(2) Use another Ethernet cable (8-wire patch cable) to connect the
LAN port of the WNAP-1110 and the PoE port of the PoE Injector.
The 8-wire patch cable should not exceed 30 meters in length.

(3) Connect the power adapter into the DC port of the PoE Injector,
and plug the other end of the power adapter into an electrical
outlet.
Method B: Power Socket nearby
(1) Connect the Ethernet cable into the LAN port of the PC, and plug
the other end of the Ethernet cable into the LAN port of the
WNAP-1110.
(2) Connect the power adapter into the POWER port of the
WNAP-1110 in the rear panel, and plug the other end of the
power adapter into an electrical outlet.
Quick Guide CD-ROM
PoE Injector 1 x 4dBi Antenna
– 1 –
Reset
– 3 –

2. Physical Installation

Front Panel Description
PWR
WNAP-1110
Power LED
System LED
LAN LED
Rear Panel Description
10/100Mbps LAN Port
Power ON/OFF Button
Power Connector
9V DC Input
POWER ON/OFF
Reset Button
(Press and hold the Reset button for
about 5 seconds for factory default)
Method A: Hard to find the power socket
Power
PoE LAN
POWER
1
3
POWER PoE LAN
PoE Injector
Check connection before powering on. Wrong connection
may cause device malfunction, say, your PC or other
Ethernet device.
Caution
Method B: Power Socket nearby
1
POWER ON/OFF
PC
SYS LAN WLAN WPS WPS WPS
WPS Button
WPS LED
Wireless LED
4dBi Antenna
Reset
LAN
– 2 –
PC
Reset
POWER ON/OFF LAN
2
Power
Reset
LAN
2
– 4 –
