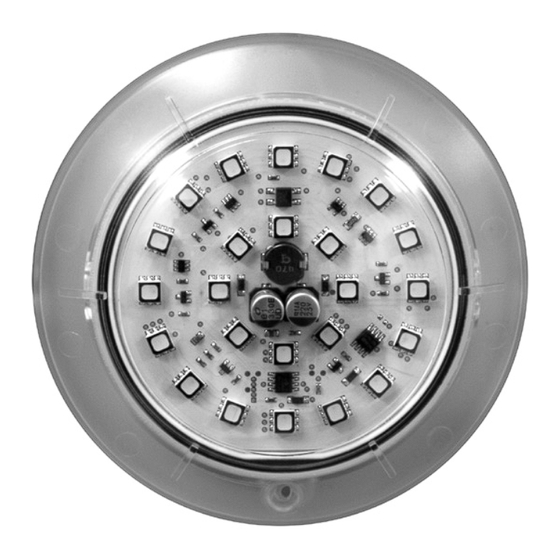

Nicheless LED Underwater Light
FOR YOUR SAFETY - This product must be installed and serviced by a contractor
who is licensed and qualified in pool equipment by the jurisdiction in which the
product will be installed where such state or local requirements exist. The maintainer
must be a professional with sufficient experience in pool equipment installation and
maintenance so that all of the instructions in this manual can be followed exactly.
Before installing this product, read and follow all warning notices and instructions
that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or
operation will void the warranty.
Improper installation and/or operation can create unwanted electrical
hazard which can cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important
information about the installation, operation and safe use of this
product. This information should be given to the owner/operator
of this equipment.
Jandy Pro Series
WARNING
OWNER'S MANUAL
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jandy Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jandy Jandy Pro Series

  • Page 1 OWNER’S MANUAL ENGLISH Jandy Pro Series Nicheless LED Underwater Light WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.
  • Page 2: Table Of Contents

    Nicheless Underwater LED Lights | Owner’s Manual Table of Contents Contents Section 1. Important Safety Instructions ..3 Section 2. Installing the Jandy Pro Series Nicheless LED Light ...... 4 2.1 Preparing the Light Fixture for Installation..... 4 2.2 Installing the Light Fixture ..........6 Section 3. Wiring Options for Controlling Jandy Pro Series Nicheless LED Lights ........
  • Page 3: Section 1. Important Safety Instructions

    RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. This underwater light must be installed by a licensed or certified electrician in accordance with the National Electrical Code and applicable local ® codes and ordinances. In Canada, the Canadian Electrical Code and all applicable local codes and ordinances must be adhered to. Improper installation will create an electrical hazard, which could result in death or serious injury to pool or spa users, installers, or others due to electrical shock, and may also cause damage to property. Read and follow the specific instructions below. WARNING Before installing this underwater light, read and follow all warning notices and instructions accompanying this light. Failure to follow safety warnings and instructions can result in severe injury, death, or property damage. Visit www.zodiacpoolsystems.com for additional free copies of these instructions or call Zodiac Technical Support at 800.822.7933 (U.S.) or 888.647.4004 (Canada) CAUTION Except when the Jandy Pro Series Nicheless Underwater LED Lights are installed in an area of the swimming pool that is not used for swimming and the lens is adequately guarded to keep any person from contacting it, the light shall be installed in or on a wall of the pool, with the top of the lens opening not less than 4 inches (102 mm) below the normal water level of the pool ATTENTION INSTALLER This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner/operator of this equipment. SAVE THESE INSTRUCTIONS...
  • Page 4: Section 2. Installing The Jandy Pro Series Nicheless Led Light

    Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual NOTICE The Jandy Pro Series Nicheless Underwater LED Lights are intended for installation in fresh water and salt water swimming pools. It is important to ensure that the wet niches in which the lights are installed are intended for their appropriate application, either fresh water or salt water pools. Section 2. Installing the Jandy Pro Series Nicheless LED Light WARNING Risk of Electrical Shock or Electrocution. This underwater light must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code (Canadian ®...
  • Page 5 48" min. 8" min. Junction Box or Low Voltage Transformer, to the max water level of the pool. 4" min. to top of Lens. Rigid Conduit 5" Figure 1. Jandy Pro Series LED Light Installation with standard 1.5” plastic fitting...
  • Page 6: Installing The Light Fixture

    Page 6 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual Installing the Light Fixture NOTE Perform these steps only after the electrical system requirements are met. Feed cord through electrical conduit to junction box, leaving at least fourteen (14) inches of slack cord in the conduit near the pool wall to allow for winterization.
  • Page 7: Section 3. Wiring Options For Controlling

    Separate switches may be used to control the on/off and color functions of each set of Jandy Pro Series Nicheless Lights (a ‘set’ being all the lights wired to a common 12 VAC transformer). It is recommended that these switches be located next to each other to facilitate simple color synchronization when desired.
  • Page 8: Wiring To A Time Clock

    5 of this manual. Wiring to a Time Clock The Jandy Pro Series Nicheless LED Lights can be wired to a time clock to operate the lights automatically. Wiring to a Switch The Jandy Pro Series Nicheless LED Lights can be wired into a switch to manually operate the lights.
  • Page 9: Instructions

    OFF and then ON within three (3) seconds. Continue turning OFF and ON until the desired light color mode is reached. See Table 1 for the color mode sequence. Table 1. Jandy Pro Series Nicheless Underwater LED Lights Sequence Sequence Order Color Modes...
  • Page 10: To Reset To The Beginning Of The Color Sequence

    Page 10 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual To Reset to the Beginning of the Color Sequence Begin this procedure with the light turned ON. Turn the light OFF, wait five (5) seconds, then turn ON, the light will return to the beginning of the color cycle (Alpine White).
  • Page 11 ENGLISH Page 11 Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual...
  • Page 12 ON L6L 5W2 CERTIFIED TO CAN/CSA C22.2 NO.89 1.888.647.4004 | www.ZodiacPoolSystems.ca ® ZODIAC is a registered trademark of Zodiac International, S.A.S.U., used under license.All trademarks referenced herein are the property of their respective owners. ©2013 Zodiac Pool Systems, Inc. H0411800 REV A...
