ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver
and rubber mallet

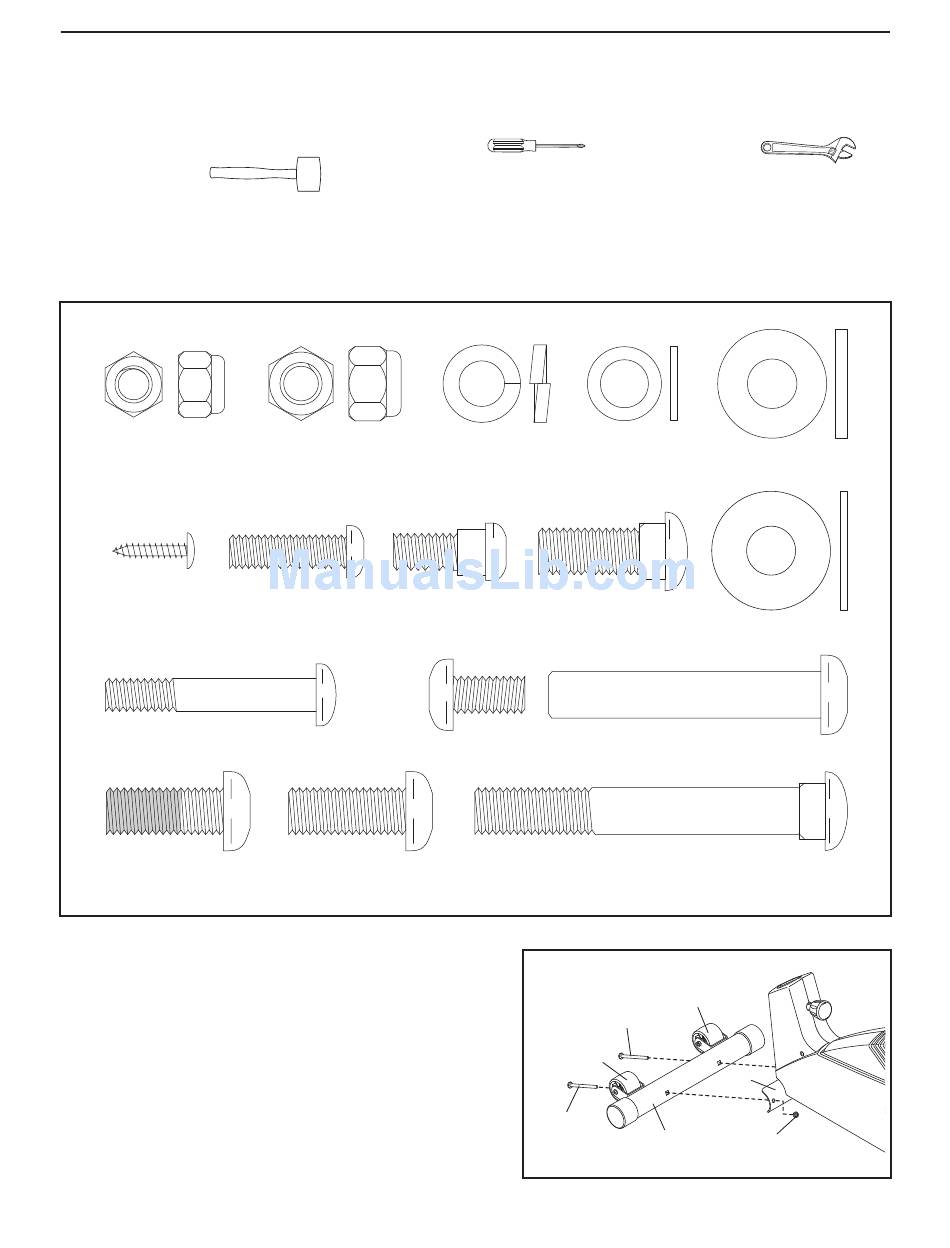

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 26. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon
Locknut (38)–4
M4 x 16mm
Screw (52)–2
Button Screw (7)–1
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
1. Identify the Front Stabiliser (10). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33). Make
sure that the Front Stabiliser is turned so the
Wheels (22) are not touching the floor.
.
M10 Nylon
Locknut (33)–4
M6 x 25mm
M8 x 19mm Shoulder
Screw (56)–2
M10 x 27mm
Button Screw (67)–6
, adjustable spanner
M10 Split
Handlebar
Washer (59)–6
Washer (55)–2
M10 x 27mm
Carriage Bolt (80)–2
M10 Bolt Set (74)–2
M10 x 75mm Carriage Bolt (34)–4
1
34
22
34
5
M10
Washer (78)–2
Spring Bracket
Washer (35)–2
22
1
10
33
,
