INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver and
the jumper wire included with the chest pulse sensor.

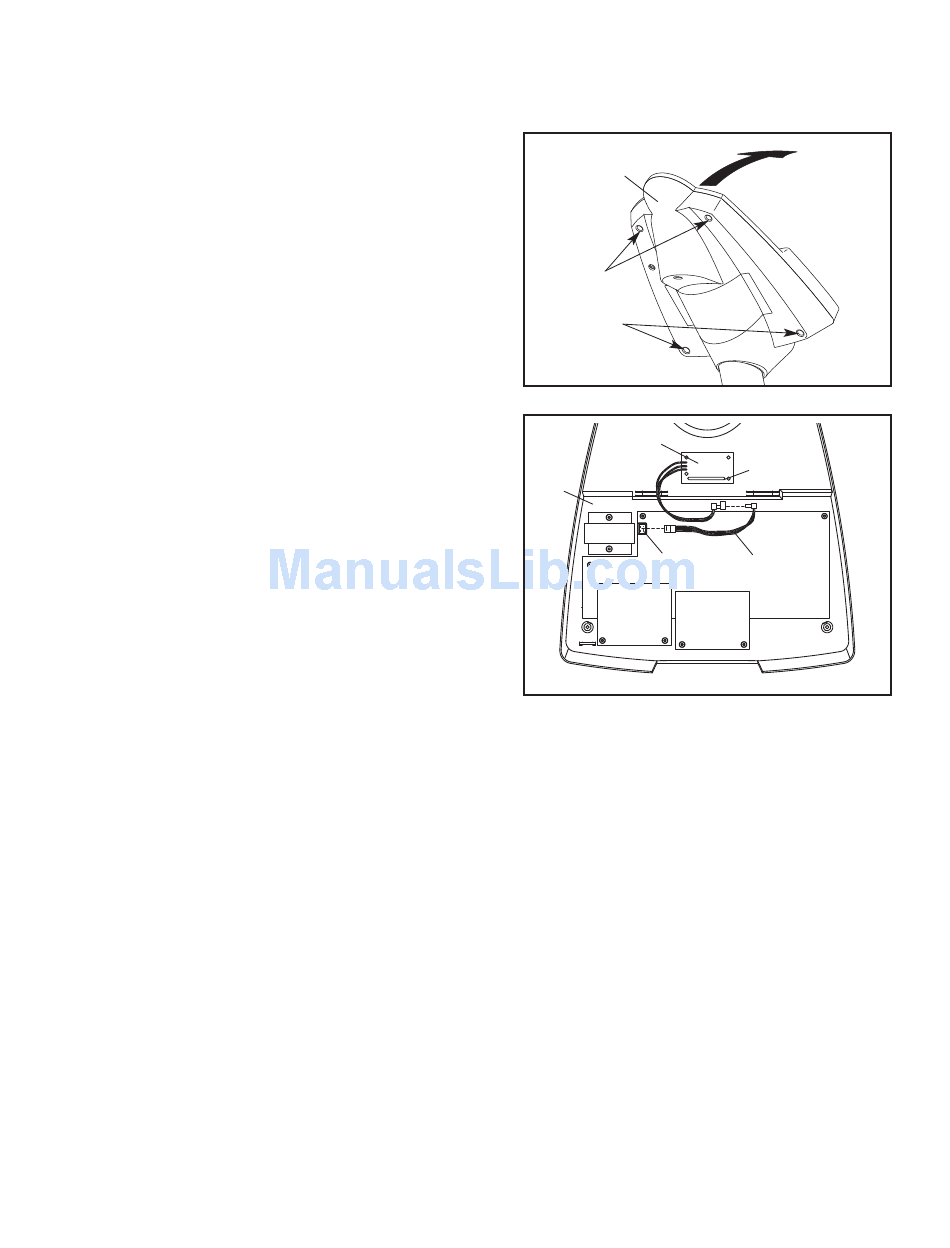

1. Remove the four indicated screws from the back of the
Console (23). Lift off the front of the Console.
2. Plug the jumper wire (A) into the indicated jack on the
Console (23). Connect the other end of the jumper wire
to the wire on the receiver (B). Note: Any other wires
included with the chest pulse sensor can be discarded.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (23) in the indicated location.
See step 1 above. Reattach the front of the Console
(23) with the four screws. Make sure that no wires
are pinched.
1
23
Short
Screws
Long
Screws
2
B
23
9
Lift
Here
Cylinder
A
Jack
