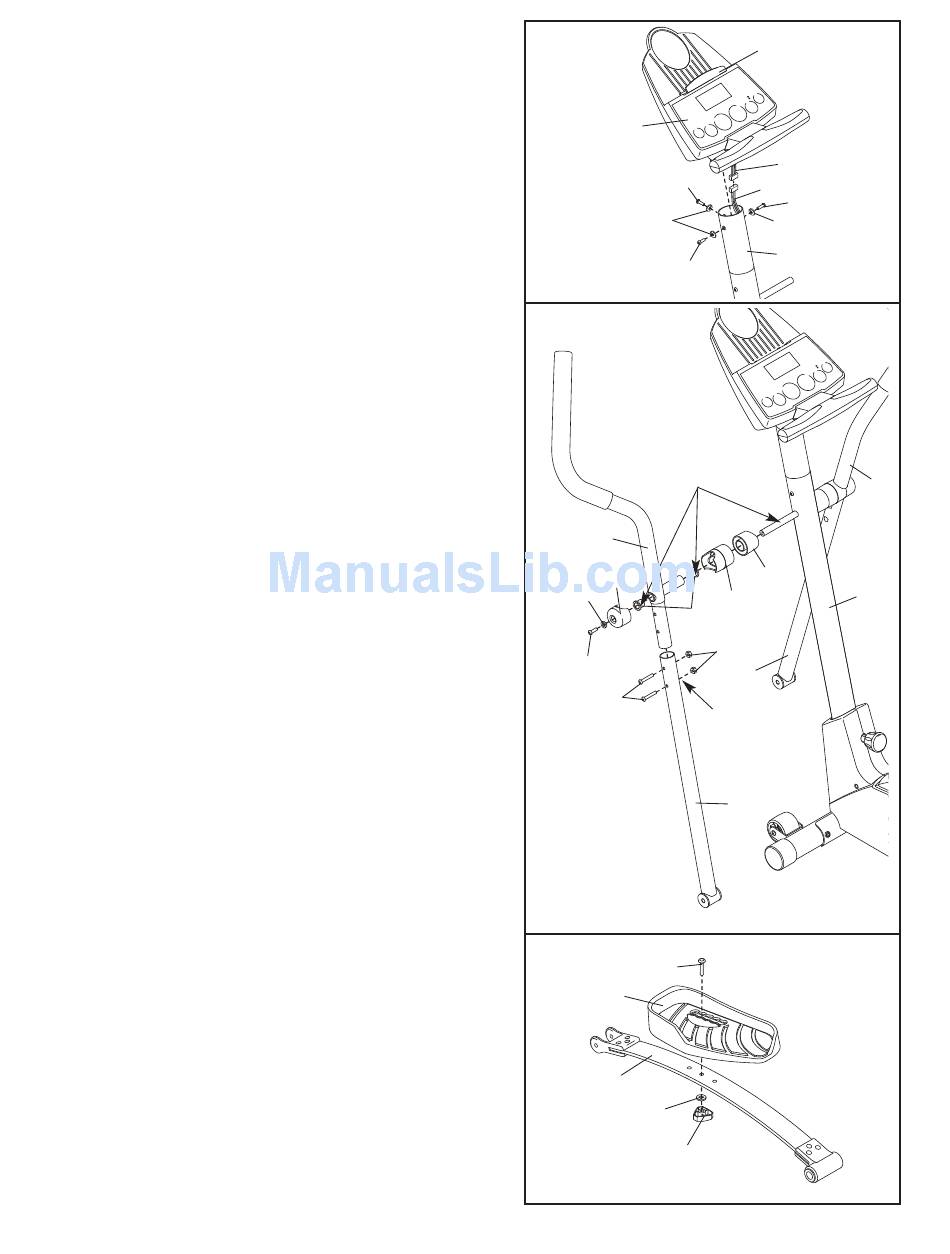

6. Whilst another person holds the Console (23) in the
position shown, connect the wire harness on the
Console to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension (73).
Attach the Console (23) to the Upright Extension (73)
with three M10 x 27mm Button Screws (67) and three
M10 Split Washers (59). Be careful to avoid pinching
the wire harnesses.
Snap the bookrack onto the Console (23) in the indicat-
ed location.
7. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Apply a light coat of the included grease to the left axle
on the Upright (2) and inside of the two Small
Handlebar Bushings (49) in the Left Handlebar (6).
Carefully slide an Upright Spacer (48), a Handlebar
Spacer (47), the Left Handlebar (6), and a Handlebar
Cap (46) onto the left axle on the Upright (2) as shown.
Slide a Handlebar Washer (55) onto an M8 x 19mm
Shoulder Screw (56), and tighten the Shoulder Screw
into the axle.
Assemble the Right Handlebar (8) and the other
Handlebar Leg (5) in the same way.
8. Identify the left Pedal Spring (11), which is marked with
a sticker. Attach the Left Pedal (13) to the left Pedal
Spring with an M10 x 27mm Carriage Bolt (80), an M10
Washer (78), and a Pedal Knob (81) as shown. Note:
The Left Pedal can be attached in several positions
using the five positions in the Left Pedal and the three
holes in the Pedal Spring.
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same hole and in
the same pedal position.
