DETAILED VIEWS

DETAILED VIEWS

Chassis Front View

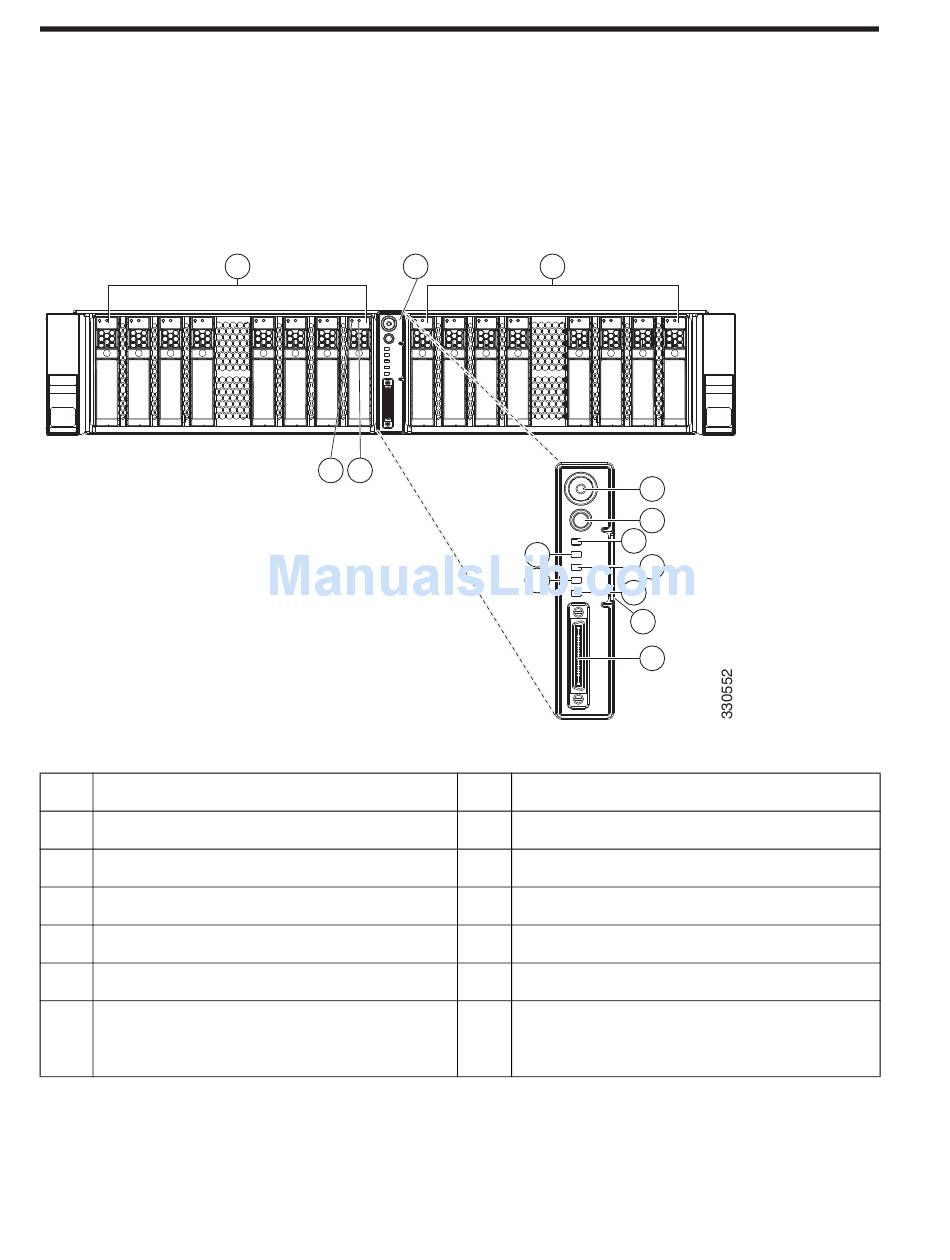

Figure 2
shows the Cisco UCS C260 M2 General-Purpose Rack Server.
Figure 2
Chassis Front View
1
Modular drive bay 1
2
Operator panel
3
Modular drive bay 2
4
Hard drive activity LED
5
Hard drive fault LED
6
Power button/LED
7
Identification button/LED
For more information regarding the KVM cable connection, see
4
1
2
4
5
3
8
9
10
11
12
13
14
8
System status LED
9
Fan status LED
10
Temperature status LED
11
Power supply status LED
12
Network link activity LED
13
Asset tag (serial number)
14
KVM connector (used with KVM cable that
provides two USB, one VGA, and one serial
connector
KVM CABLE on page
