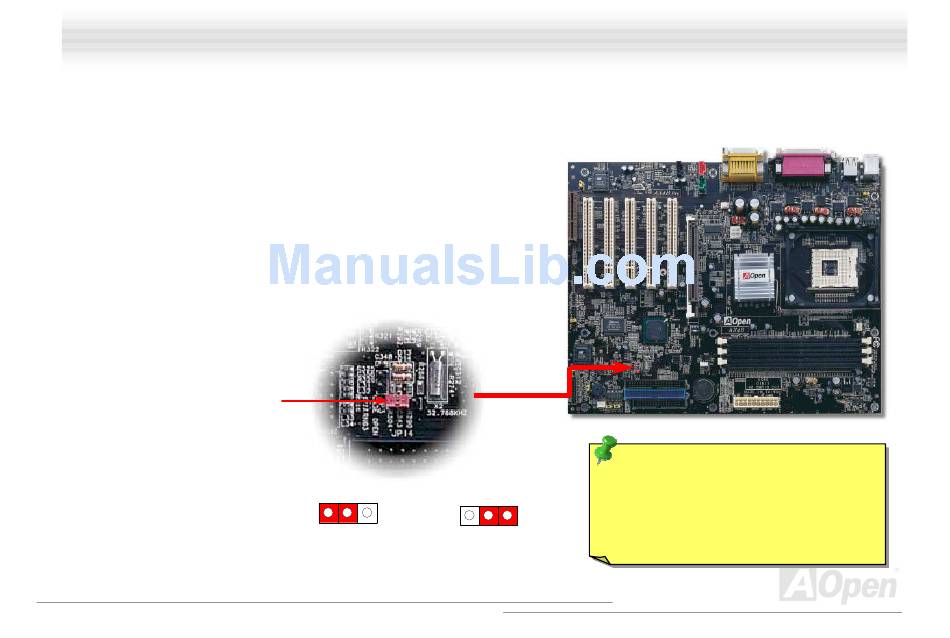

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1.
Turn off the system and unplug the AC power.
2.
Remove ATX power cable from connector PWR2.
3.
Locate JP14 and short pins 2-3 for a few seconds.
4.
Return JP14 to its normal setting by shorting pins 1 & pin2.
5.
Connect ATX power cable back to connector PWR2.
r
o
r
o
S
D
a
t
a
S
D
a
t
a
Pin 1
1
Normal
(default)
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
1
2. Forget password...
3. Troubleshooting...
Clear CMOS
