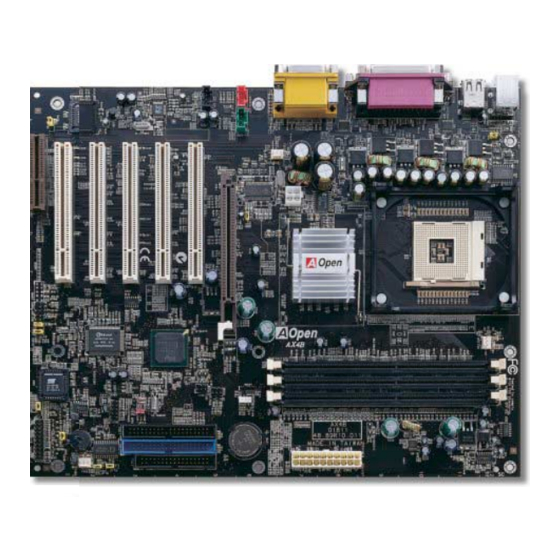

AUX-IN Connector
CD-IN Connector
RealTek ALC650 5.1 AC97 CODEC
S/PDIF Connector
Die Hard BIOS
(Upgrade optional)
JP30 Die Hard BIOS
Select jumper
(Upgrade optional)
CNR Expansion Slot
JP14 CMOS Clear Jumper
Chassis Intrusion Connector
Dr. LED Connector
Front Audio Connector
JP35 ATA/133
Enable/Disable Select Jumper
IrDA Connector
4Mbit Flash ROM
nd
Supports 2
USB Connector
JP2 Jumper (speaker)
Front Panel Connector
JP1 Jumper (Buzzer)
Promise ATA/133 IDE Connector x2
FAN3 Connector
JP15 & 16 Dr. Voice Language
Select Jumper
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
USB Port
COM 1 Port
Connector
MIDI/Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
FAN2 Connector
Resettable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
32-bit PCI Expansion Slot x5
2200
μ
F Low ESR Capacitors
4-pin 12V. ATX Power Connector
AGP 4x Expansion Slot
(for 1.5V AGP card)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
®
®
Intel
Pentium
4 1.4~2.4GHz+ CPU
®
Intel
845 chipset (Brookdale)
CPU Fan Connector with H/W
Monitoring Function
184-pin DIMM Socket x3 supports
PC-200/266 DDR SDRAM
maximum up to 2 GB
WOM Connector
WOL Connector
ATA/66/100 IDE Connector x2
ATX Power Connector
FDD Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen AX4B-133
Summary of Contents for AOpen AX4B-133

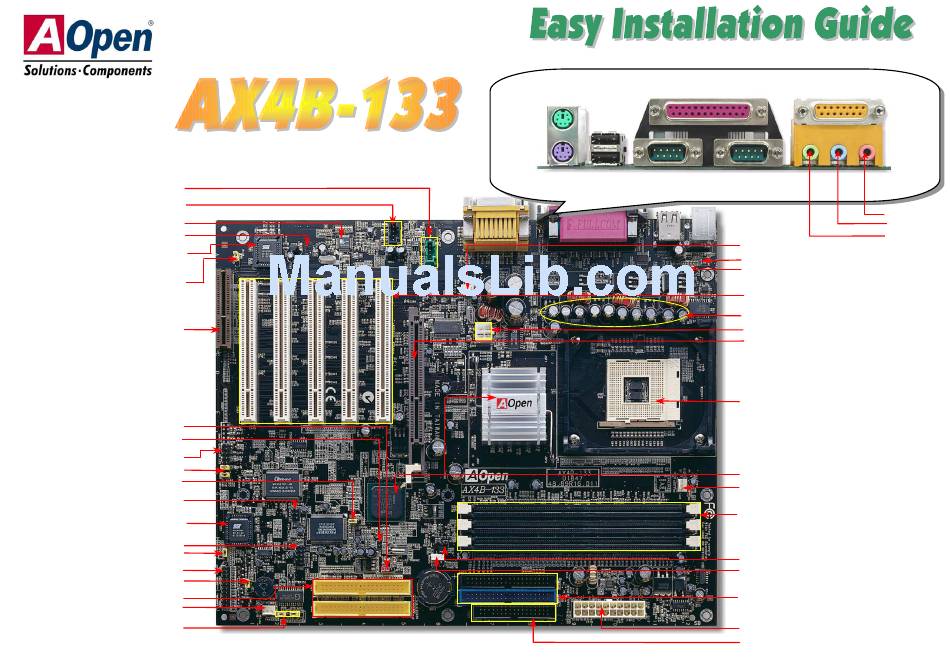

- Page 1 PS/2 Mouse SPP/EPP/ECP Parallel Port MIDI/Game Port Connector PS/2 Keyboard USB Port COM 1 Port COM 2 Port Connector AUX-IN Connector CD-IN Connector MIC-In RealTek ALC650 5.1 AC97 CODEC Line-In S/PDIF Connector Speaker Out FAN2 Connector Die Hard BIOS Resettable Fuse (Upgrade optional) JP28 Keyboard/Mouse Wakeup JP30 Die Hard BIOS...
-
