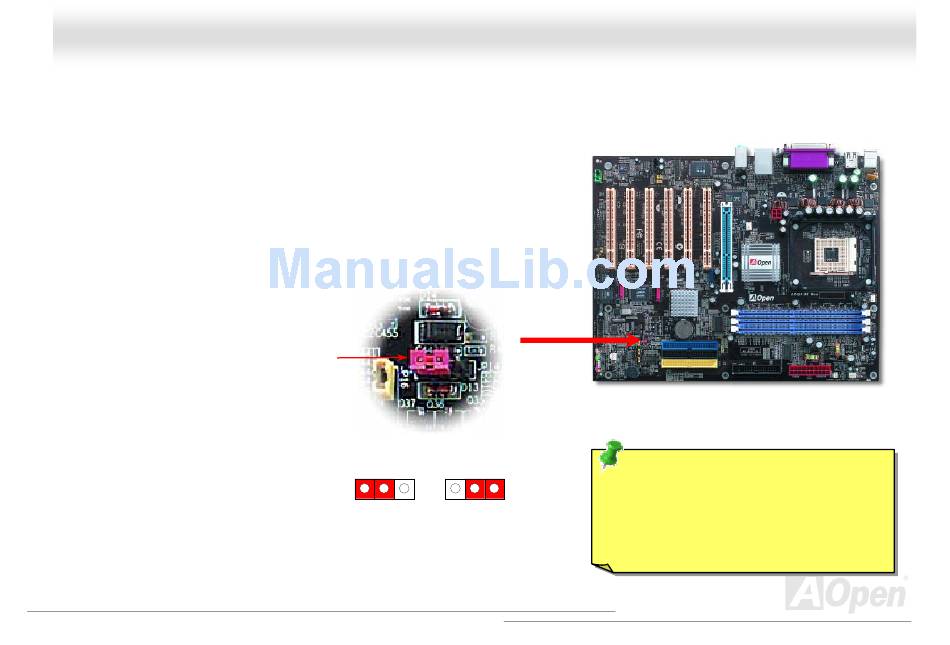

You can clear CMOS to restore system default setting. To clear CMOS, follow the procedure below.
1.
Turn off the system and unplug the AC power.
2.
Remove ATX power cable from connector PWR2.
3.
Locate JP14 and short pins 2-3 for a few seconds.
4.
Return JP14 to its normal setting by shorting pin 1 & pin 2.
5.
Connect ATX power cable back to connector PWR2.
S
D
a
t
a
S
D
a
t
a
Pin 1
1
Normal
(default)
1
Clear CMOS
63
O
n
l
i
n
e
O
n
l
i
n
e
Tip: When should I Clear CMOS?
1. Boot fails because of overclocking...
2. Forget password...
3. Troubleshooting...
