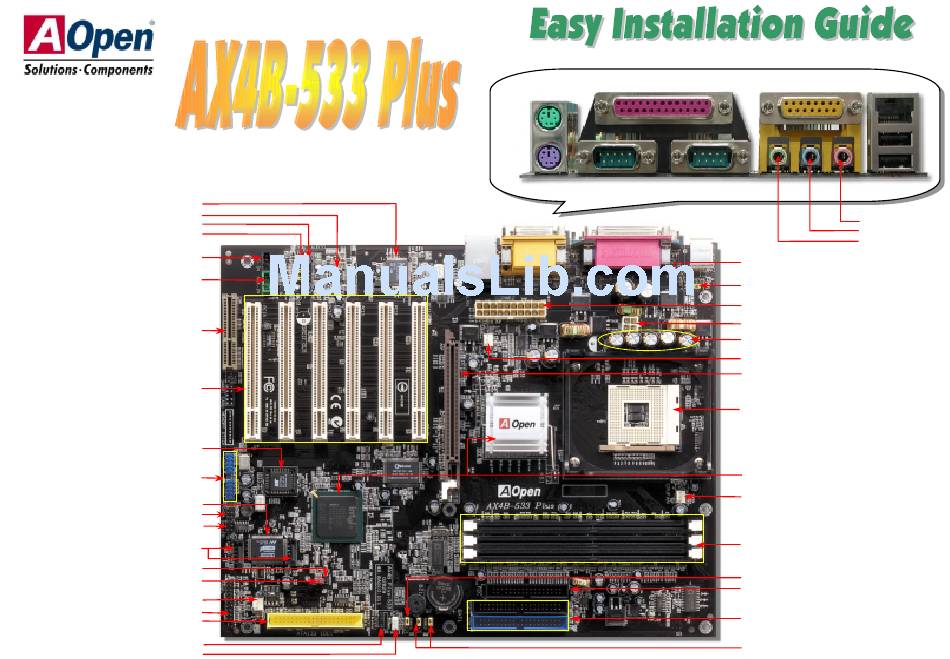

RealTek 8100BL LAN Chip
Onboard AC'97 CODEC
S/PDIF Connector
Front Audio Connector
CD-IN Connector
AUX-IN Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
4MB Flash ROM BIOS
nd
rd
2
and 3
USB Connectors
Serial ATA Chipset
IrDA Connector
Dr. LED Connector
Serial ATA Connector x2
Chassis Intrusion Connector
JP14 CMOS Clear Jumper
FAN3 Connector
Front Panel Connector
ATA/133 Connector x2
WOM Connector
WOL Connector
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
COM 2 Port
COM 1 Port
Connector
MIDI/Game Port
LAN Connector
USB Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
ATX Power Connector
4-pin 12V. ATX Power Connector
3300
μ
F Low ESR Capacitors
FAN2 Connector
AGP 4x Expansion Slot
(for 1.5V AGP card)
478-pin CPU socket with Voltage and
Frequency Auto-detection supporting
®
®
Intel
Pentium
4
®
Intel
845E chipset (Brookdale)
CPU Fan Connector with H/W
Monitoring Function
184-pin DIMM Socket x3 supports
DDR200/266 DDR SDRAM
maximum up to 2 GB
JP2 Speaker Jumper
FDD Connector
ATA/33/66/100 IDE Connector x2
JP15 & JP16 Dr. Voice Language
Select Jumper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX4B-533 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX4B-533 Plus

Summary of Contents for AOpen AX4B-533 Plus

  • Page 1 MIDI/Game Port PS/2 Mouse SPP/EPP/ECP Parallel Port LAN Connector Connector PS/2 Keyboard COM 2 Port USB Port COM 1 Port Connector RealTek 8100BL LAN Chip Onboard AC’97 CODEC MIC-In S/PDIF Connector Line-In Front Audio Connector Speaker Out CD-IN Connector Resettable Fuse JP28 Keyboard/Mouse Wakeup AUX-IN Connector Enable/Disable Jumper...

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package Setting CPU Core Voltage This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected and the range is from 1.10V to 1.85V.

  • Page 4: S/Pdif Connector

    6. Support 2 and 3 USB2.0 Ports 8. S/PDIF Connector This motherboard provides six USB2.0 ports to connect USB devices such as mouse, S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You quality through optical fiber and allows you to enjoy digital audio instead of analog.
  • Page 5 12. Power-on and Load BIOS Setup 10. JP15 and JP16 Dr. Voice Select Jumpers Dr. VoiceII is a great feature of AX4B-533 Plus, which can identify the problems you may After you finish jumper settings and connect correct cables, power on and enter the encounter in the operating system.

  • Page 6: Installing Serial Ata Driver

    SCSI or RAID driver” appears. Download the new version of BIOS package file from AOpen official web site. (ex: http://www.aopen.com) When the “Windows XP Setup” window is generated, press “S” to Specify an Additional Device(s) Unzip the download BIOS package (ex: WAX4B533P102.ZIP) with WinZip...

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX4B-533 PLUS is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
