(AOpen reserves the right to revise all
the specifications
and information
contained in this documentation which
is subject to change without notice.)

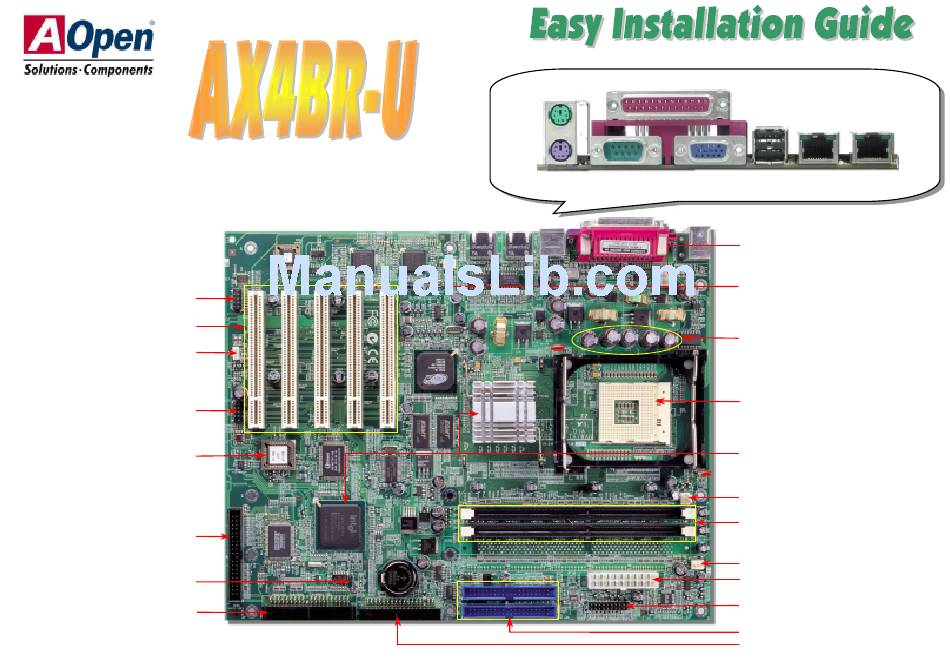

COM2 Connector
32-bit PCI Expansion Slot x5
WOL Connector
nd
2
USB Connector
4Mbit Flash ROM
RAID IDE1 Connector
JP14 CMOS Clear Jumper
RAID IDE2 Connector
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
PS/2 Keyboard
COM 1 Port
VGA Port
Connector
USB Ports
LAN Ports
4-pin 12V. ATX Power Connector
Resetable Fuse
SYSFAN2 Connector
2200
μ
F Low ESR Capacitors
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
®
®
Intel
Pentium
4 1.4~2.8GHz+ CPU
®
Intel
845E chipset
CPUFAN Connector
184-pin DIMM Socket x2 supports
PC-200/266 DDR SDRAM
maximum up to 2 GB
SYSFAN1 Connector
ATX Power Connector
Front Panel Connector
ATA/33/66/100 IDE Connector x2
FDD Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX4BR-U and is the answer not in the manual?

Questions and answers

Summary of Contents for AOpen AX4BR-U

  • Page 1 SPP/EPP/ECP Parallel Port PS/2 Mouse Connector (AOpen reserves the right to revise all the specifications and information contained in this documentation which is subject to change without notice.) PS/2 Keyboard COM 1 Port USB Ports LAN Ports VGA Port Connector 4-pin 12V.
  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.
  • Page 3: Installing Processor

    3. Installing Processor 5. Installing DIMM Module This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard has two 184-pin DDR DIMM sockets that allow you to install DDR200 developed by Intel. Other forms of CPU package are impossible to be fitted in. DDR266 memory up to 2GB.
  • Page 4: Connecting Com2 Connector

    7. Support 2 USB Port 9. Connecting WOL This motherboard provides four connectors to connect USB devices, such as mouse, To use Wake On LAN function, you must have a network card with chipset that supports keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can this feature, and connect a cable from LAN card to motherboard WOL connector.
  • Page 5: Stby Led

    The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1, VGA port, Printer, USB, and STBY LED is AOpen’s considerate design that we aim at providing you friendly system LAN ports. The view angle of drawing shown here is from the back panel of the housing.
  • Page 6: Model Name And Bios Version

    (POST screen). For example: 845E chipset. You can install the Intel INF Update Utility from the Bonus Pack CD auto-run menu to eliminate the “?” marks. AX4BR-U R1.02 Sep. 01. 2002 AX4BR is model name of motherboard; R1.02 is BIOS version...
  • Page 7: Part Number And Serial Number

    Part Number and Serial Number The Part Number and Serial number are printed on bar code label. You can find this bar If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem. code label on the outside packing or on component side of PCB. For example: Start Turn off the power and unplug the AC power cable, then remove all of the addon cards and cables, including VGA, IDE, FDD, COM1,...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://english.aopen.com.tw/tech/report/default.htm...
